Wieland Electric 38.703.0553.6 Continuity 5 mm Spring-loaded connector Blue 100 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Continuity
Connection
Spring-loaded connector
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Number (Package size 100 pc(s))
Total (€ 1.15 / piece)
€ 114.99
incl. VAT
14-day return policy included
Highlights & Details
THROUGH TERMINAL-WKF2.5/M / R BLUE
- WKF2,5/M / R BLAU
Technical specifications
- Packaging type
Piece
- Product type
Continuity
- Connection
Spring-loaded connector
- Cross section (flexible) (min.)
0.13 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.13 mm²
- Cross section (inflexible) (max.)
4 mm²
- Clamp width
5 mm
- No. of rows
1
- Pins per row
2
- Factory colour
Blue
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Manufacturer part #
38.703.0553.6
- Content
100 pc(s)
- Type
WKF2,5/M / R BLAU
- Width
5 mm
- Flammability rating
V2
- Connector colour
Blue
- Insulation material
Thermoplastic
Direct mounting
Blue
800 V
-40-55 °C
V2
TRUE
Spring clamp connection
Spring clamp connection
1
2
0.13-4 mm²
0.13-2.5 mm²
Thermoplastic
24 A
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3289030 Wieland Electric 38.703.0553.6 Continuity 5 mm Spring-loaded connector Blue 100 pc(s) Piece
Description

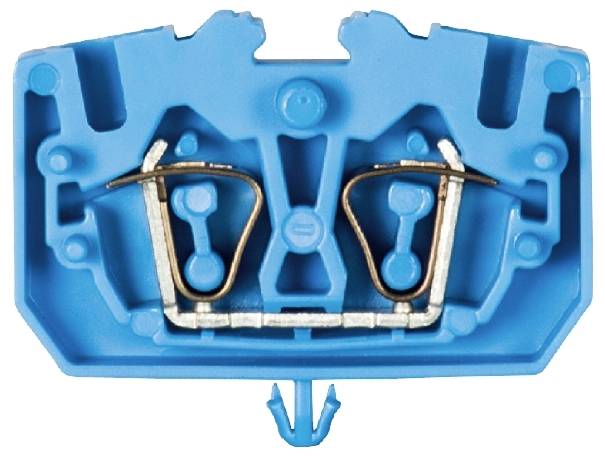

Through terminal with spring-cage connection for direct mounting
Nominal cross-section: 2.5 mm²
Installation width 5 mm
Colour : blue
This text is machine translated.
Nominal cross-section: 2.5 mm²
Installation width 5 mm
Colour : blue
This text is machine translated.
