Wieland Electric 56.404.9855.0 Terminal Screws 50 pc(s)
EAN:
Part number:
Item no:
Product type
Terminal
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
26 A
Number (Package size 50 pc(s))
Total (€ 5.00 / piece)
€ 249.99
incl. VAT
14-day return policy included
Highlights & Details
INSTALLATION TERMINAL WKI 4 D-D-SL / V0
- WKI 4 D-D-SL /V0
Technical specifications
- Product type
Terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
6 mm²
- Number of pins
3
- Nominal current
26 A
- Nominal current - rounded value
26 A
- Nominal voltage
400 V
- Manufacturer part #
56.404.9855.0
- Content
50 pc(s)
- Type
WKI 4 D-D-SL /V0
- Width
6 mm
- Flammability rating
V0
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
400 V
-40-55 °C
V0
TRUE
Screw connection
Screw connection
3
Grey
TRUE
FALSE
FALSE
0.5-6 mm²
0.5-4 mm²
Thermoplastic
26 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3271794 Wieland Electric 56.404.9855.0 Terminal Screws 50 pc(s)
Description

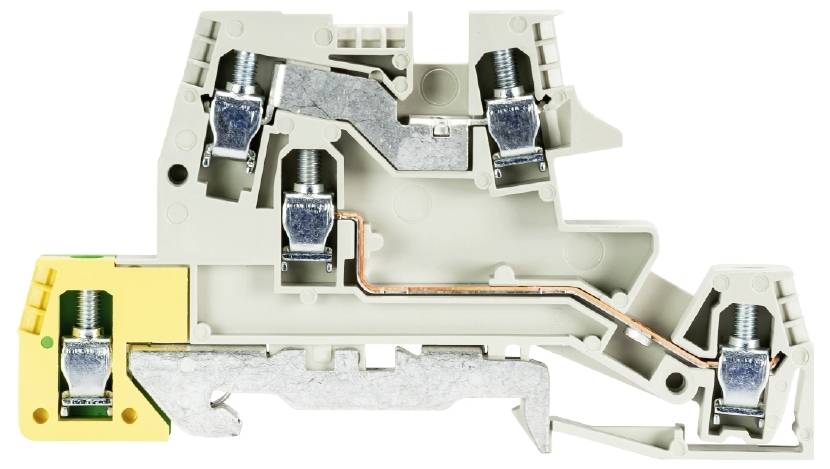

Installation terminal with screw terminals for mounting on TS 35
Nominal cross-section: 4 mm²
Installation width 6 mm.
This text is machine translated.
Nominal cross-section: 4 mm²
Installation width 6 mm.
This text is machine translated.
