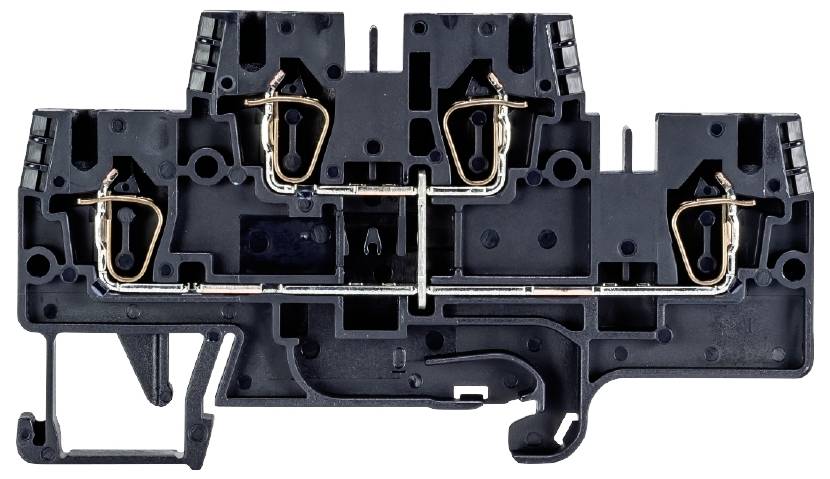

Wieland Electric 56.703.6955.1 Industrial terminal block 5 mm Spring-loaded connector Black 100 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Industrial terminal block
Connection
Spring-loaded connector
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Number (Package size 100 pc(s))
Total (€ 5.05 / piece)
€ 505.00
incl. VAT
14-day return policy included
Highlights & Details
FLOOR TERMINAL WKFN 2.5 E/VB/35
- WKFN 2,5 E/VB/35
Technical specifications
- Packaging type
Piece
- Product type
Industrial terminal block
- Features
built-in jumper
- Connection
Spring-loaded connector
- Cross section (flexible) (min.)
0.13 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.13 mm²
- Cross section (inflexible) (max.)
4 mm²
- Clamp width
5 mm
- No. of rows
2
- Pins per row
2
- Factory colour
Black
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
500 V
- Manufacturer part #
56.703.6955.1
- Content
100 pc(s)
- Type
WKFN 2,5 E/VB/35
- Width
5 mm
- Flammability rating
V0
- Connector colour
Black
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Black
500 V
-40-55 °C
V0
TRUE
Spring clamp connection
Spring clamp connection
2
2
TRUE
0.13-4 mm²
0.13-2.5 mm²
Thermoplastic
24 A
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274363 Wieland Electric 56.703.6955.1 Industrial terminal block 5 mm Spring-loaded connector Black 100 pc(s) Piece
Description
Floor terminal with spring clamp for mounting on TS 35
Nominal cross-section: 2.5 mm²
Installation width 5 mm
Colour, black
This text is machine translated.
Nominal cross-section: 2.5 mm²
Installation width 5 mm
Colour, black
This text is machine translated.
