Wieland Electric 56.706.0055.6 Continuity 8 mm Spring-loaded connector Blue 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Continuity
Connection
Spring-loaded connector
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Total (€ 2.40 / piece)
€ 119.99
incl. VAT
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Continuity
- Features
Explosion-proof
- Connection
Spring-loaded connector
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
10 mm²
- Clamp width
8 mm
- No. of rows
1
- Pins per row
2
- Factory colour
Blue
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
800 V
- Manufacturer part #
56.706.0055.6
- Content
50 pc(s)
- Type
WKFN 6 / 35 BLAU
- Width
8 mm
- Flammability rating
UL 94 V0
- Connector colour
Blue
- Insulation material
Thermoplastic
DIN rail (top hat rail)/G-rail TH35/G32
Blue
800 V
V0
TRUE
Spring clamp connection
Spring clamp connection
1
2
0.2-10 mm²
0.2-6 mm²
Thermoplastic
41 A
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274545 Wieland Electric 56.706.0055.6 Continuity 8 mm Spring-loaded connector Blue 50 pc(s) Piece
Description

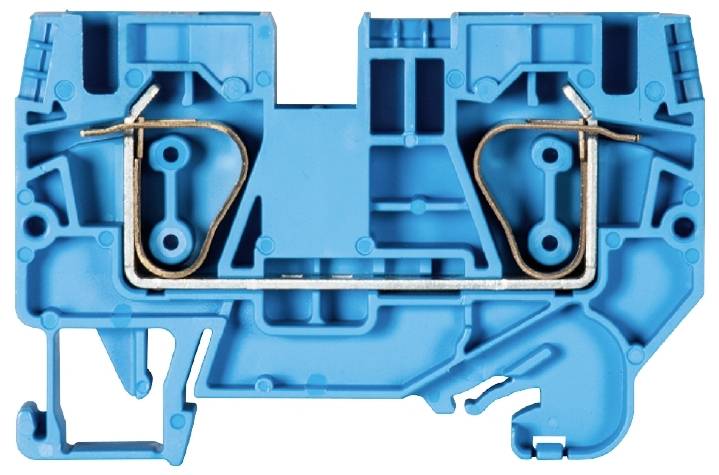

Through terminal block with spring-cage connection for mounting on TS 35 / TS 32
Nominal cross-section: 6 mm²
Installation width 8 mm.
Colour : blue
This text is machine translated.
Nominal cross-section: 6 mm²
Installation width 8 mm.
Colour : blue
This text is machine translated.
