Wieland Electric 57.504.2055.0 Disconnect terminal 6 mm Screws Grey 100 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Disconnect terminal
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Number (Package size 100 pc(s))
Total (€ 4.09 / piece)
€ 409.00
incl. VAT
14-day return policy included
Highlights & Details
BLADE TERMINAL-WK 4 TKM/U / V0
- WK 4 TKM/U /V0
Technical specifications
- Packaging type
Piece
- Product type
Disconnect terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
6 mm²
- Clamp width
6 mm
- No. of rows
1
- Pins per row
2
- Factory colour
Grey
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Nominal voltage
800 V
- Manufacturer part #
57.504.2055.0
- Content
100 pc(s)
- Type
WK 4 TKM/U /V0
- Flammability rating
V0
- Connector colour
Grey
- Insulation material
Thermoplastic
DIN rail (top hat rail)/G-rail TH35/G32
Grey
800 V
-40-55 °C
V0
TRUE
Screw connection
Screw connection
Swivelling
None
FALSE
1
2
0.5-6 mm²
0.5-4 mm²
Thermoplastic
20 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274647 Wieland Electric 57.504.2055.0 Disconnect terminal 6 mm Screws Grey 100 pc(s) Piece
Description

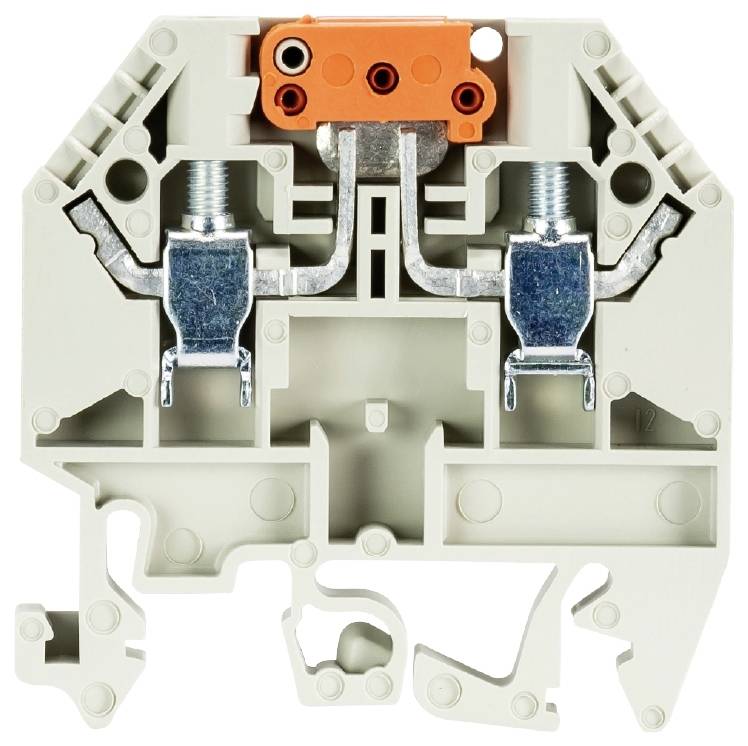

Disconnect terminal with screw terminal for mounting on TS 35 and TS 32
Nominal cross-section 4 mm²
Installation width 6 mm.
Colour Grey
This text is machine translated.
Nominal cross-section 4 mm²
Installation width 6 mm.
Colour Grey
This text is machine translated.
