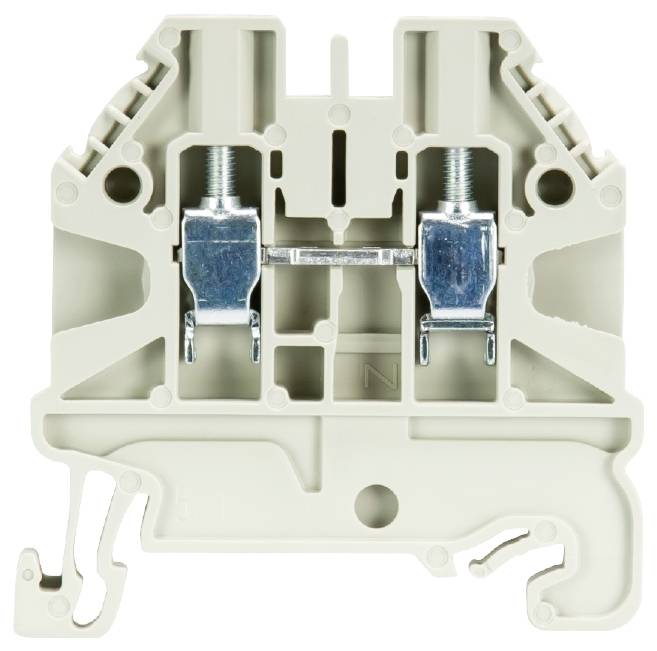

Wieland Electric 58.503.0055.0 Continuity 5 mm Screws Grey 100 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
Total (€ 1.20 / piece)
€ 119.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Continuity
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- Clamp width
5 mm
- No. of rows
1
- Pins per row
2
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
1000 V
- Manufacturer part #
58.503.0055.0
- Content
100 pc(s)
- Type
WT 2,5
- Dim
(W x H) 5 mm x 48 mm
- Width
5 mm
- Height
48 mm
- Flammability rating
UL 94 V0
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Grey
5 mm
48 mm
1000 V
-25-70 °C
V0
TRUE
Screw connection
Screw connection
1
2
FALSE
0.14-4 mm²
0.5-2.5 mm²
0.14-4 mm²
Thermoplastic
24 A
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274601 Wieland Electric 58.503.0055.0 Continuity 5 mm Screws Grey 100 pc(s)
Description
Through terminal block with screw terminals for mounting on TS 35
Nominal cross-section: 2.5 mm²
Installation width 5 mm
Colour: grey
This text is machine translated.
Nominal cross-section: 2.5 mm²
Installation width 5 mm
Colour: grey
This text is machine translated.
