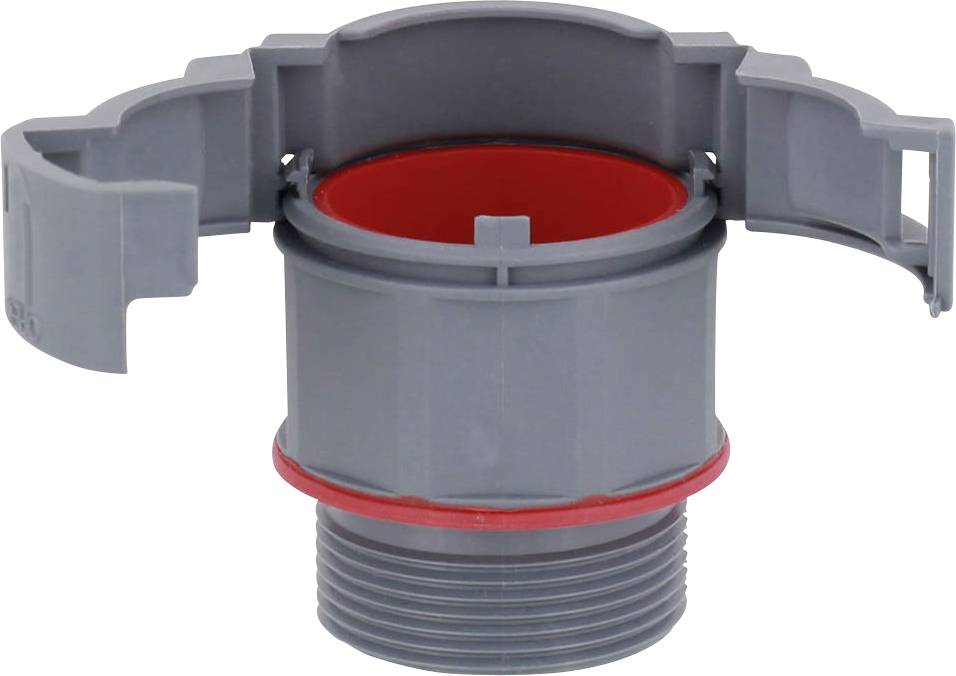

Wiska 10106858 EBFS-48-50-BG Fasteners Grey M50 x 1.5 Straight 5 pc(s)
Product type
Fasteners
Content
5 pc(s)
Material
Polyamide
Thermoplastic elastomer
Factory colour
Grey
Angled
Straight
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 5 pc(s))
Total (€ 8.80 / piece)
€ 49.99
-12 %
€ 43.99
incl. VAT
14-day return policy included
Highlights & Details
Conduit fitting, straight, plastic
Our service for you

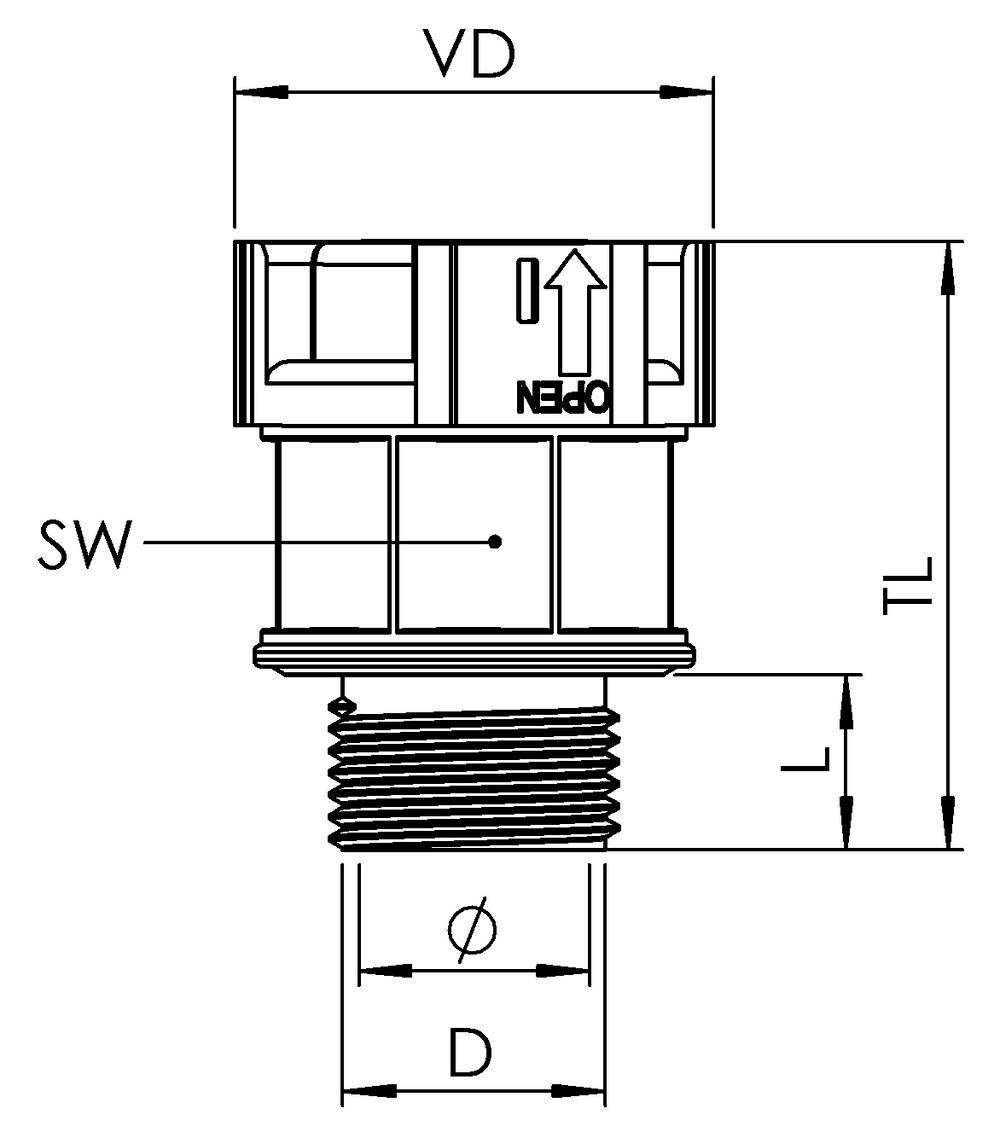

Technical specifications
- Thread length: 16 mm
- Protection class: IP68
- Connection type: Plug connection
- Nominal diameter 48 mm
- Product type
Fasteners
- Content
5 pc(s)
- Factory colour
Grey
- Material
Polyamide
Thermoplastic elastomer
- Angled
Straight
- External thread
M50 x 1.5
- Max. temperature
+100 °C
- Min. temperature
-40 °C
- Length
56.8 mm
- Manufacturer part #
10106858
- RoHS-compliant
Yes
- Type
EBFS-48-50-BG
Documents & Downloads
Datasheet
Datasheet 2479362 Wiska 10106858 EBFS-48-50-BG Fasteners Grey M50 x 1.5 Straight 5 pc(s)
Description
The BRACE® plastic threaded hose connection does not require a special cutting tool for the corrugated pipe thanks to the large integrated seal. The integrated, captive TPU seal is visible from the outside at all times, eliminating the need for additional assembly and control. The innovative 360° snap closure ensures an integrated strain relief.
This text is machine translated.
This text is machine translated.
