Wiska 10106861 EBFS-07-12-BK Fasteners Black M12 x 1.5 Straight 50 pc(s)
Product type
Fasteners
Content
50 pc(s)
Material
Polyamide
Thermoplastic elastomer
Conduit features
incl. sealing
Dim
8.5
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 1.44 / piece)
€ 85.99
-16 %
€ 71.99
incl. VAT
14-day return policy included
Highlights & Details

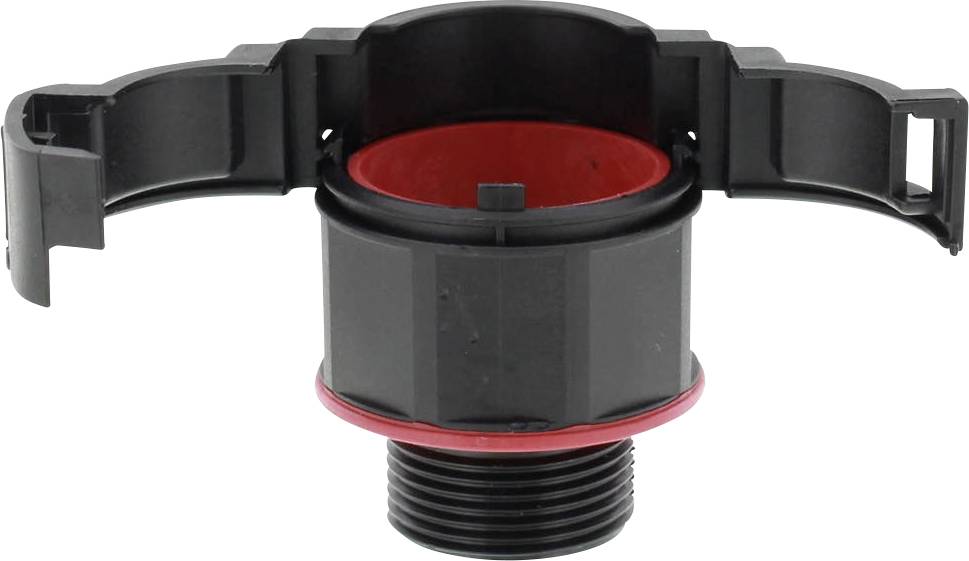

Conduit fitting, straight, plastic
Our service for you
Technical specifications
- Thread length: 8.5 mm
- Protection class: IP68
- Connection type: Plug connection
- Nominal diameter 7 mm
- Product type
Fasteners
- Content
50 pc(s)
- Dim
8.5
- Factory colour
Black
- Material
Polyamide
Thermoplastic elastomer
- Angled
Straight
- Conduit features
incl. sealing
- Suitable for diameters
7 mm
- External thread
M12 x 1.5
- Max. temperature
+100 °C
- Min. temperature
-40 °C
- Length
35 mm
- Manufacturer part #
10106861
- Dimensions
8.5 mm
- RoHS-compliant
Yes
- Type
EBFS-07-12-BK
Documents & Downloads
Datasheet
Datasheet 2479364 Wiska 10106861 EBFS-07-12-BK Fasteners Black M12 x 1.5 Straight 50 pc(s)
Description
The BRACE® plastic threaded hose connection does not require a special cutting tool for the corrugated pipe thanks to the large integrated seal. The integrated, captive TPU seal is visible from the outside at all times, eliminating the need for additional assembly and control. The innovative 360° snap closure ensures an integrated strain relief.
