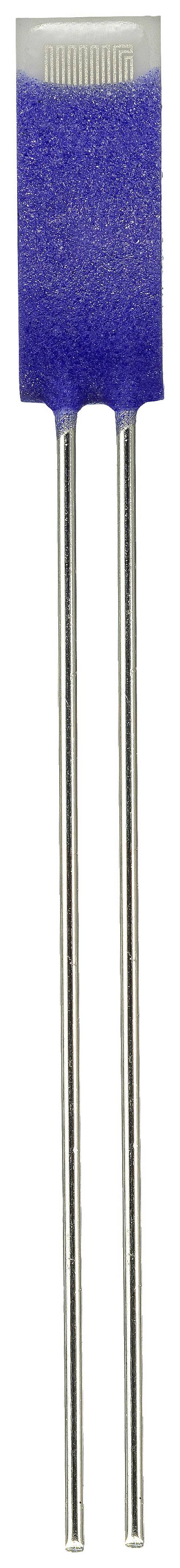

Yageo Nexensos M 416 PT100 Platinum temperature sensor -70 up to +500 °C 100 Ω 3850 ppm/K Radial lead
EAN:
Part number:
Item no:
Model
PT100
Temperature reading range (max.)
+500 °C
Connector
Solder pins
Type
Radial lead
Resistance
100 Ω
Datasheet (PDF)
72 Piece(s) (Only while stocks last)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.03
5
7% = € 0.27
€ 3.76
10
9% = € 0.37
€ 3.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.03 / piece)
€
Highlights & Details
Platinum temperature sensors, wired
- Excellent long-term stability and minimum deviation
- High accuracy and interchangeability
- High vibration and shock resistance
- Optimized for welding, soldering and crimping
- The ideal choice for your large-volume applications
Technical specifications
- DIN EN 60751
- Temperature: Short-term up to +550 °C.
- Measuring current 0.3 to 1 mA
- Packaging: Plastic bag
- Self-heating 0.4 K/mW at 0 °C.
- Assembly and connection technology: Welding, crimping, brazing
- Connecting wires: NiPt sheathed wire
- Tensile strength of connecting wires: ≥ 9 N.
- Type
M 416
- Model
PT100
- Temperature reading range (min.)
-70 °C
- Temperature reading range (max.)
+500 °C
- Temperature reading range
-70 up to +500 °C
- Connector
Solder pins
- Orientation (connectors)
Radial
- Type
Radial lead
- Operating voltage
- Accuracy class
B (F0.30)
- Resistance
100 Ω
- Temperature coefficient
3850 ppm/K
- Length
13.9 mm
- Width
1.5 mm
- Height
0.9 mm
- Dim
(L x W x H) 13.9 x 1.5 x 0.9 mm
- RoHS-compliant
- Product type
Platinum temperature sensor
Documents & Downloads
Datasheet
Datasheet 2482881 Yageo Nexensos M 416 PT100 Platinum temperature sensor -70 up to +500 °C 100 Ω 3850 ppm/K Radial lead
Description
This wired platinum temperature sensor is typically used in automotive applications, domestic appliances, air-conditioning and heating technology, process industry and medical technology.
This text is machine translated.
This text is machine translated.
Features
- With connection wire 10mm
