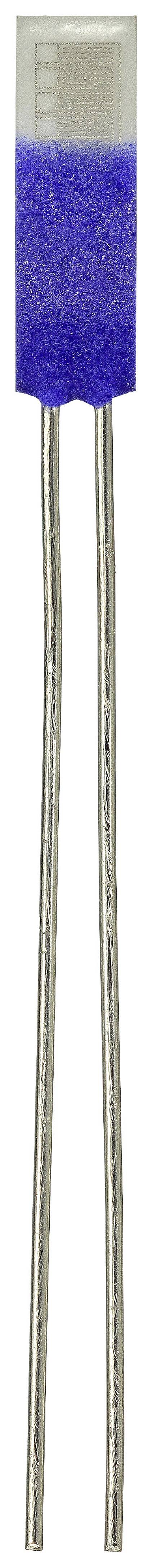

Yageo Nexensos 32208727 M 310 PT1000 Platinum temperature sensor -50 up to +300 °C 1000 Ω 3850 ppm/K Radial lead
EAN:
Part number:
Item no:
Model
PT1000
Temperature reading range (max.)
+300 °C
Connector
Solder pins
Type
Radial lead
Resistance
1000 Ω
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.55
5
6% = € 0.46
€ 7.09
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.55 / piece)
€ 7.55
plus VAT.
Highlights & Details
Platinum temperature sensors, wired
- Slim design for narrow mounting environments
- Excellent long-term stability and minimum deviation
- High accuracy and interchangeability
- High vibration and shock resistance
- Optimized for welding, soldering and crimping
Technical specifications
- DIN EN 60751
- Measurement current 0.1 to 0.3 mA
- Packaging: Blister tape
- Self-heating 0.4 K/mW at 0 °C.
- Assembly and connection technology: Welding, crimping, brazing
- Connecting wires: NiPt sheathed wire
- Tensile strength of connecting wires: ≥ 7 N.
- Type
M 310
- Model
PT1000
- Temperature reading range (min.)
-50 °C
- Temperature reading range (max.)
+300 °C
- Temperature reading range
-50 up to +300 °C
- Connector
Solder pins
- Orientation (connectors)
Radial
- Cable length
10 mm
- Type
Radial lead
- Accuracy class
A (F0.15)
- Resistance
1000 Ω
- Temperature coefficient
3850 ppm/K
- Length
13 mm
- Width
1.0 mm
- Height
0.8 mm
- Dim
(L x W x H) 13 x 1.0 x 0.8 mm
- Product type
Platinum temperature sensor
Documents & Downloads
Datasheet
Datasheet 2482856 Yageo Nexensos 32208727 M 310 PT1000 Platinum temperature sensor -50 up to +300 °C 1000 Ω 3850 ppm/K Radial lead
User & Safety Instructions
User & Safety Instructions 2482856 Yageo Nexensos 32208727 M 310 PT1000 Platinum temperature sensor -50 up to +300 °C 1000 Ω 3850 ppm/K Radial lead
Description
This wired platinum temperature sensor is typically used in automotive applications, domestic appliances, air-conditioning and heating technology, process industry and medical technology.
This text is machine translated.
This text is machine translated.
Features
- With connection wire 10mm
