Ziehl MINIPAN 300 DC 1 mV - 500 V/DC / 1 mA - 1 A

Electronic display showing the number '5040' in red digits on a device called Minipan 300, with three blue control buttons on the right.

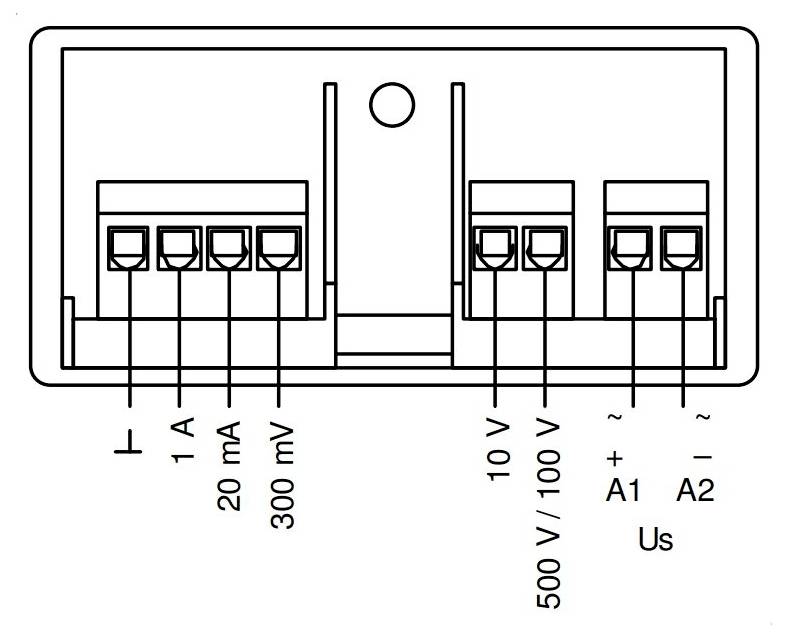

'Diagram of an electrical device showing terminals for connecting inputs and outputs, with labels for 1 A, 20 mA, 300 mV, 10 V, 500 V/100 V, and Us.'

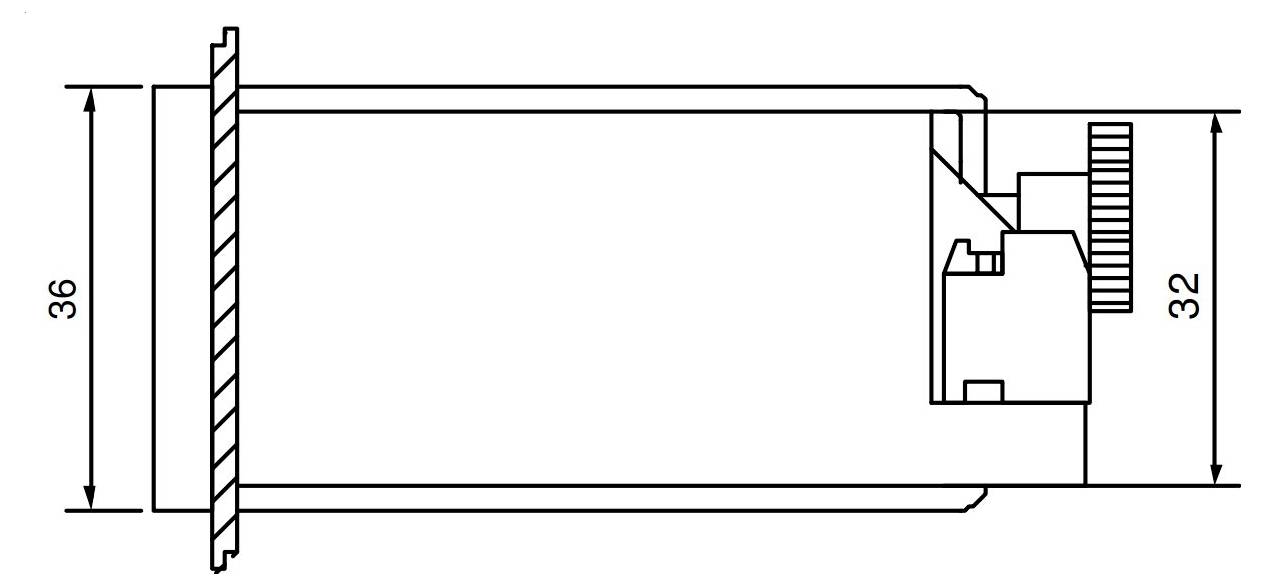

A technical diagram showing a side view of a mechanical part with dimensions labeled as 36 and 32, featuring gears and cylindrical elements.

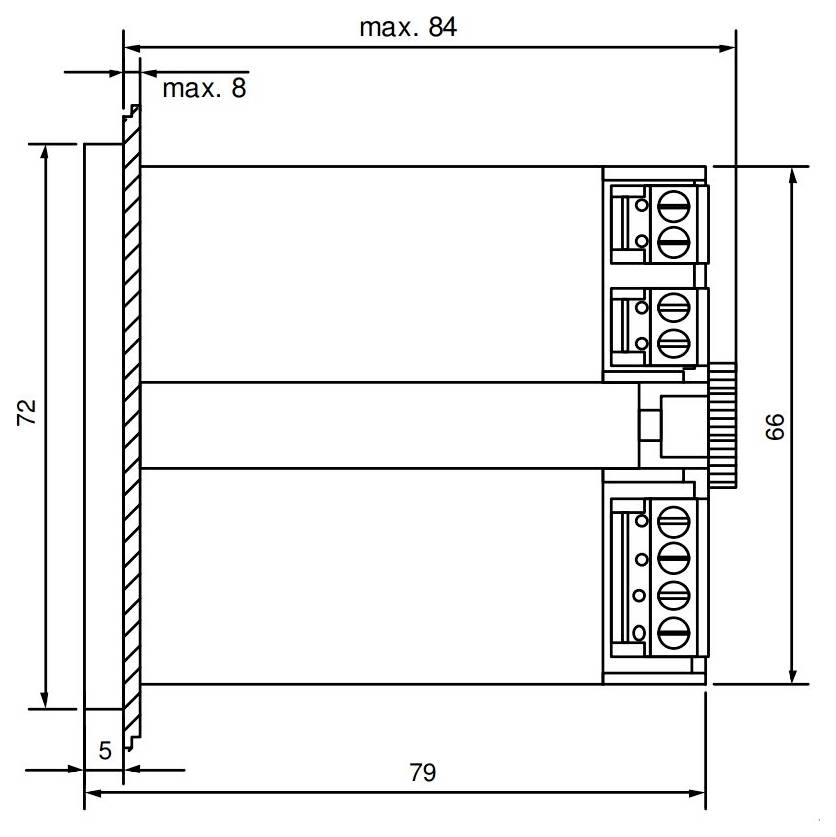

Technical drawing of an electrical component, showing dimensions with labels such as 'max. 84' and 'max. 8' on top, and '72', '79', '5', '66' on the sides and bottom.
1/4
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 179.99 / piece)
€ 179.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Digital Meter Installation MINIPAN 300 DC

  • Digital Meter Installation for V / A / DC

Technical specifications

Reading type

DC voltage

DC current

Type

MINIPAN 300 DC

Display technology

LED

IP30

Recess width

72 mm

Display (counts)

9999

Recess height

36 mm

Dim

(W x H x D) 72 x 36 x 79 mm

Weight

120 g

Max. operating voltage

240 V DC/AC

Min. operating voltage

24 V DC/AC

Width

72 mm

Height

36 mm

Interfaces

none

Interfaces

Plug-in

Digit height

14 mm

Depth

79 mm

Digits

9999

Display (details)

LED

Assembly dimensions

33 x 68 mm

Power supply (details)

24 - 240 V/AC/DC

Display range

-1999 to +9999

Reading range

1 mV - 500 V/DC / 1 mA - 1 A

Documents & Downloads

Datasheet

Datasheet 120291 Ziehl MINIPAN 300 DC 1 mV - 500 V/DC / 1 mA - 1 A

User & Safety Instructions

User & Safety Instructions 120291 Ziehl MINIPAN 300 DC 1 mV - 500 V/DC / 1 mA - 1 A

Description

Digital measuring instrument for measuring installation of direct currents and voltages.

Features

  • Display of measurement values -1999 bis 9999
  • Integrated power supply AC/DC 24-240 V
  • Simple programming with 3 keys
  • Storage of MIN-/MAX-values
  • Connection clamps can be plugged
  • Switch panel installation housing 36 x 72 mm.

Scope of delivery

  • Sticker with 40 different measuring units
  • User manual.
