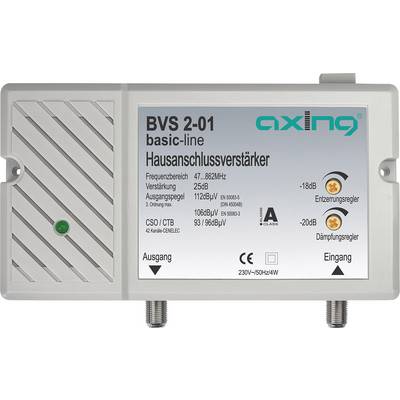

Axing BVS 2 -01 Cable TV amplifier 25 dB
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 47.05 / piece)
€ 47.05
plus VAT.
Highlights & Details
Axing BVS 2-01 BK-amplifier with F-connections
- 25 dB TV-amplification
- Fit for class A
Technical specifications
- Product type
Cable TV amplifier
- Noise factor
≤ 7 dB
- Output level
98 dBµV
- Adjustable attentuation
20 dB
- Adjustable EQ
18 dB
- Max. frequency
862 MHz
- Min. frequency
47 MHz
- Passive return channel
5 - 30 MHz
- Amplification
25 dB
- Frequency range
47 - 862 MHz
- Gain
25 dB
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 277975 Axing BVS 2 -01 Cable TV amplifier 25 dB
User & Safety Instructions
User & Safety Instructions 277975 Axing BVS 2 -01 Cable TV amplifier 25 dB
Description
Compact, interference radiation-secure amplifiers for the immediate installation according to BK house transfer point For the connection of single and multi-family houses at BK systems
Features
- Max. output voltages: Interference products 3rd order at 60 dB KMA-112 dBµV
- Interference products 2nd order at 60 dB IMA-103 dBµV
- Interference products according to CSO/CTB 93 dBµV/99 dBµV.
