Buy 2USB 2U-449535 PG socket incl. USB charging port, Child safety, VDE IP20 Creamy white

Electrical socket with integrated USB-A and USB-C ports, suitable for simultaneous device charging and power supply.

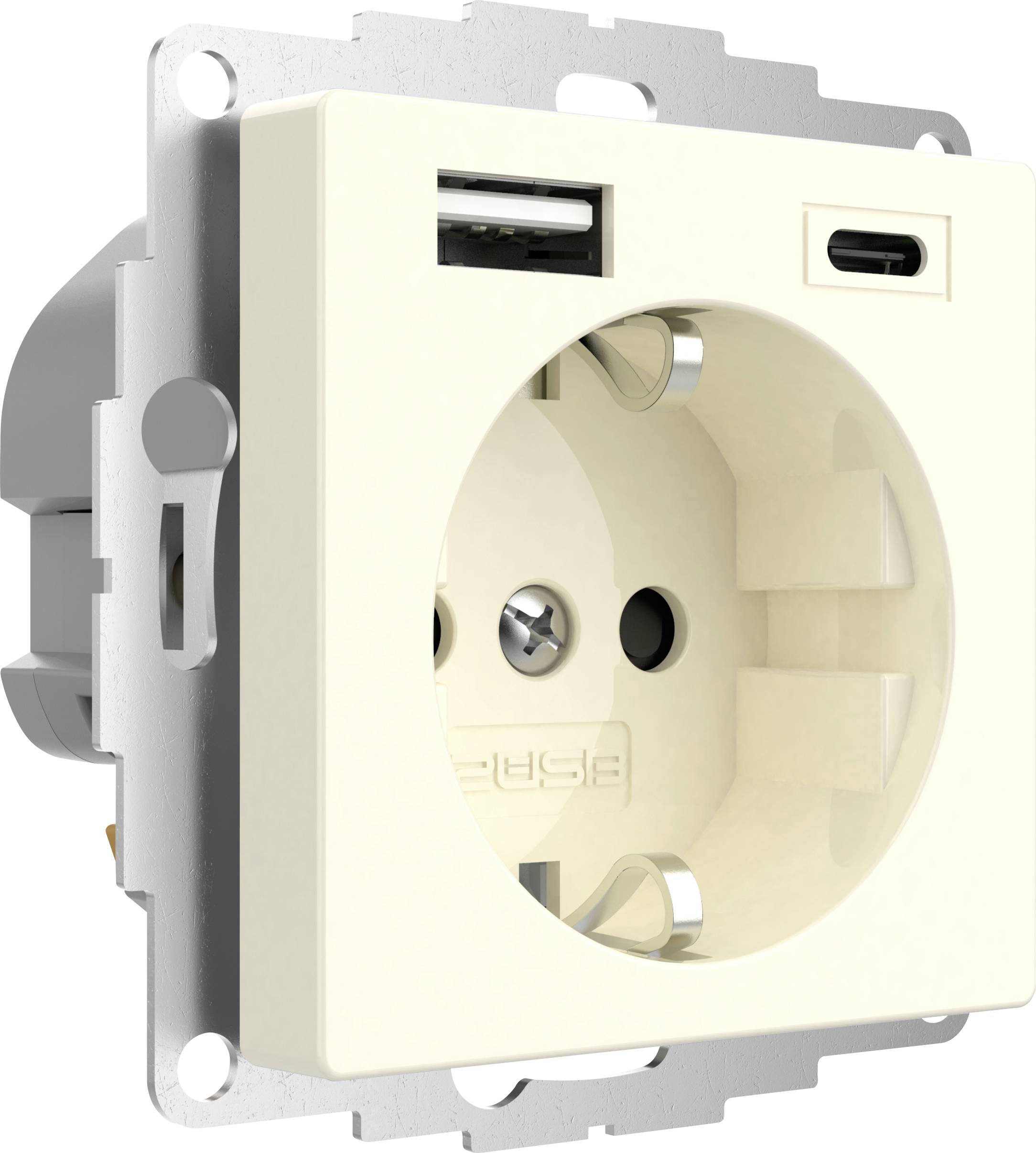

'Ivory-coloured socket with USB-A and USB-C ports, suitable for charging electronic devices.'

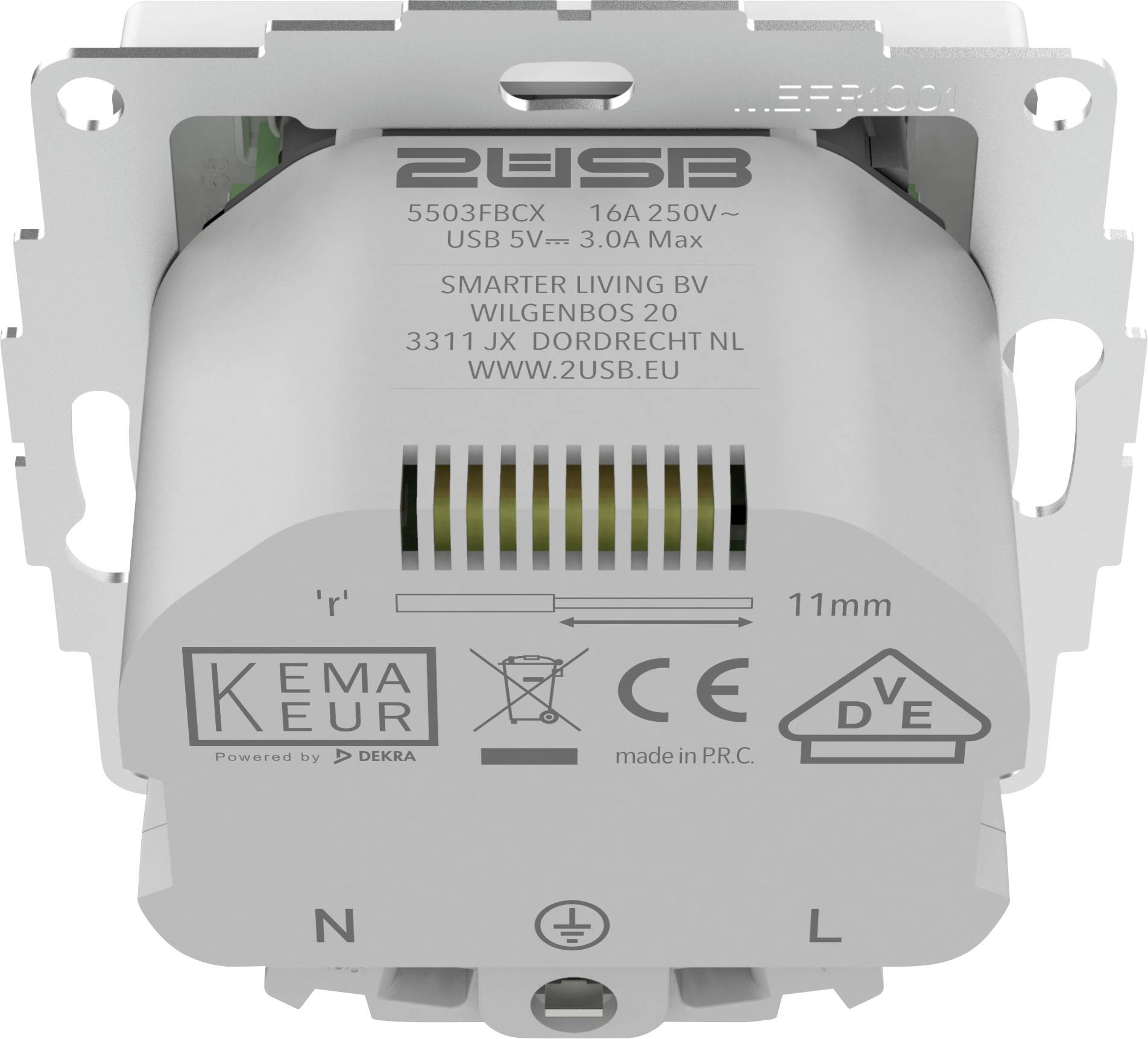

Front view of an electrical switch with USB charging port. Technical specifications and certification symbols are visible.

Socket with USB and USB-C ports, beige, wall-mounted.

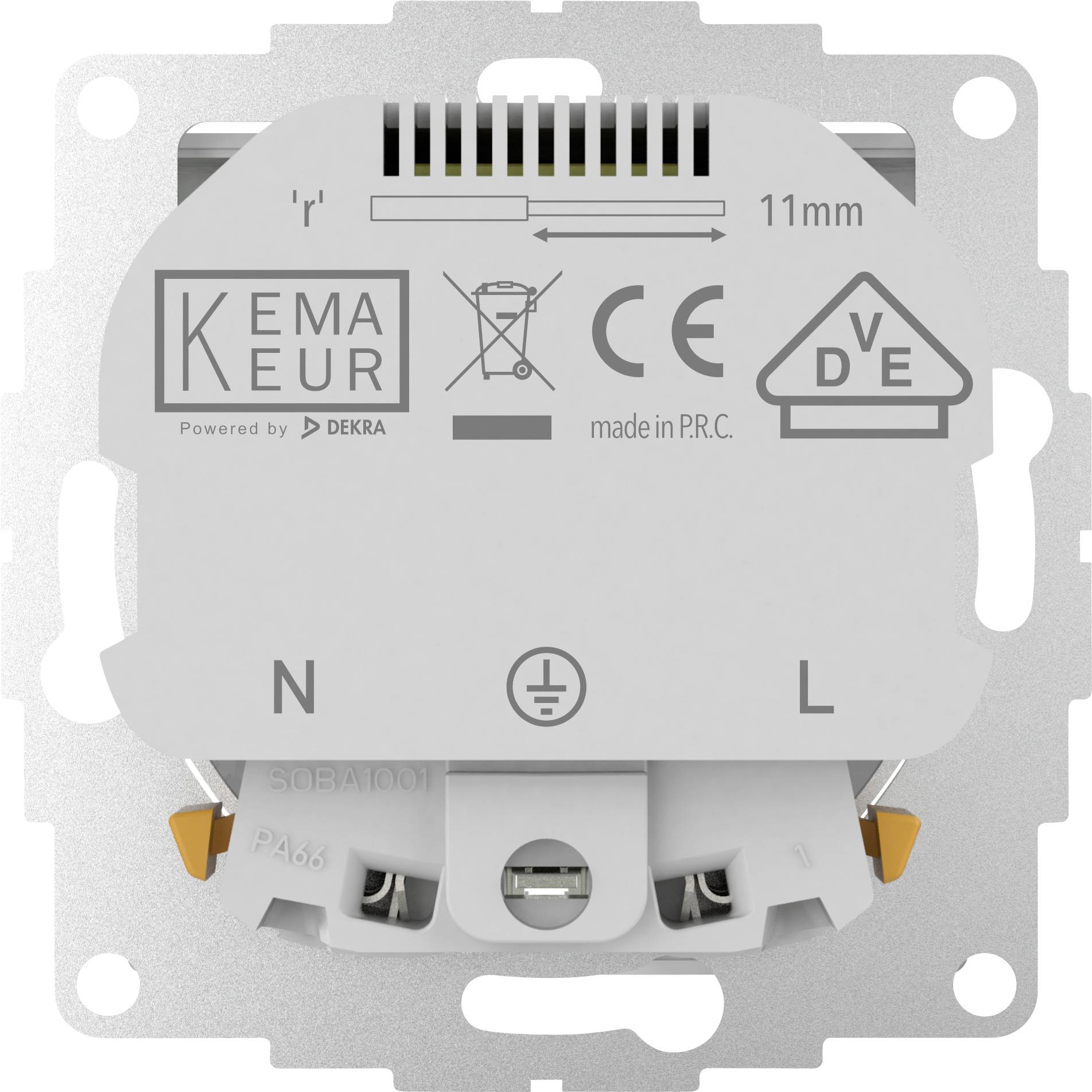

The dimmer switch, marked with CE and VDE certifications, shows connection terminals N and L.

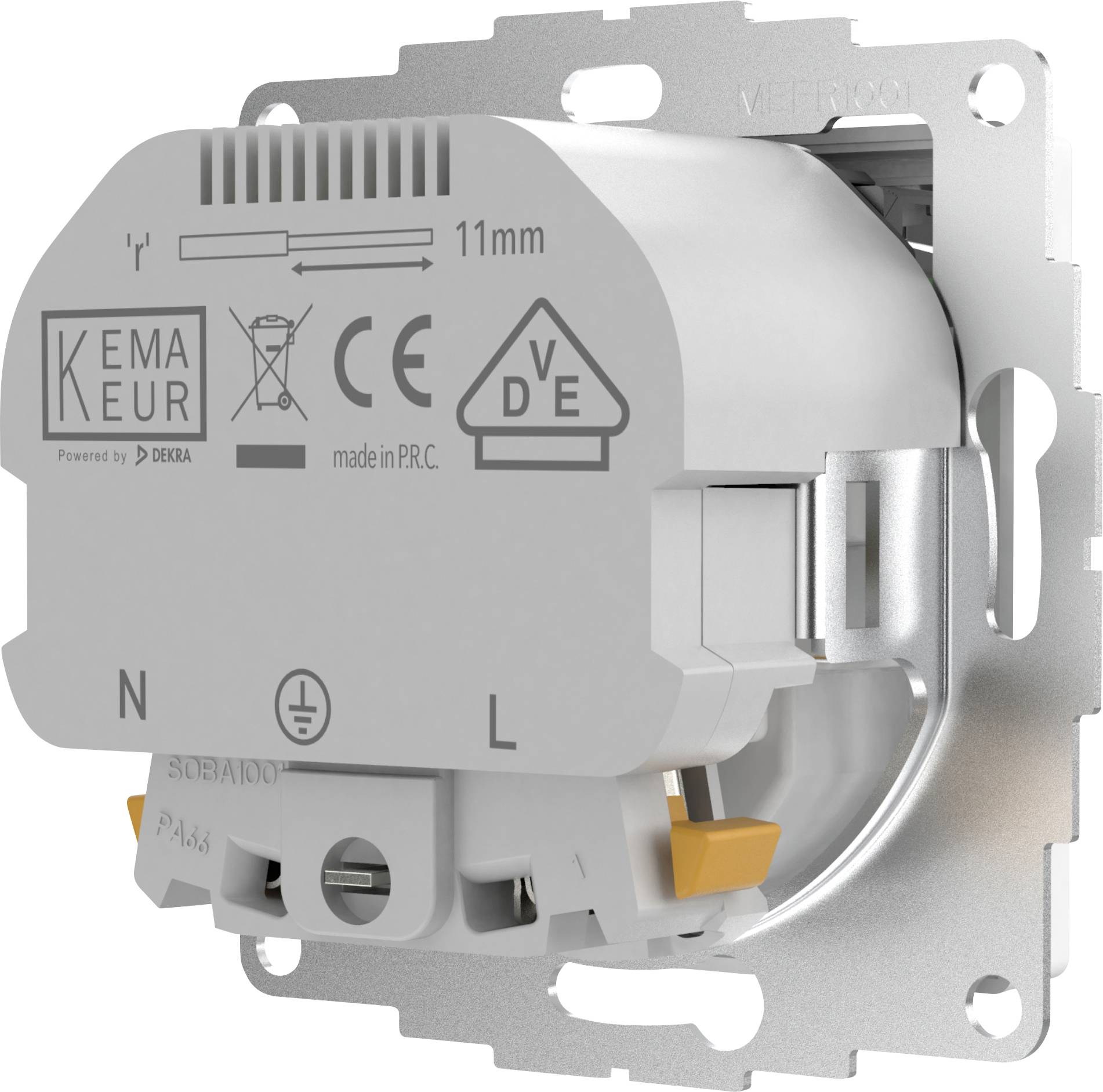

Electrical switch with 'KEMA KEUR' labelling, CE mark and connections for neutral wire (N) and live wire (L), mountable.

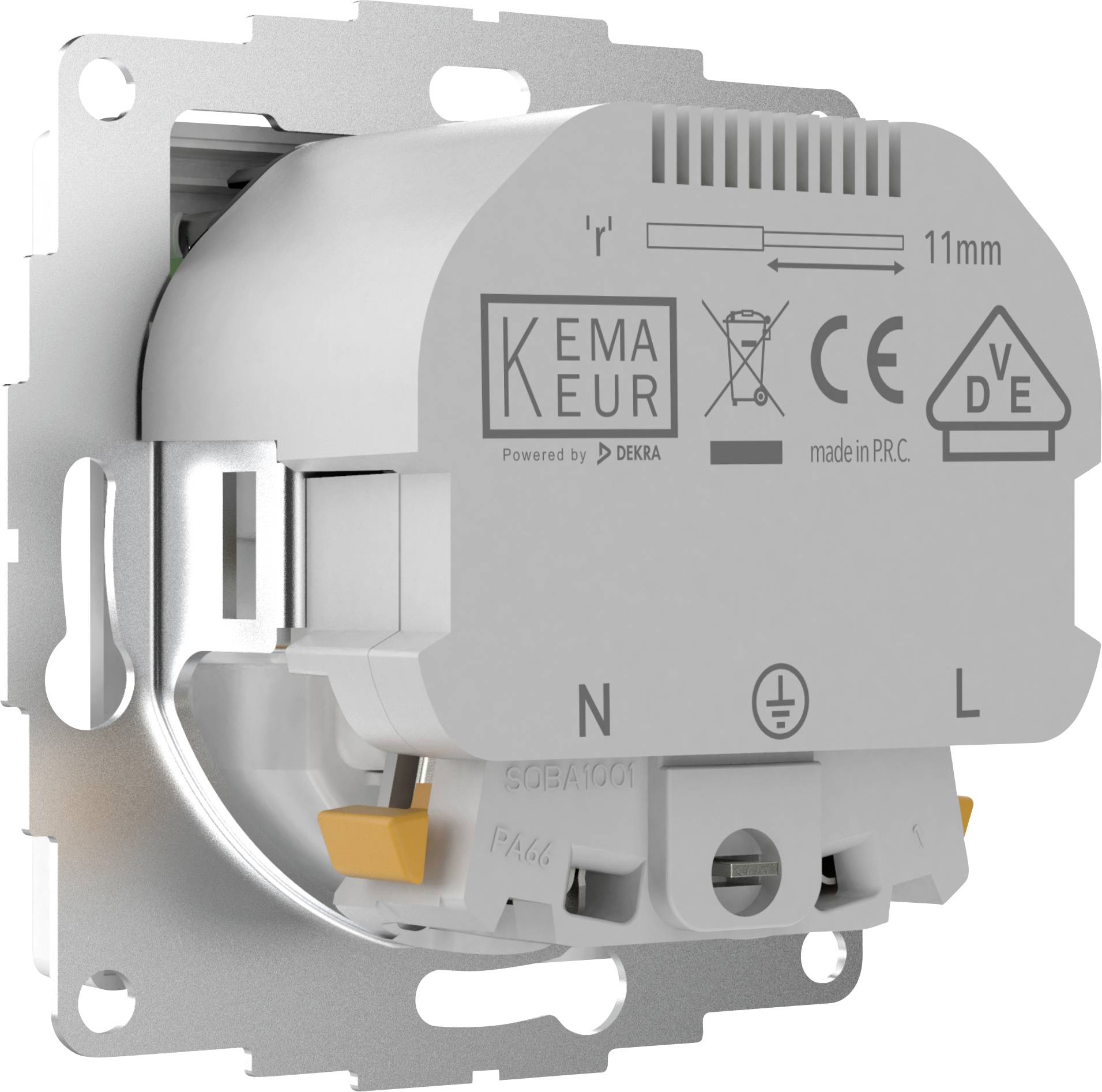

Metal switch with CE and DEKRA certification. Label shows 'KEMA KEUR', 11 mm. Power connections are marked with 'N' and 'L'.

1/7

Datasheet (PDF)

Dispatches on Wed, 23 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 47.05 / piece)

€ 47.05

plus VAT.

Report legal concerns

Highlights & Details

2USB inCharge 2USB

USB-C and USB charging socket
VDE-certified
Only 32 mm flat
With intelligent charging management (up to 3A, 15W)

Technical specifications

Standby consumption less than 0.70 mW

Product type: PG socket

Light bulb features: incl. USB charging port
Child safety
VDE

Outlets: 1

Nominal voltage: 230 V

Nominal current: 16 A

Mounting type: Flush mount

Mounting depth: 32 mm

Factory colour: Creamy white

: IP20

Dim: (L x W x H) 71 x 71 x 45 mm

Length: 71 mm

Width: 71 mm

Height: 45 mm

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 2337153 2USB 2U-449535 PG socket incl. USB charging port, Child safety, VDE IP20 Creamy white

Description

Like all 2USB 2USB products, the inCharge PRO 15W is equipped with the latest version of chargeMAX technology. ChargeMax provides intelligent and efficient charging, the charging protocol of the connected device is detected dynamically. This guarantees efficient and optimized charging, regardless of which brand the device belongs to (Samsung, Apple, Huawei etc.). In addition to the integrated USB charger, the inCharge PER 15W is a completely normal 16A 250VAC socket with increased touch protection. You can thus use powerful devices (alternating current, e.g. washing machine, hair dryer) in parallel with 2 devices to be charged (direct current, e.g. mobile phone, tablet).

The coverage of the inCharge PER 15W is 55x55mm. Thanks to these features, it can be perfectly combined with the various design framework programs of third-party manufacturers. Whether Gira, Jung, Hager-Berker, Merten or Busch-Jäger ... the 2USB 2USB
PRO 15W is compatible with almost all switching programs as a universal solution.

Furthermore, the low installation depth of only 32mm is unique. This socket fits into any European standard flush-mounted socket from 40mm. The installation and installation is just as simple as with a conventional socket without charger and is regulated within minutes.

This text is machine translated.
