Connectors & CablesConnectorsTelecom & IT ConnectorsUSB Connectors

2x USB 2.0 type A RJ45 socket, mount 1310-1028-04 M22 1310-1028-04 encitech Content: 1 pc(s)

A blue USB extension cable with two USB ports and protective cap. Increases the reach of USB connections.

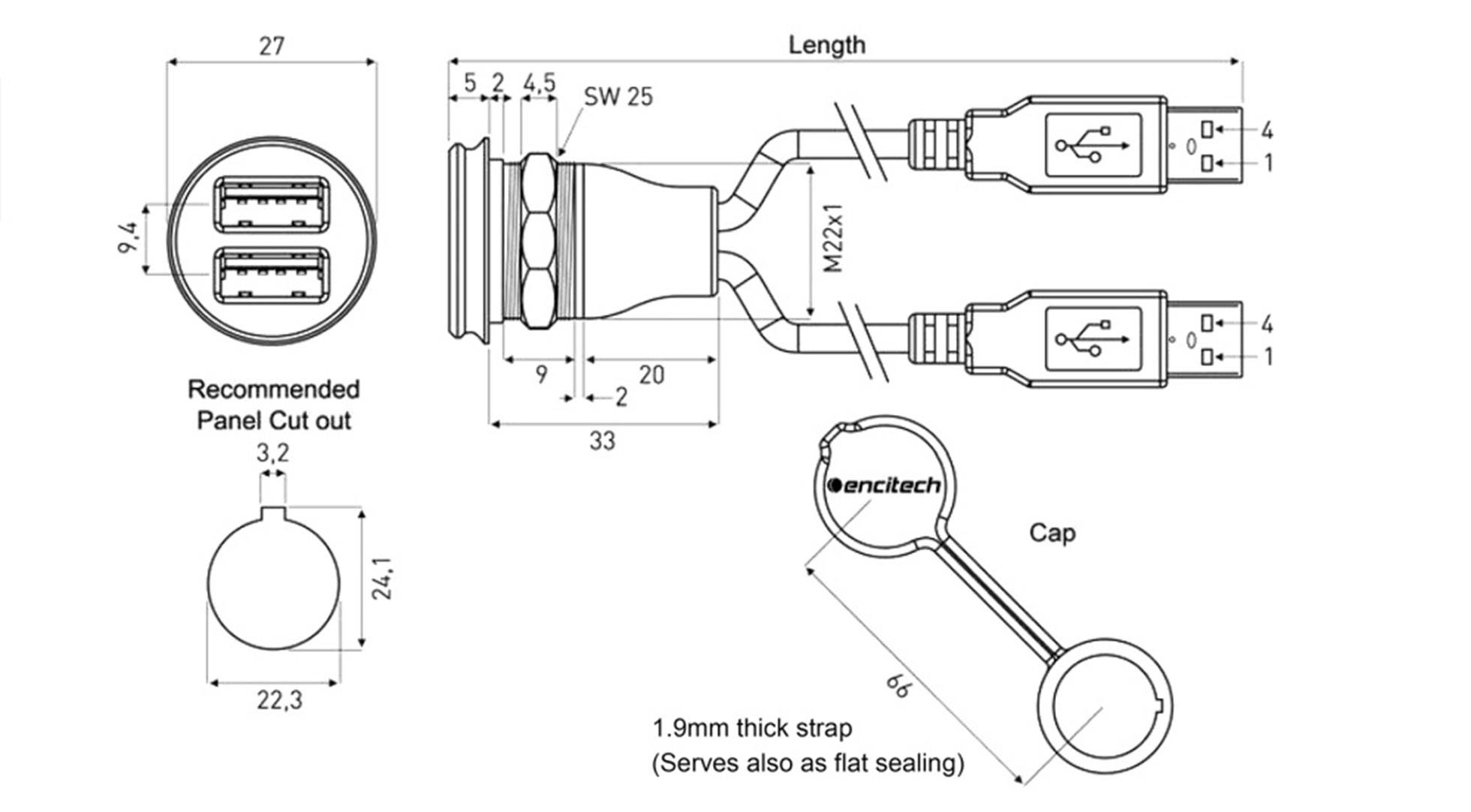

Technical drawing of a USB panel-mount connector with dimensions. Two USB ports, removable cap, recommended drilling hole.
1/2
Image similar
Product type
USB connector
Connector type
RJ45 socket, mount
Number of pins
4
USB type
A
Connector standard
USB 2.0
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 23.99 / piece)
€ 23.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Type

1310-1028-04

Product type

USB connector

Connector type

RJ45 socket, mount

Type

M22

Number of pins

4

USB type

A

Connector standard

USB 2.0

Connection

Cable + connector

Type A

USB 2.0 port A

USB 2.0 port A

Type B

USB 2.0 connector A

USB 2.0 connector A

Bore Ø

23 mm

Case material

PA

Manufacturer part #

1310-1028-04

Factory colour

Black

Blue

Content

1 pc(s)

Cable length

2.00 m

Contact material

Gold plated

Compatible with (details)

M22 thread

IP67

Features

+ plastic cap

+ locknut

Documents & Downloads

Datasheet

Datasheet 1656563 2x USB 2.0 type A RJ45 socket, mount 1310-1028-04 M22 1310-1028-04 encitech Content: 1 pc(s)
