3M 3302/10 100 SF Ribbon cable Contact spacing: 1.27 mm 10 x 0.08 mm² Multi-coloured Sold per metre
EAN:
Part number:
Item no:
Product type
Ribbon cable
CS
1.27 mm
No. of leads
10 x
Cross section (each core)
0.08 mm²
Content
Sold per metre
Datasheet (PDF)
151 meter
Sales and shipping:
Quantity (meter)
Savings
Package size (plus VAT.)
1
-
€ 2.34
5
3% = € 0.06
€ 2.28
10
5% = € 0.11
€ 2.23
50
10% = € 0.23
€ 2.11
100
20% = € 0.47
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.34 / piece)
€
Highlights & Details
3M 3302/10 100 SF Ribbon cable Contact spacing: 1.27 mm 10 x 0.08 mm² Multi-coloured Sold per metre
Technical specifications
- Product type
Ribbon cable
- CS
1.27 mm
- No. of leads
10 x
- Cross section (each core)
0.08 mm²
- Cross section
10 x 0.08 mm²
- Cable features
Tin-plated
Colour-coded
- Width
12.7 mm
- Height
11.43 mm
- Factory colour
Multi-coloured
- Content
Sold per metre
- Nominal voltage
50 V
- Packaged
No
28
- Shielded
No
- Halogen-free
No
- Sold per metre
Yes
- Insulation material
PVC
- Core layout
7 x 0.127 mm
- Min. temperature range (fixed installation)
-20 °C
- Max. temperature range (fixed installation)
+80 °C
- Manufacturer part #
3302/10 100 SF
- Type
FBC
- Max. length sold by the metre
30 m
- Insulation
PVC (UL VW1)
- Nominal voltage (details)
< 50 V
- Cross section
0.080 mm²
- Temperature range
-20 - +80 °C
Documents & Downloads
Datasheet
Datasheet 602860 3M 3302/10 100 SF Ribbon cable Contact spacing: 1.27 mm 10 x 0.08 mm² Multi-coloured Sold per metre
Certificate
Certificate 602860 3M 3302/10 100 SF Ribbon cable Contact spacing: 1.27 mm 10 x 0.08 mm² Multi-coloured Sold per metre
Description

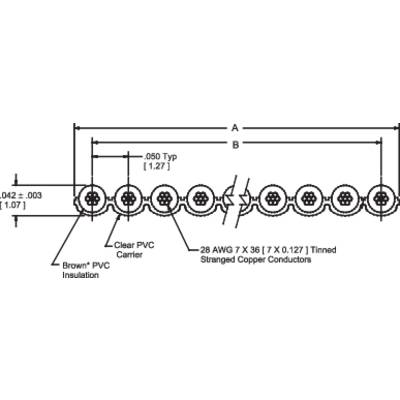

UL listed flat ribbon cable for insulation displacement connections with 1.27 mm RM. AWG 28 wire cross-section with 7 strands. The cable has colour-coded PVC insulation.
