Absima APC-1 Scale model multifunction charger 12 V, 230 V 10 A

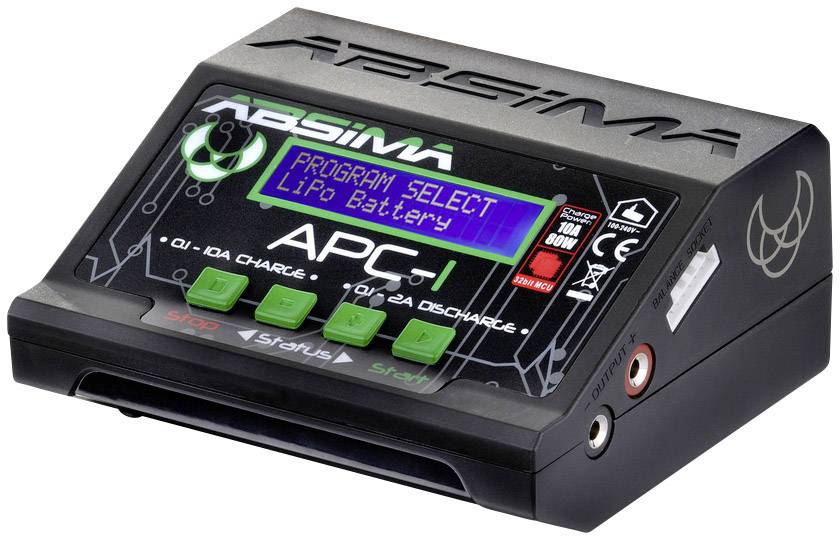

A charger with a digital display shows 'PROGRAM SELECT LiPo Battery'. It has four control buttons and two sockets on the right.
Charger for LiPo batteries, displaying 'PROGRAM SELECT LiPo Battery' on the screen. Five green buttons: Stop, Status, Start, and charging options.
'Absima APC-1' charger with display for selecting the charging programme. Includes various adapters and cables for charging batteries.
Black electronic device with ventilation grille, various ports, and illuminated indicator lights on the top surface.
A battery charger by Absima, model APC-1, with a digital display and various connections on the right-hand side.
A corner of a black electronic device with lettering and multiple ports.
A black electronic device with ventilation slots on the side, a USB port, and small round feet on the underside.
'Charger adaptor cable and connection terminals: on the left is a balancer board with multiple connections, on the right two crocodile clips.'
Black European mains cable with two pins and C7 socket, suitable for electronic devices.
1/9
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 53.99 / piece)
€ 79.99
-33 %
€ 53.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Multi-functional charger APC-1

  • Easy "Easy Button "Operation
  • Safe charging control over DOT-matrix display
  • Integrated power supply

Technical specifications

Product type

Scale model multifunction charger

Operating voltage

12 V

230 V

Operating voltage

11 - 18 V / DC

100 - 240 V

Max. charging capacity

80 W

Suitable for (No. of LiPo/LiIon/LiFe batteries) (max.)

6

Suitable for (no. of NiCd/NiMH batteries) (max.)

15

Charging current (max.)

10 A

Max. discharge power

5 W

Discharge current

0.1 - 2 A

Charging slots

1

Connector system

4 mm

Balancer plug-in

XH

Dim

(L x W x H) 130 x 115 x 61 mm

Suitable for (No. of LiPo/LiIon/LiFe batteries) (min.)

1

Suitable for (No. of NiCd/NiMH batteries) (min.)

1

Suitable for lead-type rechargeables (max.)

24 V

Suitable for lead-type rechargeables (min.)

2 V

Weight

380 g

Manufacturer part #

4000013

Width

115 mm

Height

61 mm

Length

130 mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1515110 Absima APC-1 Scale model multifunction charger 12 V, 230 V 10 A

Description

Small, fine, all-rounder! Professional and effective charging technology in compact garment. The APC-1 offers everything that a modern, effizentes, high-performance charger should have.

This text is machine translated.

Features

  • Computer-controlled universal charger
  • XH balancer connection via Balancing Board (1-6 cells)
  • Delta-peak safety cut-off.

Scope of delivery

  • Battery charger
  • Power cord
  • Charging cable for plug-in system T-plug
  • Balancer Board
  • DC connection cable with alligator clips
  • User manual.
