Name: Akyga AK-CH-24 USB charger 140 W USB-C®, USB-A White
Brand: Akyga
SKU: 3841222
Availability: InStock

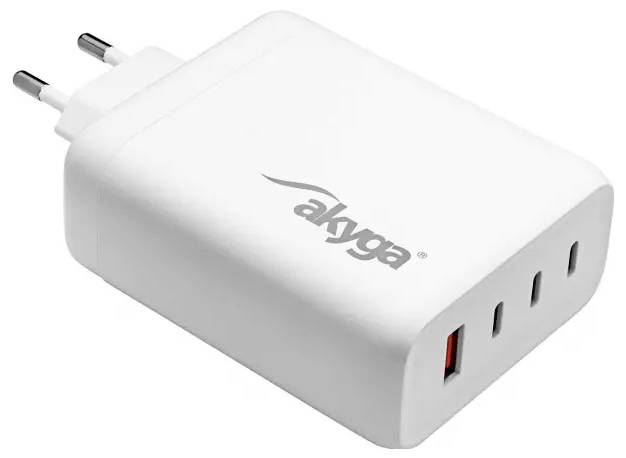

White Akyga wall charger with two round EU prongs and a front USB-A port for charging devices.

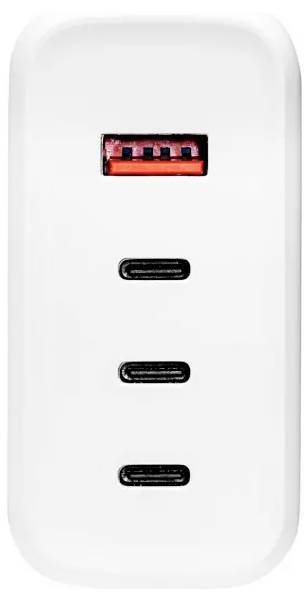

White wall charger with one USB-A port at the top and three USB-C ports below.<br>

White eShope wall charger with two round European plug pins and a USB connector attached<br>

Advertisement for a white AK-CH-24 GaN charger with 140W output, showing multiple port power combinations and Power Delivery support.

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 69.99 / piece)

€ 69.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Power input < 0.5 A.
Earthing: Without (II protection class)
OVP fuse: Yes
OCP Backup: Yes
OTP fuse: Yes
SCP fuse: Yes
Manufacturing material: ABS
MTBF: 100000 h
Standard: Quick charge 3.0, Power delivery 3.0, GaN
USB-A power supply: 5 V/3 A, 9 V/3 A, 12 V/2.5 A (max. 30 W
USB-C VOLTAGE SUPPLY: PD1/PD2: 5.2 V/3 A, 9 V/3 A, 15 V/3 A, 20.5 V/5 A, 28 V/5 A (MAX. 140 W), PD3: 5 V / 3 A,9 V / 3 A,12 V / 2.5 A,15 V / 2 A,20 V / 1.5 A (MAX. 30 W
Matching with DCP (Dedicated Charging Port): Yes

Product type: USB charger

: 140 W

Inputs: Europlug

Outputs: USB-C®
USB-A

Output voltage: 5 V
9 V
12 V
15 V
20 V
20.5 V
28 V

Output current (max.) - rounded: 5 A

Max. output current: 5 A

Type: AK-CH-24

Weight: 266 g

Factory colour: White

Input voltage (max.): 240 V AC

Min. input voltage: 110 V AC

Max. temperature: 50 °C

Min. temperature: 5 °C

Documents & Downloads

Datasheet

Datasheet 3841222 Akyga AK-CH-24 USB charger 140 W USB-C®, USB-A White

User & Safety Instructions

User & Safety Instructions 3841222 Akyga AK-CH-24 USB charger 140 W USB-C®, USB-A White

Description

The Akyga® AK-CH-24 USB-C charger is an advanced device that offers a maximum power of 140 W and can charge even the most demanding devices quickly and efficiently. Thanks to the GaN technology (gallium nitride) the charger is not only efficient, but also compact and energy-saving. This technology minimizes the loss of energy, WAS leads to a lower heat release, a higher efficiency and a smaller size of the device.

The GaN charger AK-CH-24 is equipped with three USB Type-C connectors and one USB Type A connector. The large number of connections makes the charger Ideal for families, offices and people, who are traveling with several devices. The ability to charge multiple devices simultaneously eliminates the need for multiple chargers, and WAS is especially useful in areas with limited power outlets.

Moreover, the power charger supports a voltage range from 5 to 28 V and a maximum current of 5 A, WAS for versatility and wide compatibility with a variety of electronic devices. The Power delivery (PD) and Quick Charge technologies enable automatic adjustment of the charging power to the specifications of the connected device and thus enable a safe and optimum charging process. This enables charging smartphones, tablets, laptops, power banks and other devices with Hohem power consumption quickly.

Moreover, the USB-C charger does not have an integrated USB cable, so users have the option to choose the appropriate length and type of cables for their needs. This increases the flexibility and comfort while using.

This text is machine translated.
