Akyga AK-EC-16 eMobility charging cable 6.00 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 323.53 / piece)
€ 323.53
plus VAT.
Only 1 Piece(s) available

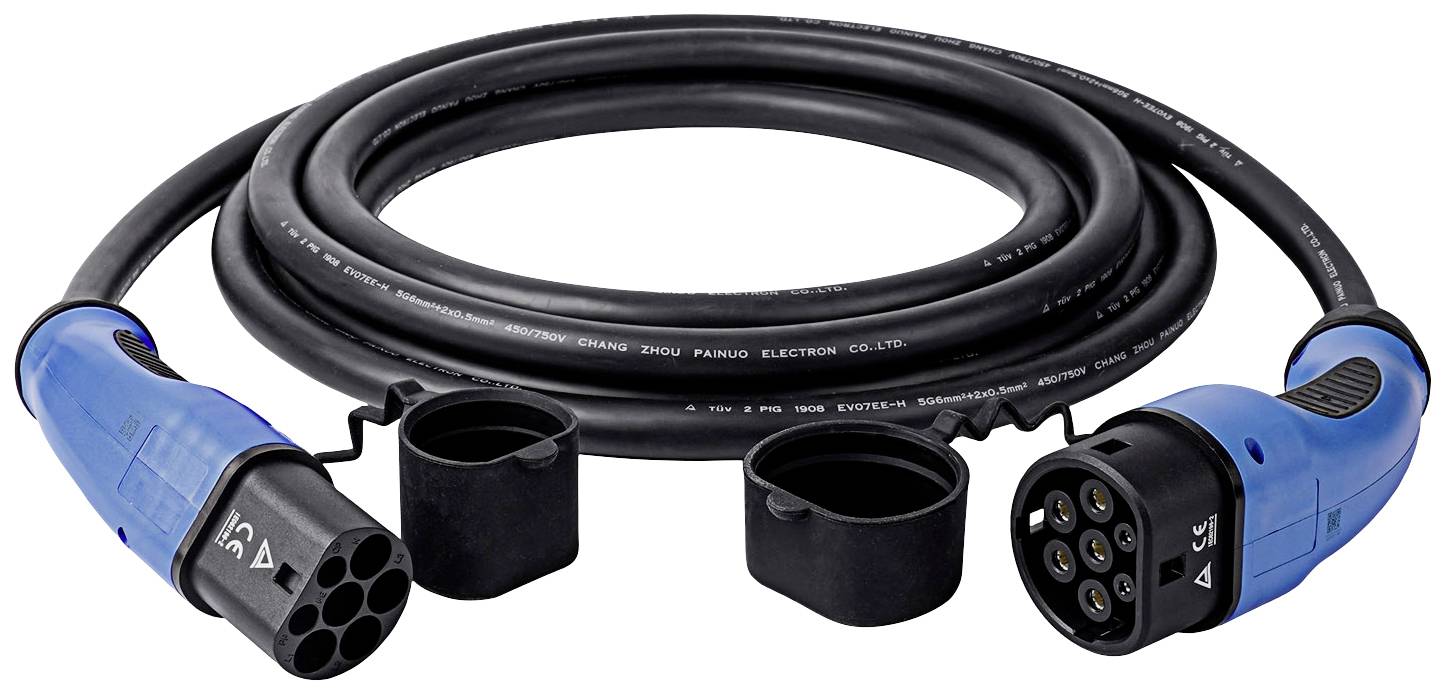

Cable for electric cars AK-EC-16 Type2 / Type2 3-phase 32A 22kW 6m
Technical specifications
- Product type
eMobility charging cable
- Type A
Type 2
- Type B
Type 2
- No. of phases
3-phase
- Charging mode
Mode 3
- Cable length
6.00 m
- Core layout
5 x 6 mm2 + 2 x 0.5 mm2
- Nominal voltage
240 V AC
450 V AC
- Nominal current
32 A
- Nominal current - rounded value
32 A
IP54
- Min. temperature
-30 °C
- Max. temperature
50 °C
- Charging capacity
22 kW
- Charging current
32 A
- Factory colour
Black
Blue
- Height
85 mm
- Length
6000 mm
- Width
150 mm
- Weight
4.48 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2804143 Akyga AK-EC-16 eMobility charging cable 6.00 m
User & Safety Instructions
User & Safety Instructions 2804143 Akyga AK-EC-16 eMobility charging cable 6.00 m
Description
The Akyga® AK-EC-16 cable is used for charging electric cars. It is easy to use and enables a safe and efficient 3-phase charging of the vehicle. The cable is supplied with plugs of the type 2, also known as MENNEKES. This is the standard found on most electric cars in Europe. These plugs are equipped with a comfortable grip, which guarantees a simple installation and a safe use. The cable AK-EC-16 can also be used for quick charging electric vehicles with a current of 32 A. This is an ideal option for those who have an electric car with a large battery.
