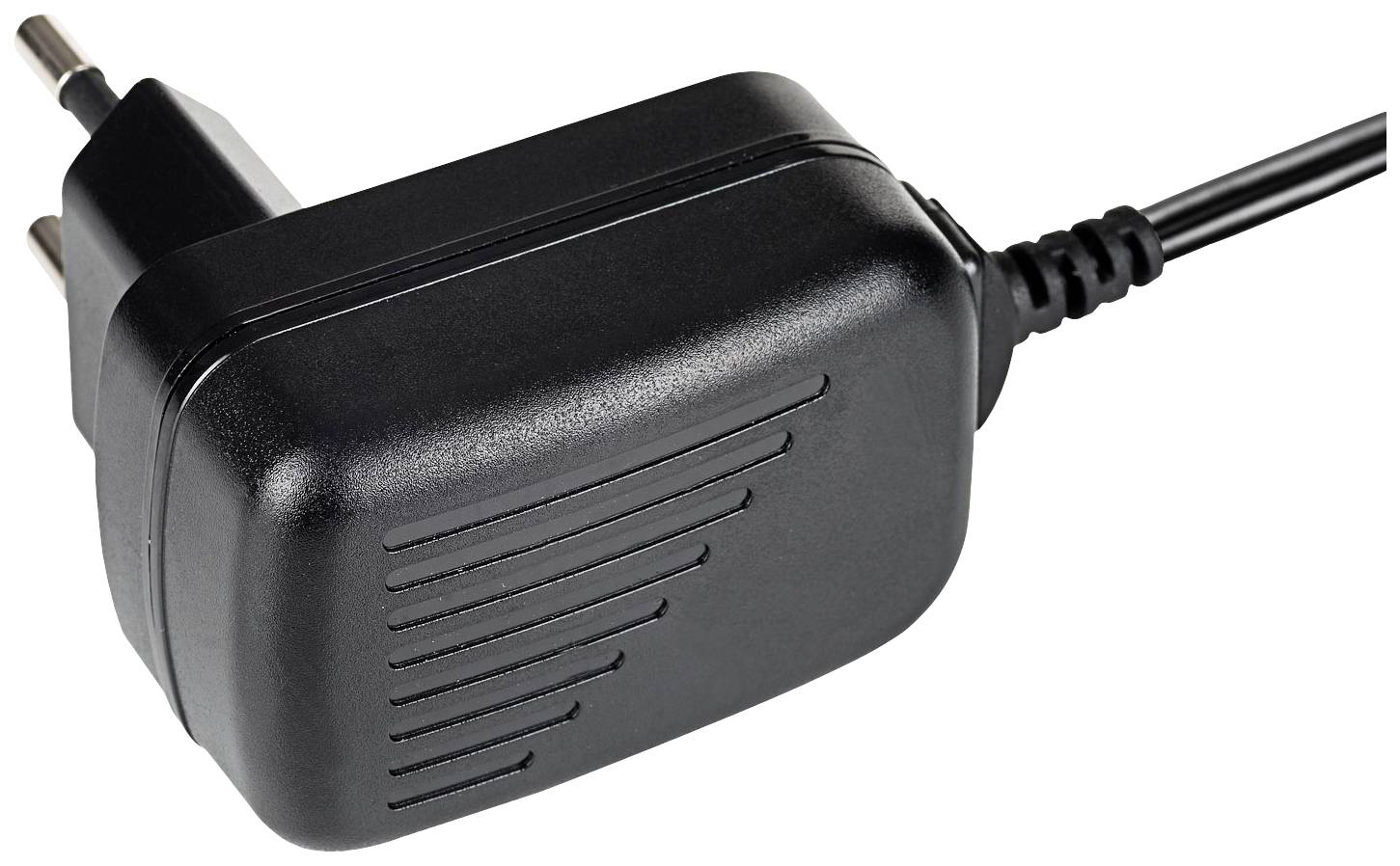

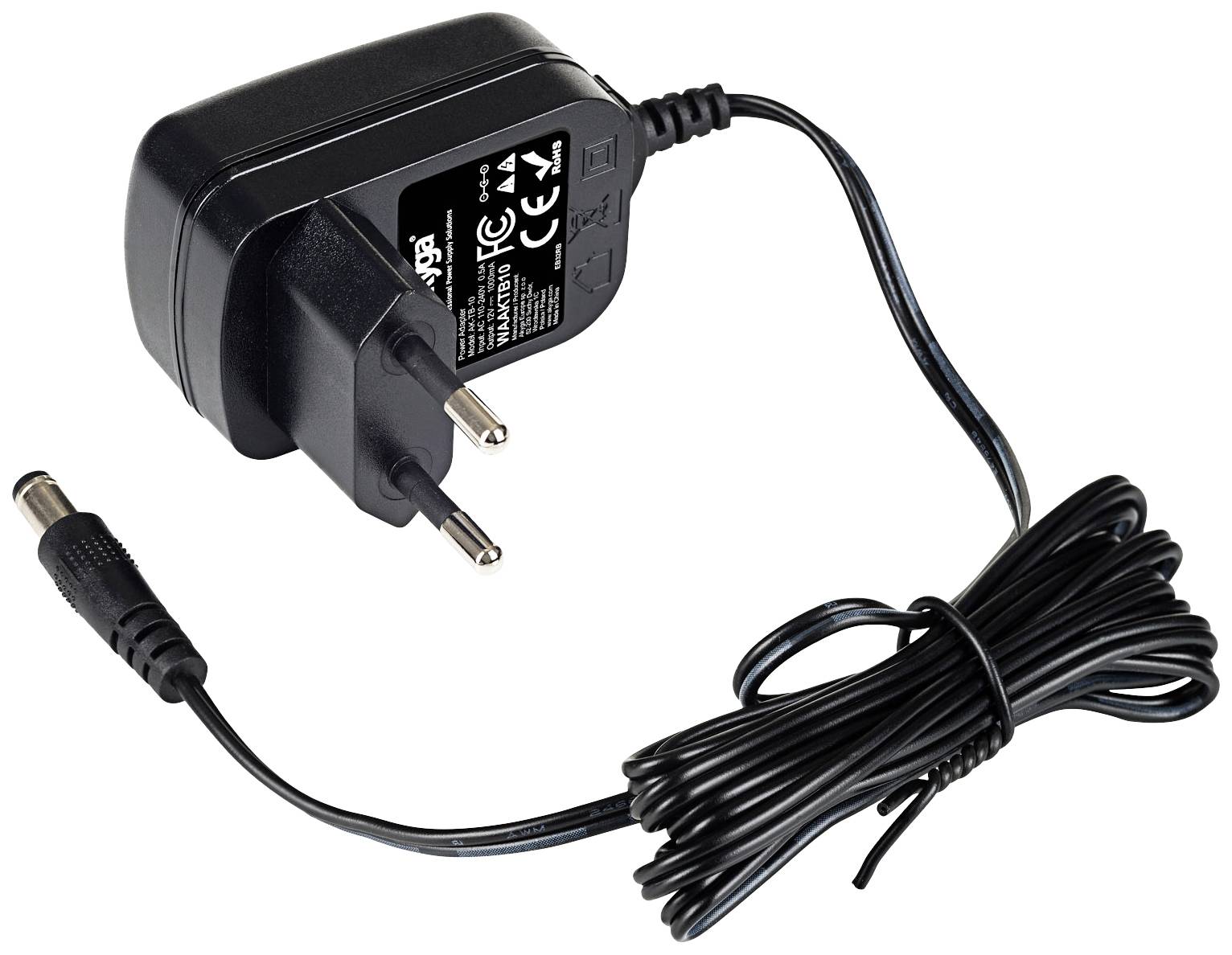

Akyga AK-TB-10 Mains PSU (fixed voltage) 12 V 1 A 12 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 14.99 / piece)
€ 14.99
incl. VAT
14-day return policy included
Technical specifications
- OVP fuse: Yes
- OCP Backup: Yes
- OPP fuse: Yes
- OTP fuse: Yes
- SCP fuse: Yes
- Product color: Black
- Operating temperature 5 °C - 50 °C
- Product dimensions (L x W x H) 80 x 60 x 40 mm
- Supply voltage 110-240 V
- Cable length 1.4 m.
- Manufacturing material: ABS
- Power input < 0.5 A.
- Power output 12 V
- Output current 1 A
- Earthing: Without (II protection class)

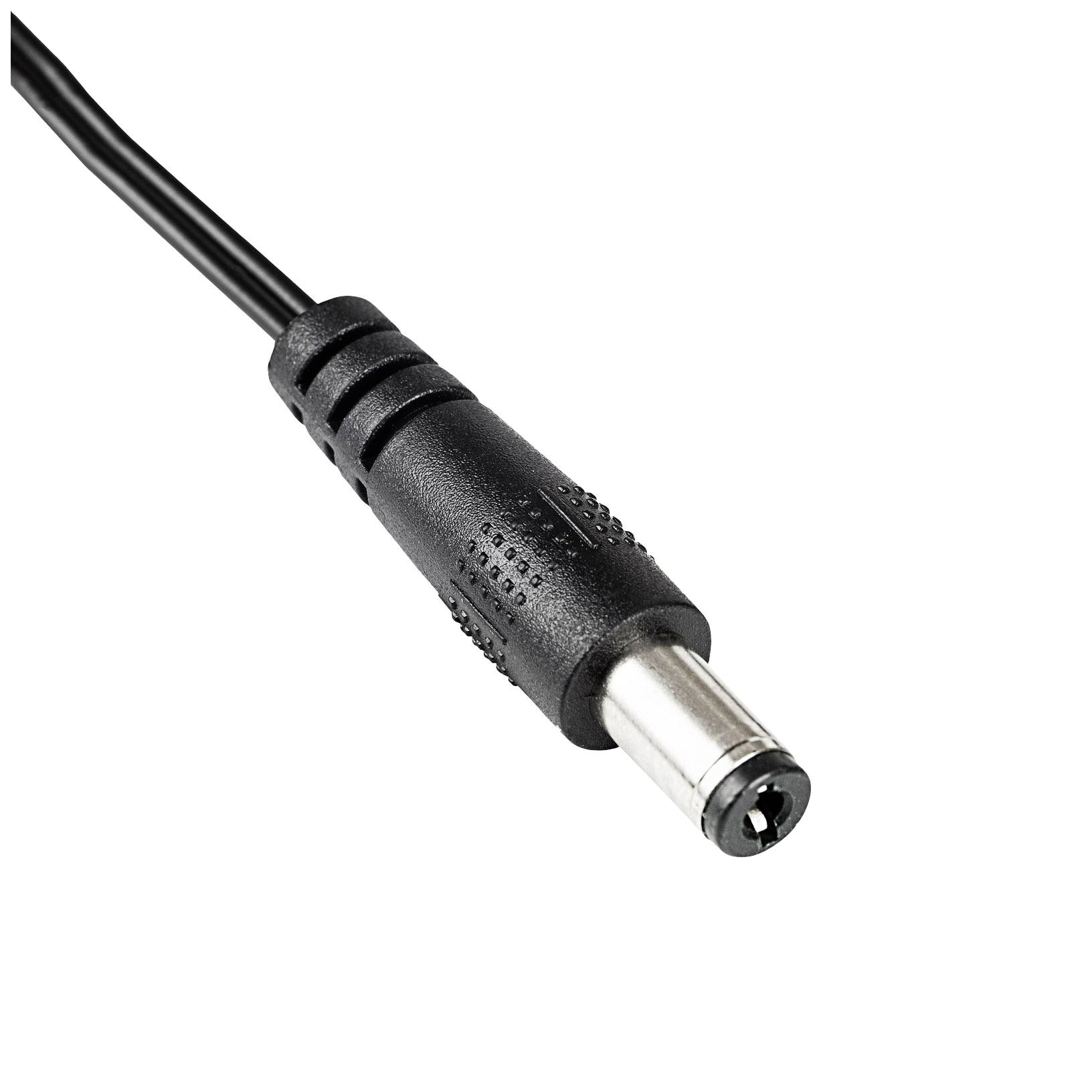

- Power supply 5.5 x 2.1 mm
- Pin length 10 mm
- MTBF: 100000 h
- Product type
Mains PSU (fixed voltage)
- Max. output current
1 A
- Output voltage
12 V
- Output current (max.) - rounded
1 A
- Output
5.5/2.1 coaxial connector
12 W
- Dim
(L x W x H) 80 x 60 x 40 mm
- Input voltage (max.)
240 V AC
- Min. input voltage
110 V AC
- Weight
74 g
- Cable length
1.4 m
- Width
60 mm
- Height
40 mm
- Length
80 mm
- Type
AK-TB-10
- Factory colour
Black
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2865423 Akyga AK-TB-10 Mains PSU (fixed voltage) 12 V 1 A 12 W
User & Safety Instructions
User & Safety Instructions 2865423 Akyga AK-TB-10 Mains PSU (fixed voltage) 12 V 1 A 12 W
Description
AK-TB-10 is a power supply unit for different types of LED bands and power-supplied devices with parameters 12V/1A, with force 12W and with plug 5.5*2.1 mm.
