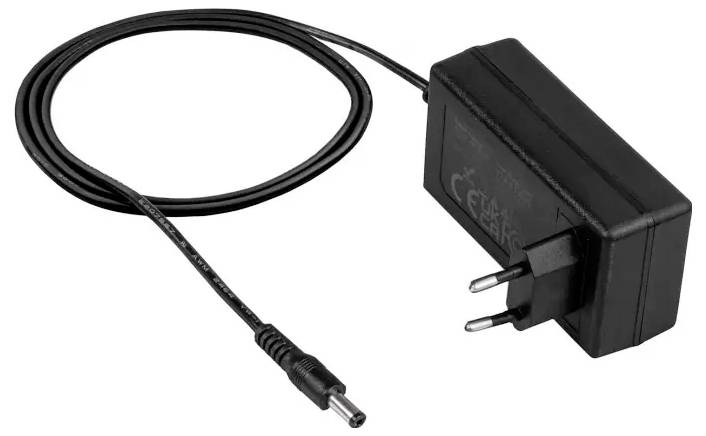

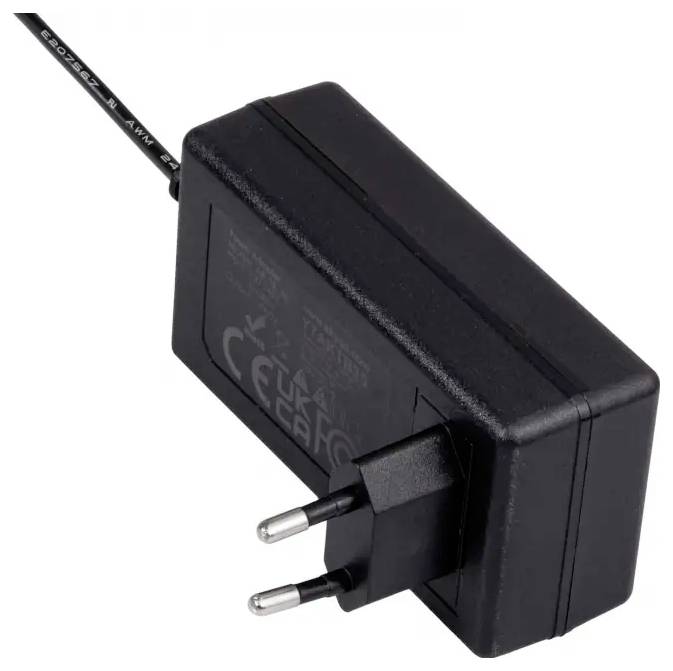

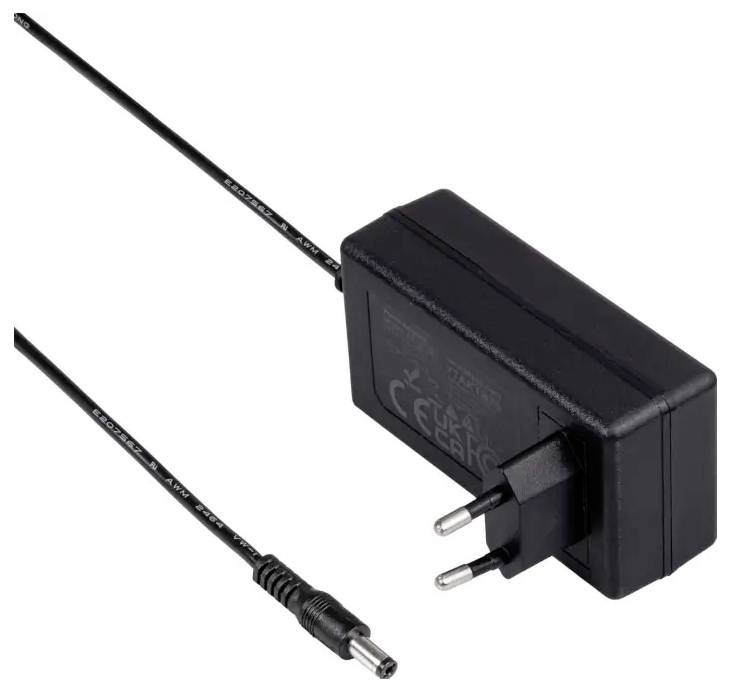

Akyga AK-TB-35 Power supply unit 24 V 2 A 48 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
5% = € 0.92
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Power supply AK-TB-35 24V / 2A 48W 5.5 x 2.1 mm
Technical specifications
- Voltage 24 V
- Current 2 A
- Power: 48 W
- Pin length 12 mm
- Product color: Black
- Length: 53 mm
- Width 70 mm
- Height: 100 mm
- Net weight: 154 g
- Cable length 1 m.
- Supply voltage 100-240 V
- Power input < 0.6 A.
- Mechanical shut-off switch: Without
- Earthing: Without (II protection class)
- OVP fuse: Yes
- OCP Backup: Yes
- OPP fuse: Yes
- OTP fuse: Yes
- SCP fuse: Yes
- Power supply 5.5 x 2.1 mm
- Manufacturing material: ABS
- MTBF: 100000 h
- Min. Operating temperature 5 °C
- Operating temperature max. 50 °C
- Product type
Power supply unit
- Max. output current
2 A
- Output voltage
24 V
- Output current (max.) - rounded
2 A
48 W
- Dim
(L x W x H) 53 x 70 x 100 mm
- Input voltage (max.)
240 V AC
- Min. input voltage
100 V AC
- Weight
154 g
- Cable length
1 m
- Width
70 mm
- Height
100 mm
- Length
53 mm
- Type
AK-TB-35
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3421118 Akyga AK-TB-35 Power supply unit 24 V 2 A 48 W
User & Safety Instructions
User & Safety Instructions 3421118 Akyga AK-TB-35 Power supply unit 24 V 2 A 48 W
Description
The Akyga® AK-TB-35 power supply unit is a high-quality device that supplies a wide range of electronic devices with power in a stable and reliable manner. With parameters of 24 V / 2 A and an output of 48 W, it is perfect for devices such as routers, surveillance cameras, audio devices or LED lighting systems.
Power supply for LEDs and more

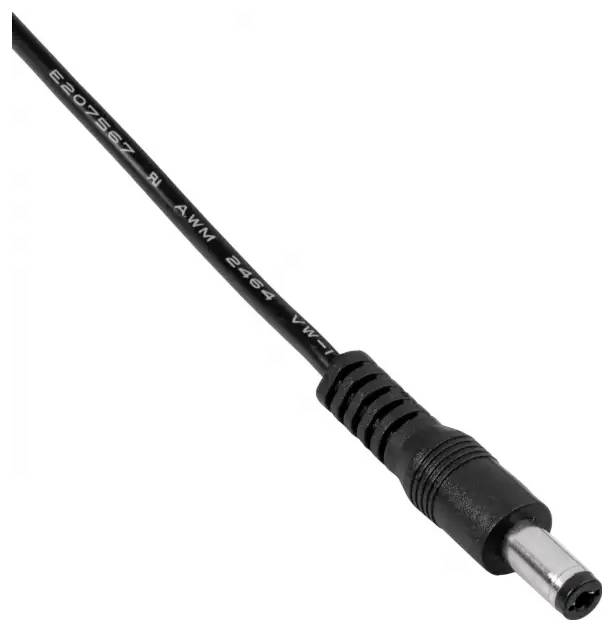

The 24 V DC power supply is equipped with a 5.5 x 2.1 mm standard plug which makes it a universal solution for many applications. It is the ideal choice for supplying power to CCTV-monitoring systems, telecommunication-hubs, signal amplifiers and industrial devices that need a stable 24-V-DC voltage. It is also essential for LED lighting - from LED strips in decorative domestic installations to more advanced lighting systems in commercial areas.
24 V DC power supply - high quality and safety
The Akyga® AK-TB-35 24-V LED power supply is designed for user safety. Integrated protective devices against overvoltage, overheating and overload protect the connected devices effectively. The stable output voltage minimizes the risk of interference and ensures the trouble free operation of devices in both private and professional environments. Thanks to the compact and light design, the power supply is suitable for daily use and can be easily stored.
The perfect choice for different requirements
Whether you are supplying power to a router, a camera, an industrial device or an LED lighting device, the Akyga® power supply AK-TB-35 will meet your requirements. Its versatility, high efficiency and reliability make it an indispensable solution for a large number of applications. Its robust design and energy efficiency make it an excellent choice for private users and professionals looking for a reliable and safe DC source.
