Buy Akyga LP503759 Battery pack x Non-standard rechargeable LiPo 3.7 V 1350 mAh

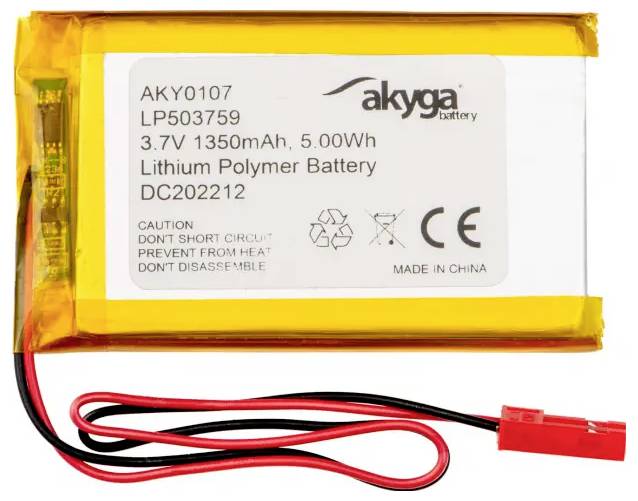

Lithium-Polymer Battery with 3.7V, 1350mAh and 5.00Wh. Warning: Do not short-circuit, avoid fire, do not disassemble.

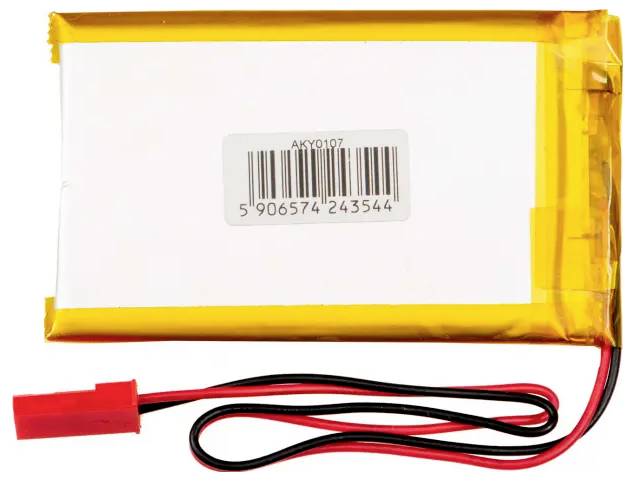

Rectangular white lithium-polymer battery with a yellow border and red and black connecting cables, set against a white background.

A lithium-polymer battery with yellow insulation, connected with red and black wires, is lying on a table next to some tools.

1/3

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

47 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 11.76 / piece)

€ 11.76

plus VAT.

14-day return policy included

Report legal concerns

Akyga LP503759 Battery pack x Non-standard rechargeable LiPo 3.7 V 1350 mAh

Technical specifications

Manufacturer name: LP503759
Product type: Lithium polymer battery
Voltage: 3.7 V
Capacity 1350 mAh
PCM fuse
Lead: Wires, connector + socket
Connector type 2.54 JST, 2 pin
Connector part number: JST SYP-02T-1
Cable length: 150 mm.
Length: 59 mm
Width 37 mm
Height: 5 mm
Net weight: 25 g

Product type: Battery pack

Size: Non-standard rechargeable

Voltage: 3.7 V

Capacity (mAh, Ah): 1350 mAh

Technology: LiPo

Length: 59.5 mm

Width: 38 mm

Height: 5.5 mm

Weight: 25 g

Content: 1 pc(s)

Manufacturer part #: AKY0107

Type: LP503759

Rechargeable: Yes

Dim: (L x W x H) 59.5 x 38 x 5.5 mm

Connector: JST connector

Documents & Downloads

Datasheet

Datasheet 3385852 Akyga LP503759 Battery pack x Non-standard rechargeable LiPo 3.7 V 1350 mAh

User & Safety Instructions

User & Safety Instructions 3385852 Akyga LP503759 Battery pack x Non-standard rechargeable LiPo 3.7 V 1350 mAh

Description

Akyga battery lithium polymer battery, you get a proven and safe solution. The AKY0107 battery has a high-quality protective system that protects the battery from overcharging, excessive discharge and short circuit. It has a capacity of 1350 mAh and a nominal voltage of 3.7 V. To facilitate the installation of the battery, two cables with a length of 150 mm have been drained, which are terminated with a 2-pin JST connector.

Before using lithium-polymer batteries, familiarize yourself with the operating rules. Improper use can damage them.

This text is machine translated.
