Name: Akyga PC power supply unit 500 W ATX 80 PLUS
Brand: Akyga
SKU: 3731378
Availability: InStock

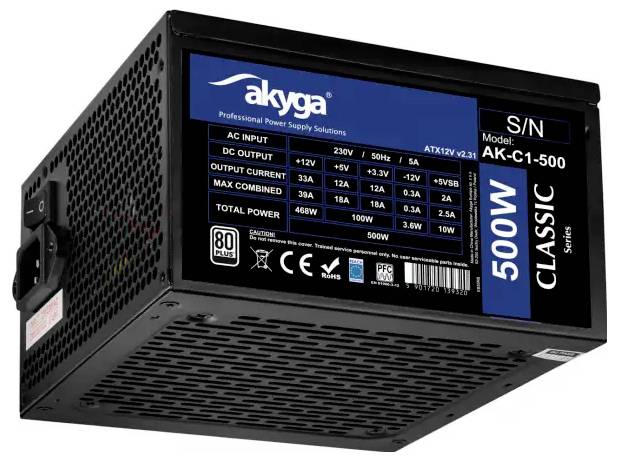

'500W ATX power supply, Akyga AK-C1-500, Classic Series. Features include 80 Plus certification, multiple connectors, and voltage specifications.'

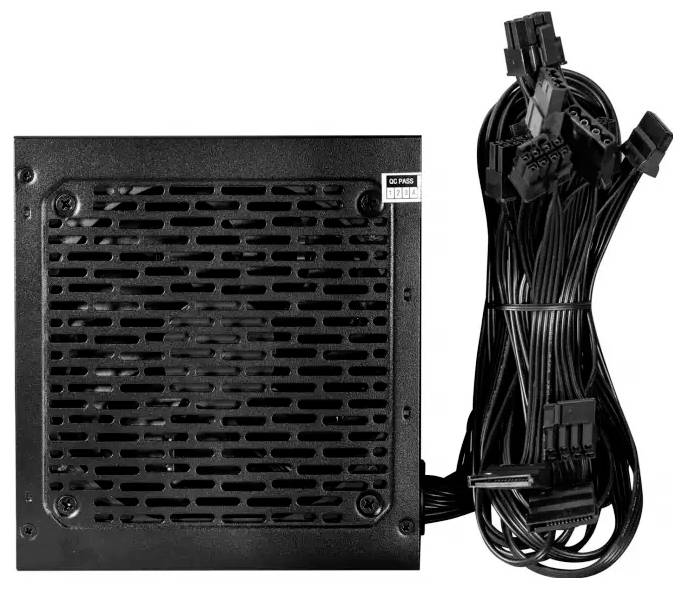

A computer power supply unit with a built-in fan and attached cables for connectivity.

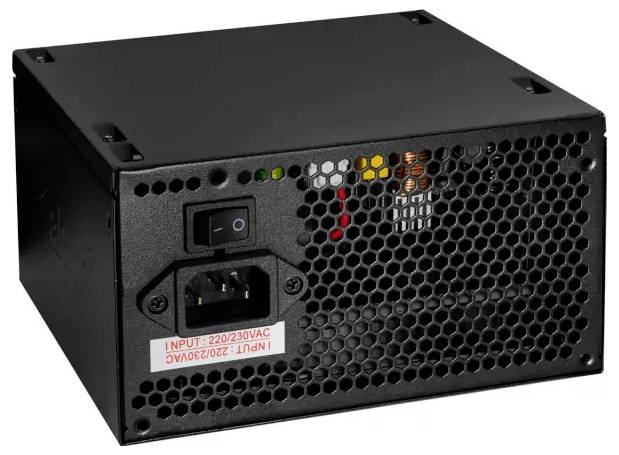

A black computer power supply with a metal grille, power switch, and 220/230VAC input label visible.

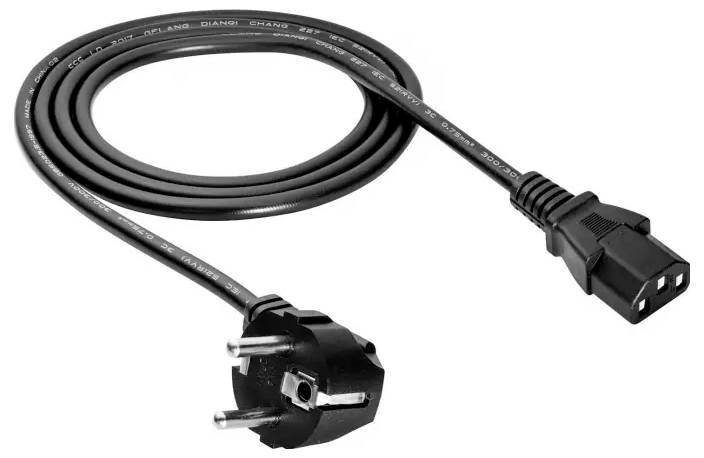

A black electrical power cable with a three-prong plug on one end and a three-pin connector on the other, coiled neatly.

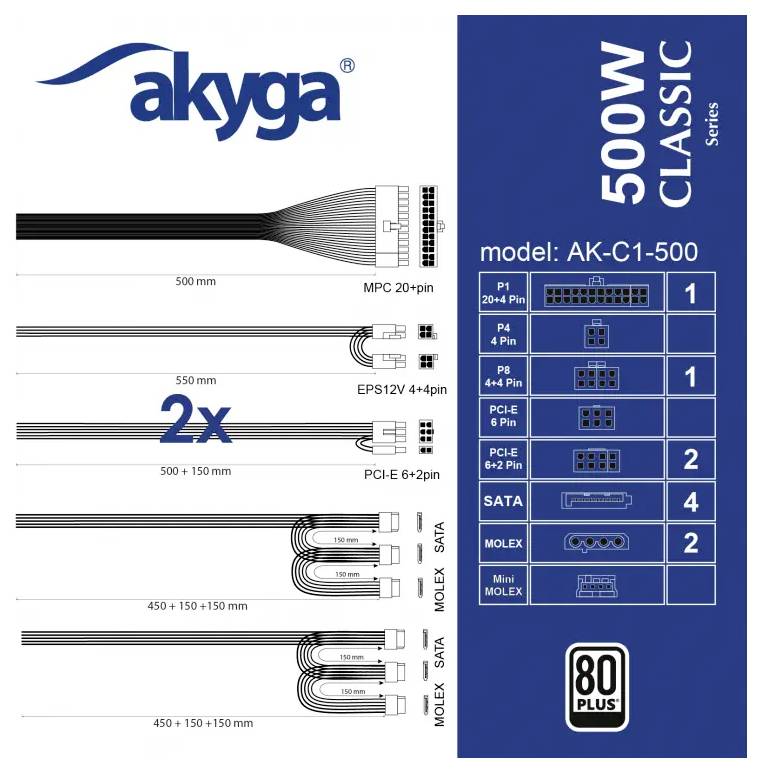

'500W CLASSIC Series' power supply connections diagram. Includes P1, P4, EPS12V, PCI-E, SATA, and Molex connectors, differing in pins and lengths.

'500W Semi-Modular Power Supply by Akyga, 80 Plus certified, with detailed specifications displayed on a blue and black label.'

1/6

Product type

PC power supply unit

PSU output power

500 W

Modular

Certification

80 PLUS

Form factor

ATX

Datasheet (PDF)

Fast track dispatch on Tue 27 Oct

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 61.99 / piece)

€ 61.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Akyga PC power supply unit

Power supply unit output 500 W
PCI-Express (6+2-Pin) 2x
Cable management No
80 PLUS

Technical specifications

Packaging: EcoBox
Grounding: Yes
Cable length 45 - 75 cm
TRACK 1: C/E/F ( CEE 7/7 )
Connection 2 IEC C13
Product color: Black
Series:Classic
Supply voltage 230 V
Output: 500 W
Manufacturing material: Galvanized steel
Power input < 5 A.
Power supply line: IEC C14
Mechanical shut-off switch: Yes
OVP fuse: Yes
OCP Backup: Yes
OTP fuse: Yes
OPP fuse: Yes
SCP fuse: Yes
Format ATX 2.31
Capacity: > 80%
80 PLUS match: Yes
Current in line +3.3V: 12 A.
Current in line +5V: 12 A.
Load of line +3.3V and +5V: 100 W.
Current in line +12V: 33 A.
Load of the line 12V: 468 W
Supply MPC connector: 24-pin
Female EPS12V 8-pin connector: 1 pieces
Supplying PCI-E 6+2 Pin-Plugs: 2 pieces
Supply Molex connector: 2 pieces
Supply SATA connector: 4 pieces
Modular Power Supply: No.
PFC filter: Active
Fan size: 120 mm
Fan rotation regulation: Automatic
Supply cable in set: Yes

Product type: PC power supply unit

PSU output power: 500 W

Modular: No

Certification: 80 PLUS

Form factor: ATX

Factory colour: Black

Dim: (L x W x H) 85 x 150 x 145 mm

Height: 145 mm

Width: 150 mm

Weight: 1320 g

+12 V/DC (1): 33 A

5 V DC: 12 A

8-pin 12 V: 1

24-pin: 1

4-pin Molex: 2

4+4 pin ATX/EPS 12V: 1

6-pin PCIe: 2

5-pin SATA: 4

Output rating > 500 W: 500 W

Power rating: 0 - 500 W

Type A: PG plug

Type B: IEC C13 socket (cooling devices)

Length: 85 mm

No. of A connectors: 1 x

No. of B connections: 1 x

Fan size: 120 mm

3.3V DC: 12 A

Operating voltage: 230 V / AC

Max. temperature: 50 °C

Min. temperature: 5 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3731378 Akyga PC power supply unit 500 W ATX 80 PLUS

User & Safety Instructions

User & Safety Instructions 3731378 Akyga PC power supply unit 500 W ATX 80 PLUS

Description

High performance and efficiency – the adapter offers a continuous power of 500 W

Guaranteed high efficiency - corresponds to the 80 PLUS standard

Quiet operation - the 12 cm fan provides for an excellent air circulation

Easy installation – long 45-75 cm cable enables a comfortable installation inside the casing

Flat cables – simplify the cable organization inside the housing

Wide range of plugs – ensures versatility and compatibility

High-quality electronic components – guarantee longevity, stability and reliability

Elegant design - the black housing fits elegantly to most of the PC housings

Full protection – a range of protective devices ensure that the device is protected from damage
