Buy Albrecht AE 6290 12629 CB radio

A portable radio with a display shows 'FM' and the frequency '27.065'. A microphone is placed on top of it.

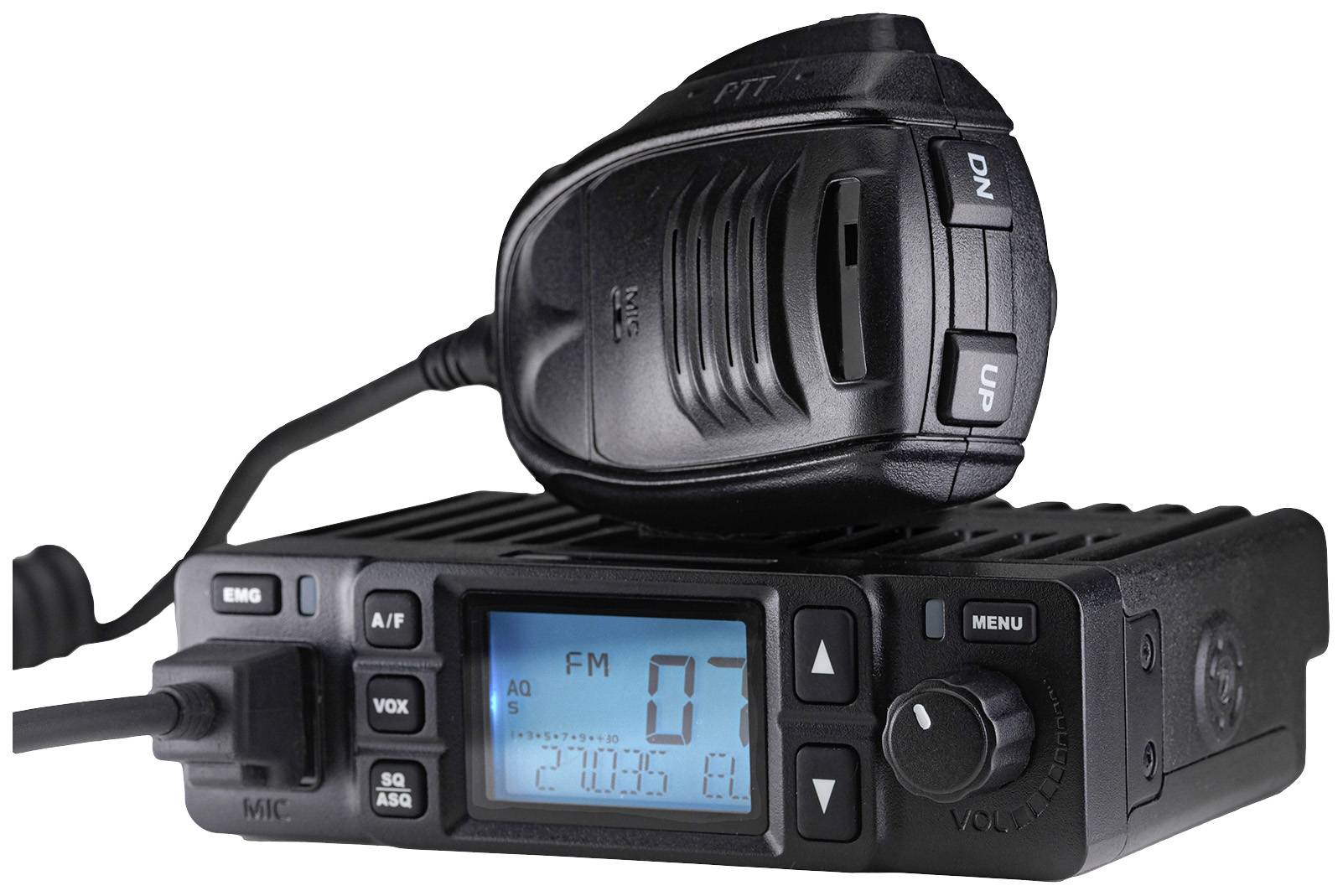

A black radio transceiver with a microphone. The display shows 'FM 07' and frequency information. Control buttons are located on the front panel.

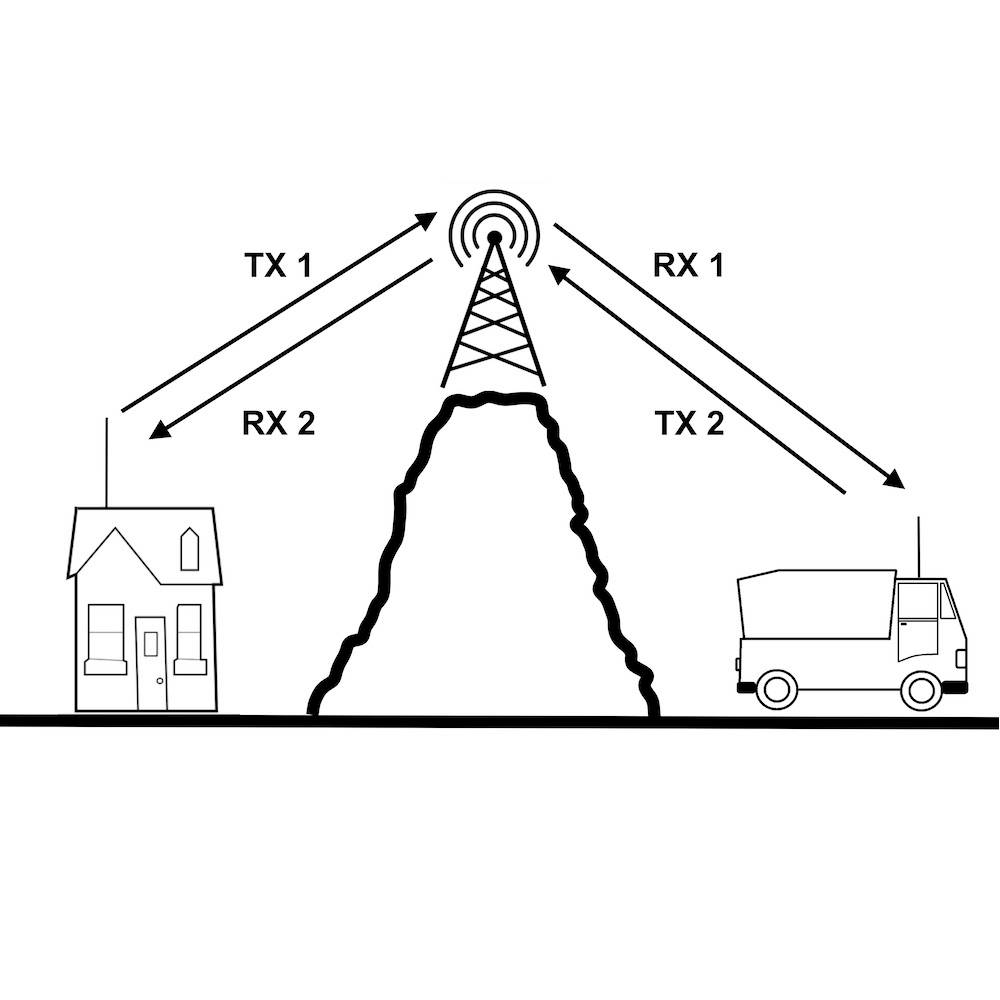

'Diagram shows a signal over a mountain from a house (TX 1) to an antenna and then to a lorry (RX 1) and vice versa (TX 2, RX 2).'

1/3

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 92.43 / piece)

€ 92.43

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

AE 6290 CB radio

VOX hands-free functionRepeater/relay functionLarge 4.7 cm display12/24V operation

Technical specifications

Product type: CB radio

Features: EU standards compliance
Squelch
Hands-free
VOX

Frequency: 27 MHz

Transmitter power: AM: 4 W
FM: 4 W

Width: 124 mm

Height: 36 mm

Depth: 124 mm

Weight: 0.428 kg

Dim: (W x H x D) 124 x 36 x 124 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2612183 Albrecht AE 6290 12629 CB radio

Information

Information 2612183 Albrecht AE 6290 12629 CB radio

Warranty Terms

Warranty Terms 2612183 Albrecht AE 6290 12629 CB radio

Description

With the new repeater function of the AE 6290 you can almost reach the double range compared to normal CB radio operation. In repeater mode, one channel is transmitted and received on a second channel. The radio switches automatically between the two channels and HER. This enables communication with weaker, more distant radio stations located in the vicinity of a relay. The wireless range is significantly increased.

This text is machine translated.

Features

Multistandard CB radio with all European frequencies Storage for operation via CB radio relay/repeaterFreely programmable channelsRepeater function also possible with CTCSS/DCS tonesS-/power meterAM/FM changeover 38 CTCSS / 104 DCS tonesTalk Back - function to check your own modulation SCAN functions for all channels Channel 9/19 direct button Automatic squelch ASQ Height reduction – (interfering) high frequencies will be filtered outNoise Blanker to prevent ignition disturbances RF gainUp/down buttons on the device and the microphone 8 colors can be selected for the display lighting Display illumination dimmableRJ45 microphone socket
