Albrecht Mini-CB FunkAE 6120 VOX Multi 12620 CB radio
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 68.90 / piece)
€ 68.90
plus VAT.
14-day return policy included
Highlights & Details

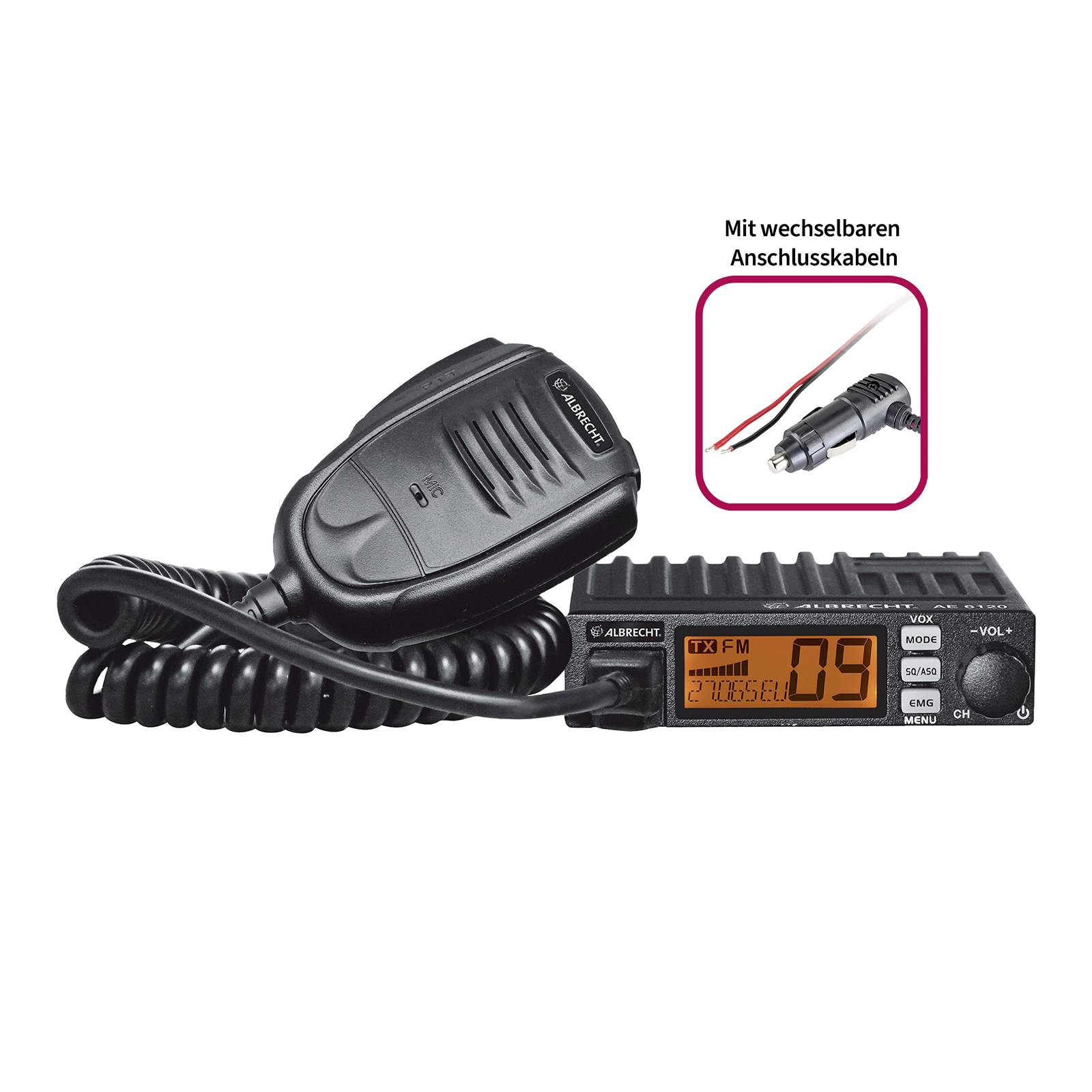

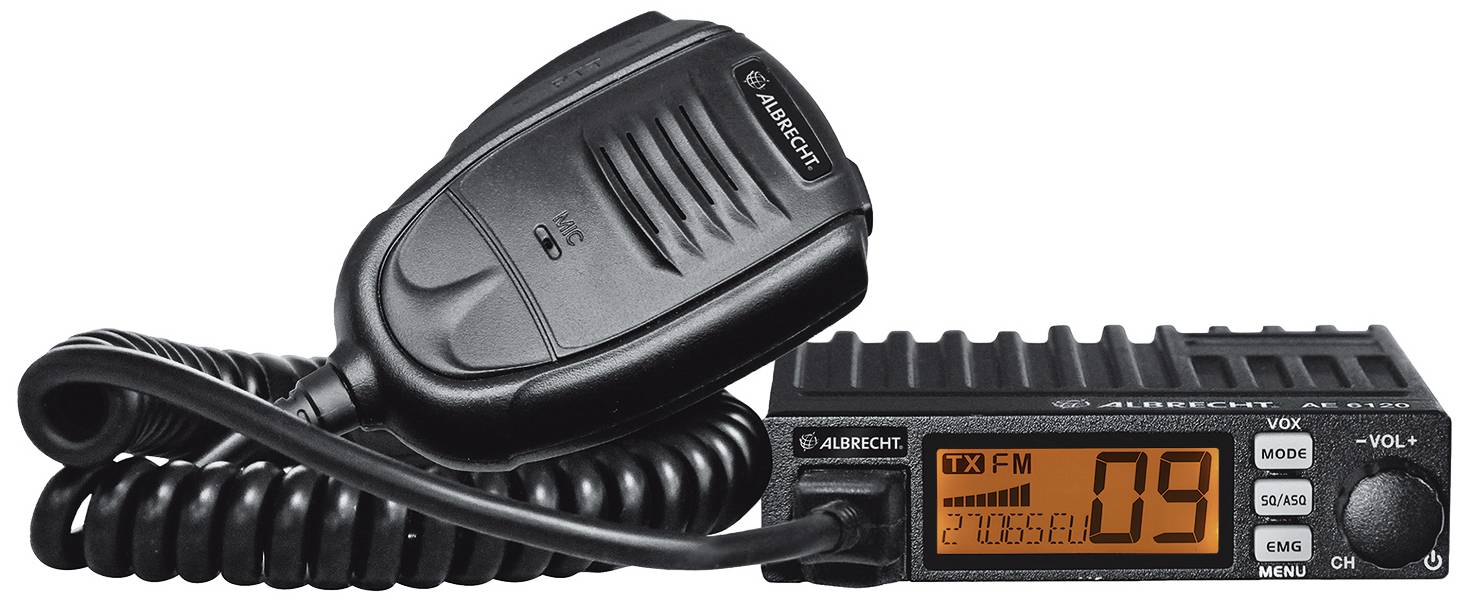

Albrecht AE 6120 VOX, mini-CB radio, with 2 power cables for cigarette lighter or fixed wiring
- Cigarette lighter or fixed wiring

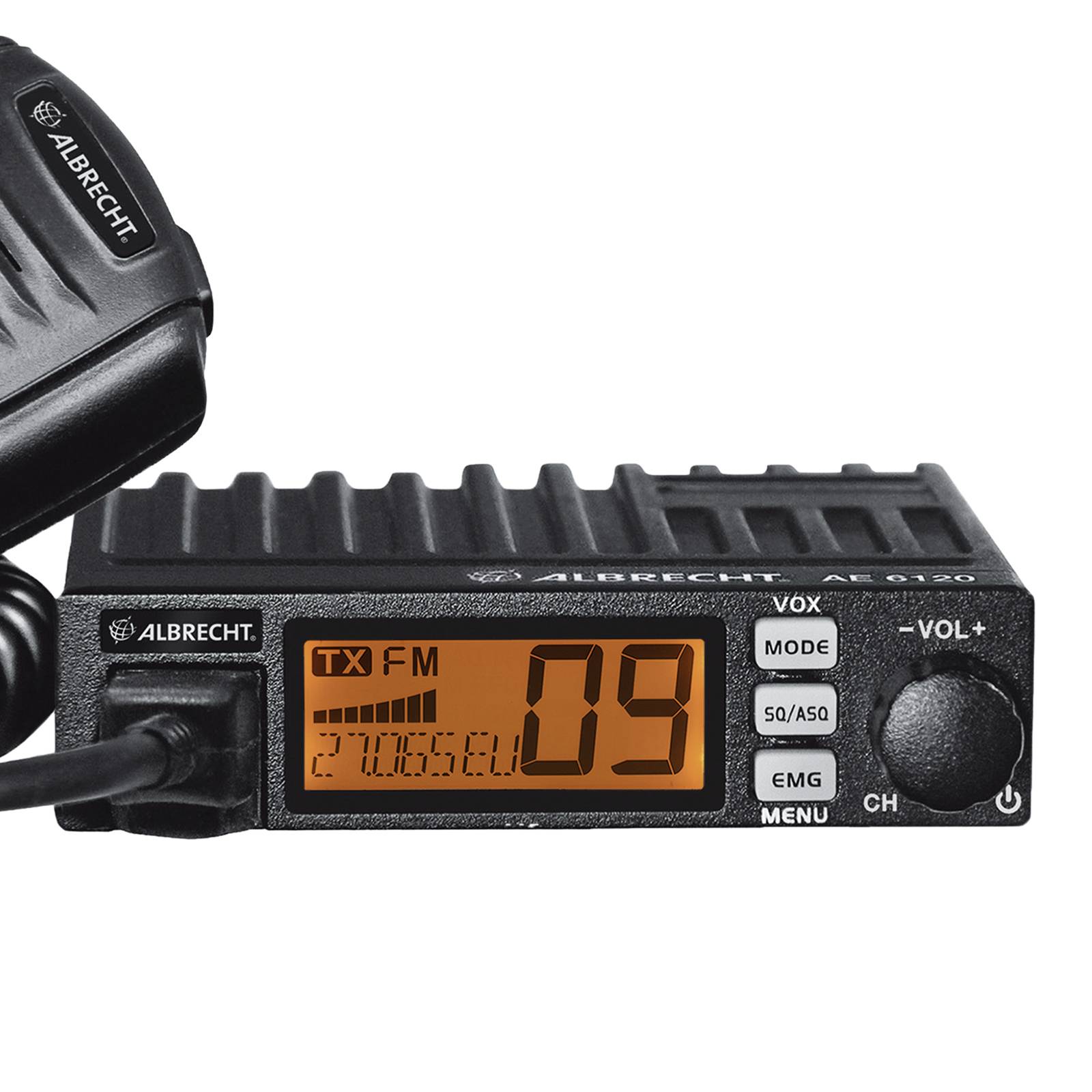

- Large display
- With RJ45 Western plug
Technical specifications
- Product type
CB radio
- Features
VOX
EU standards compliance
Hands-free
Signal strength meter
Speaker/microphone jack
- Transfer type
Radio
- Frequency
27 MHz
- Channels
40 FM / 40 AM
80 FM / 40 AM
40 FM
27 FM / 27 AM
20 km
- Transmitter power
4 W
- Width
110 mm
- Height
25 mm
- Depth
104 mm
- Weight
0.3 kg
- Dim
(W x H x D) 110 x 25 x 104 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2986726 Albrecht Mini-CB FunkAE 6120 VOX Multi 12620 CB radio
User & Safety Instructions
User & Safety Instructions 2986726 Albrecht Mini-CB FunkAE 6120 VOX Multi 12620 CB radio
Description
The Albrecht AE 6120 VOX is mini in size, but however it is nonetheless convincing with its various built-in functions.
With only 11cm width and 2.5cm height, it finds place without any problem on the smallest of spaces. It is very stable with its die-cast housing. Despite its small size, the device offers a detachable microphone with RJ45 Western plug.

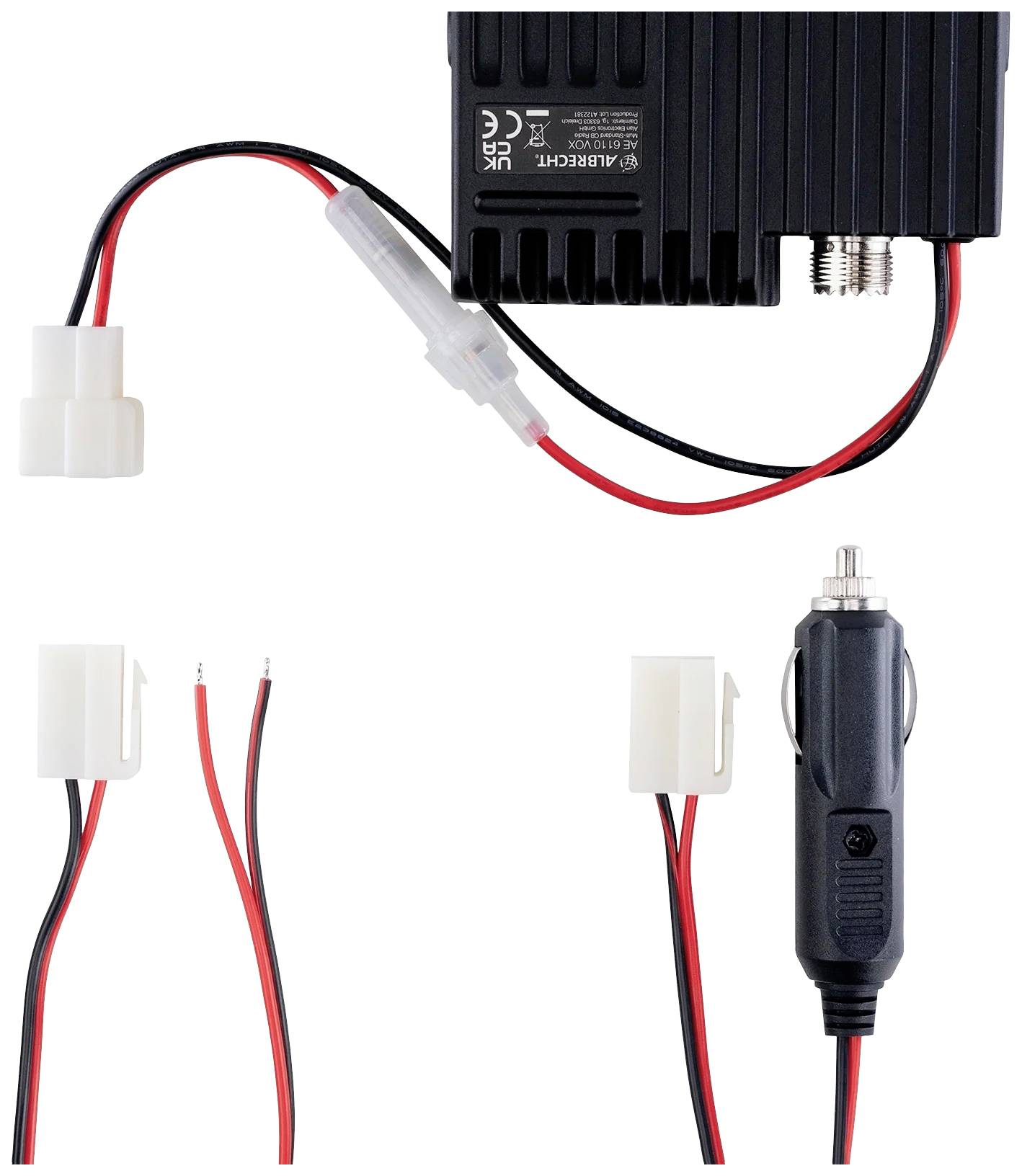

The new version of the AE 6120 VOX comes with a connection socket for power supply. Select whether you want to install the CB radio in the vehicle via a cigarette lighter plug or via permanent wiring. Simply connect the appropriate power cable from the delivery via plug connection to the device and start - very easy
This text is machine translated.
With only 11cm width and 2.5cm height, it finds place without any problem on the smallest of spaces. It is very stable with its die-cast housing. Despite its small size, the device offers a detachable microphone with RJ45 Western plug.
The new version of the AE 6120 VOX comes with a connection socket for power supply. Select whether you want to install the CB radio in the vehicle via a cigarette lighter plug or via permanent wiring. Simply connect the appropriate power cable from the delivery via plug connection to the device and start - very easy
This text is machine translated.
Features
- VOX hands-free function
- Channel search (scan)
- Key tones & Roger beep
- Automatic squelch (ASQ), 8-level adjustable
- Signal strength meter, 8 settings
- LED displays for RX and TX
- RF gain
- Channel 9/19 direct selection key (EMG)
- Die-cast housing
- Channel selection keys at the microphone
- Channel setting via rotary control
- Connections: External speaker

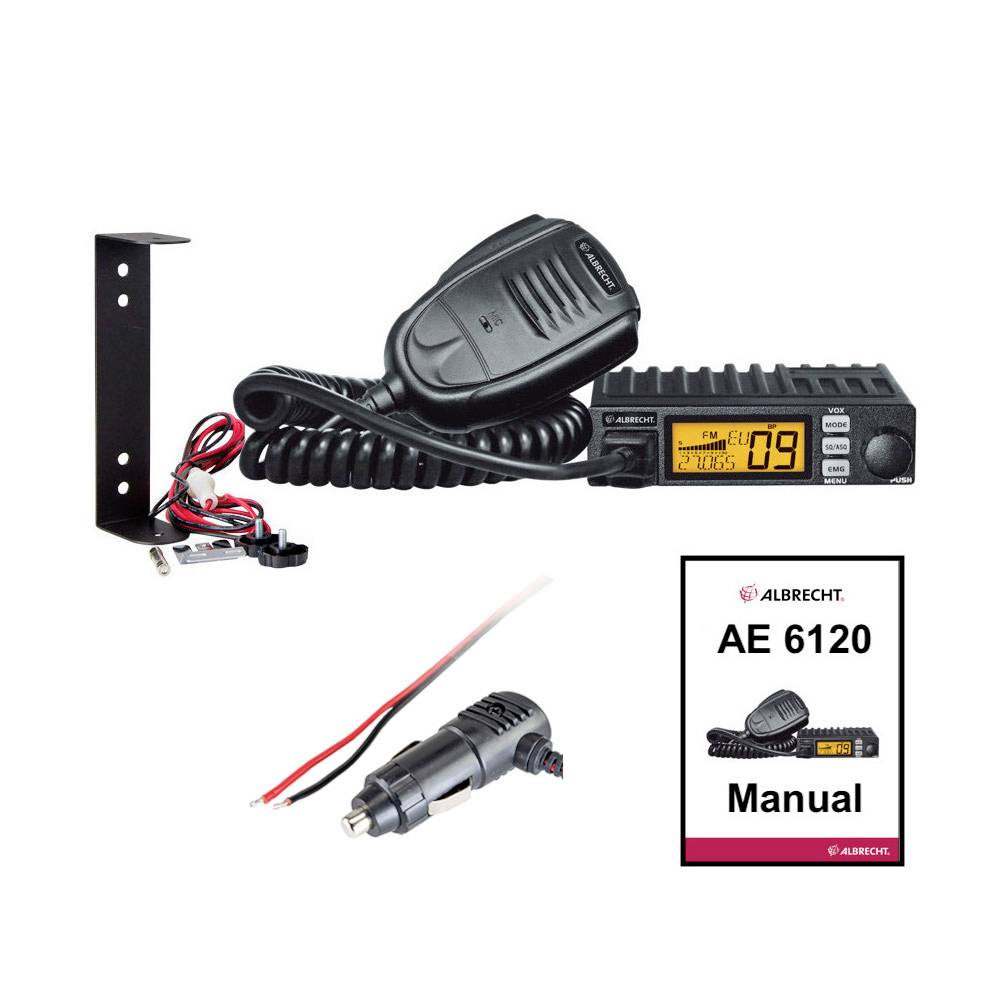

Scope of delivery
- 1x AE 6120 VOX CB radio
- 2 Power cable (cigarette lighter or fixed wiring)
- Microphone with RJ45 Western plug
- Microphone holder
- Mounting bracket
- User manual.
Hints
OPTIONAL ACCESSORY • Article No.: 71150 wireless speakers • Article No.: 41986 spare microphone
