Buy MAAS Elektronik KCB-4000 3064 CB radio

A radio transceiver with an attached microphone. The display shows numbers and letters indicating specific settings.

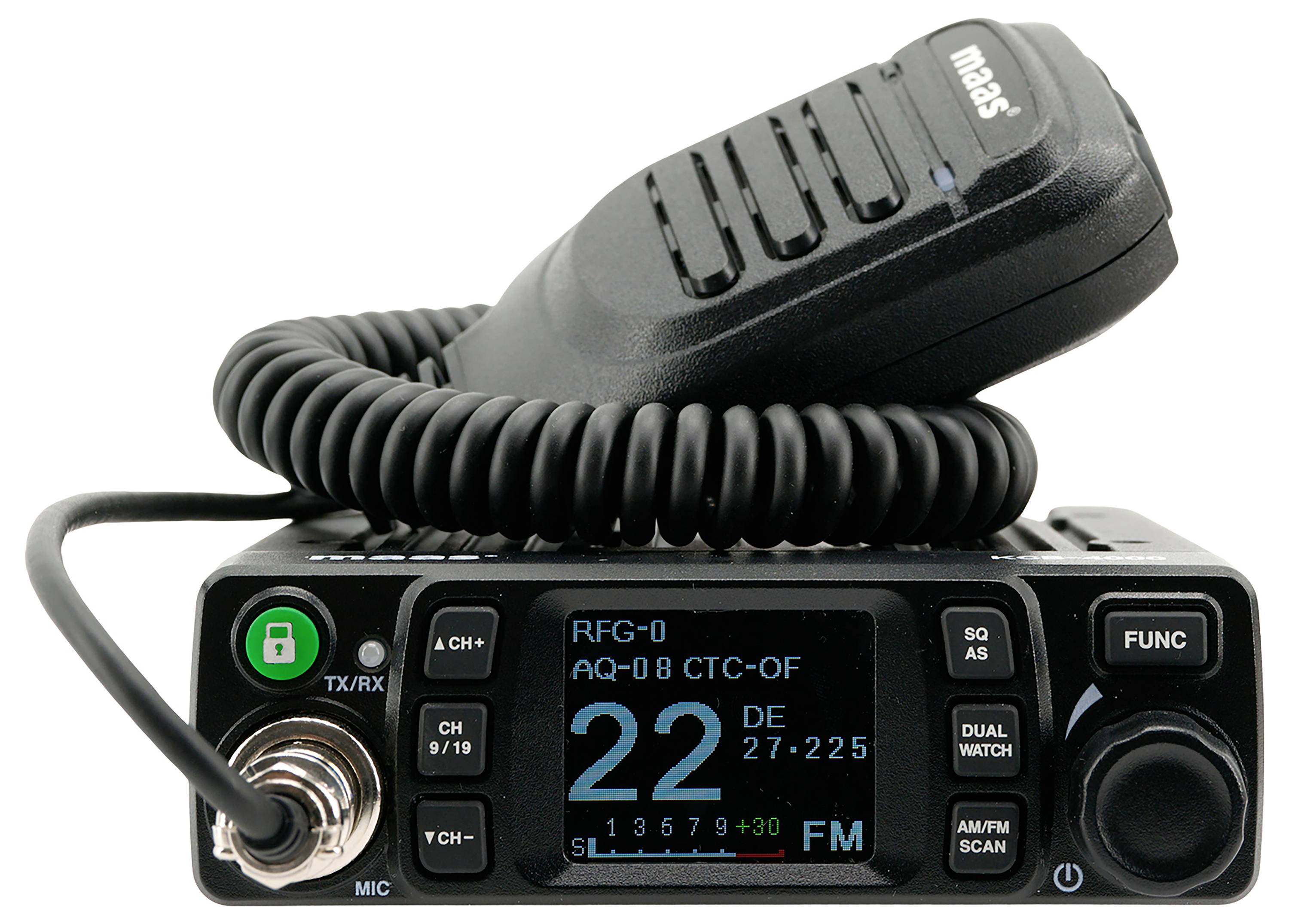

A two-way radio with a microphone. The display shows the selected frequency range. Buttons for frequency control and volume are present.

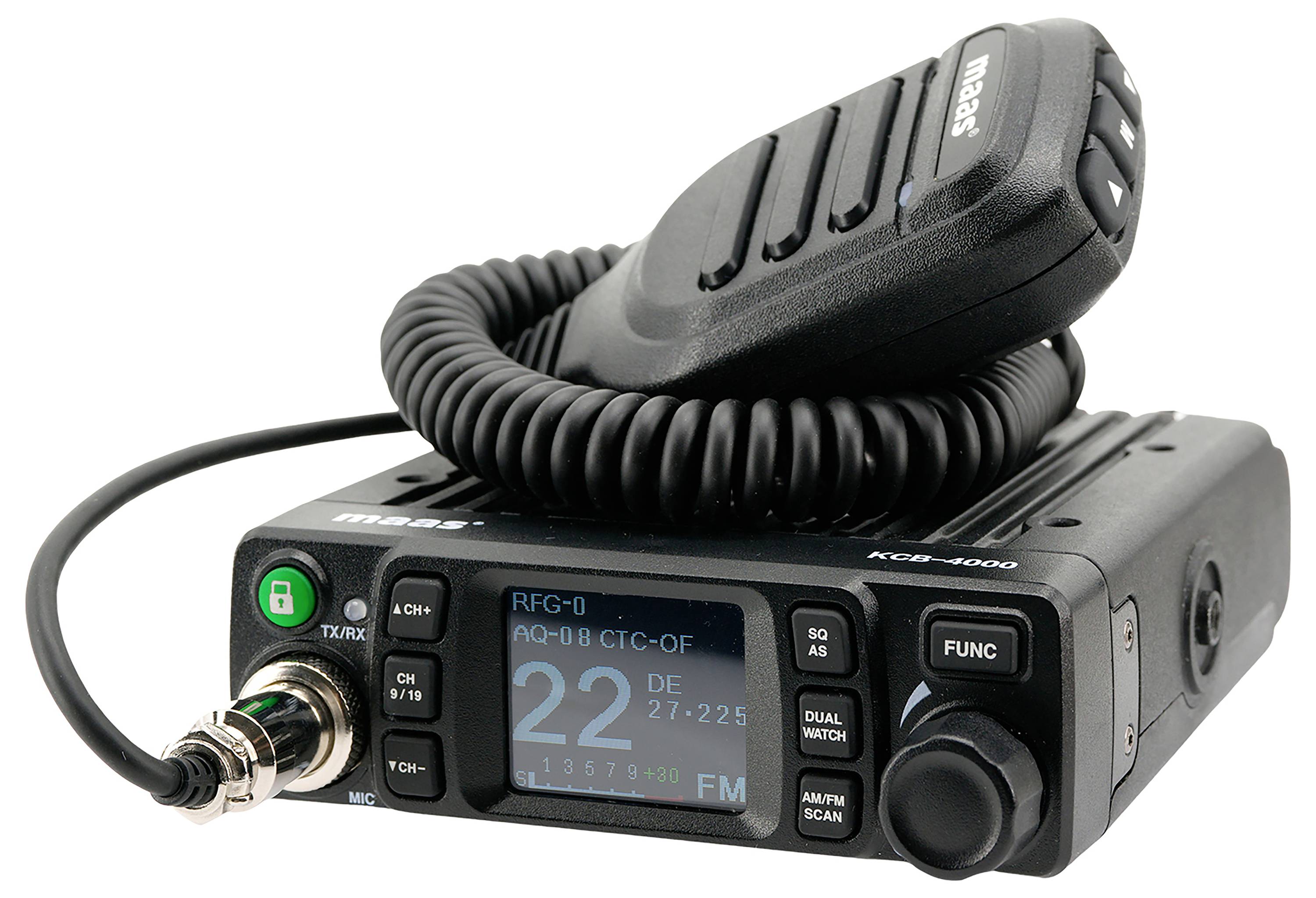

A black radio with a display shows 'RFG:0 AQ:0 CTC:OF'. It has a microphone with a cable lying on top of the device.

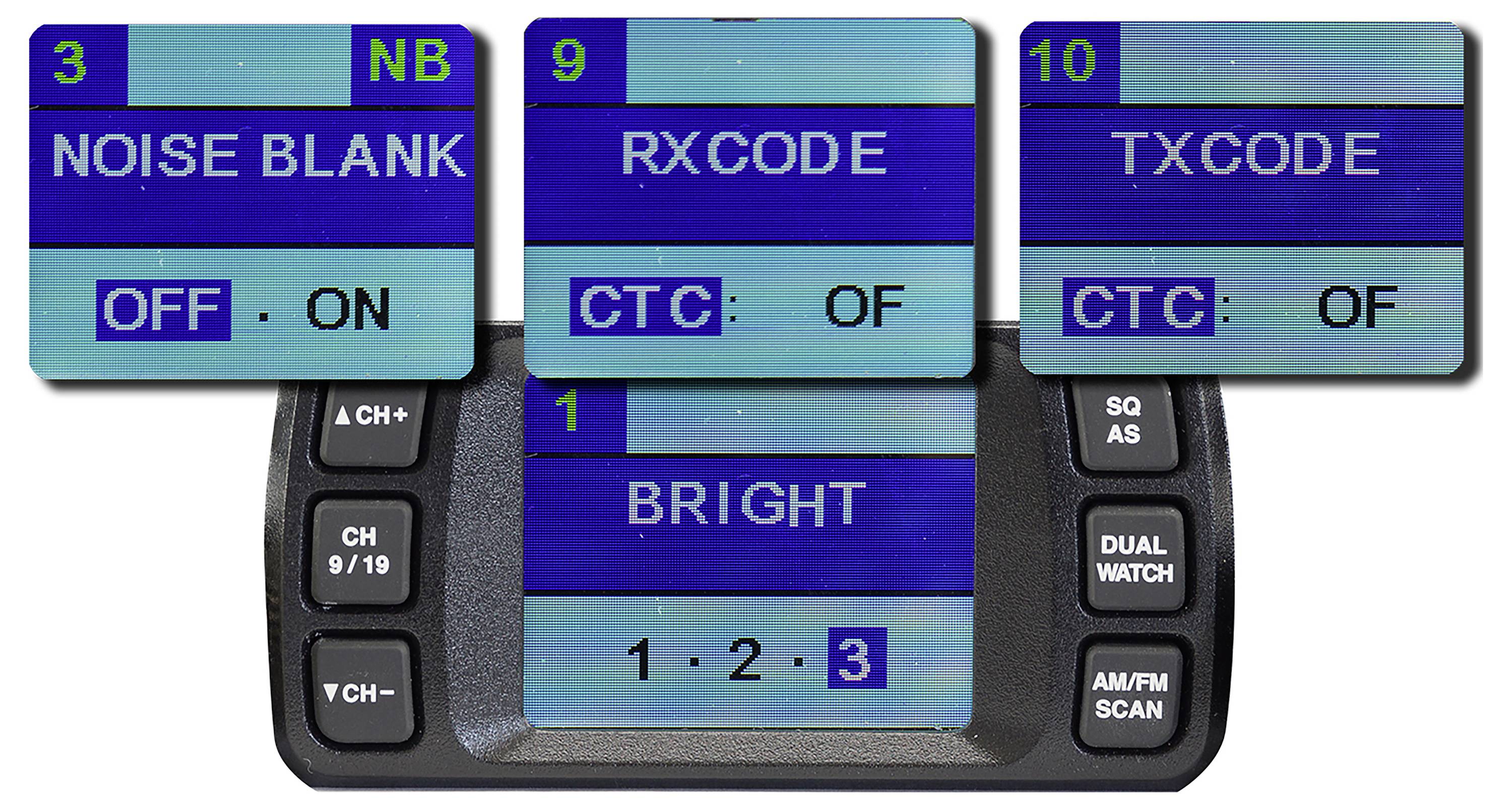

A radio transceiver display shows three screens: 'NOISE BLANK: OFF', 'RXCODE: OF', 'BRIGHT: 1, 2, 3'. Keypad below.

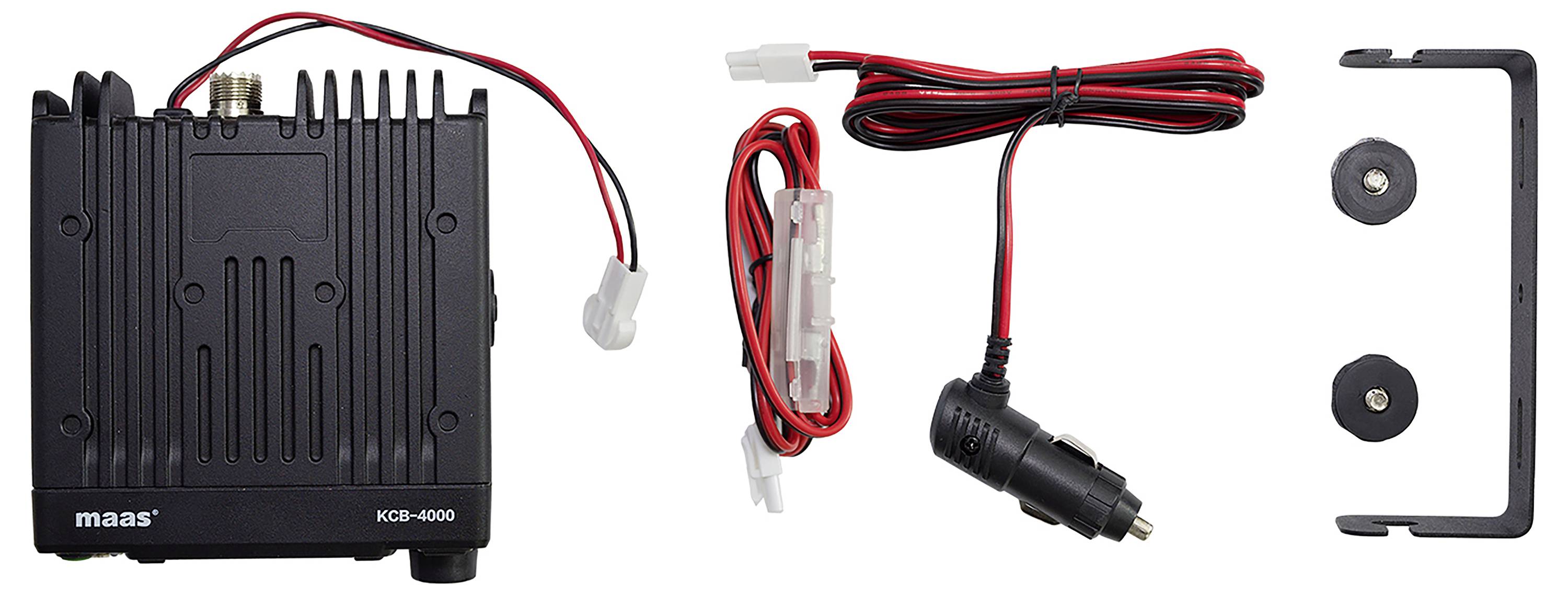

Radio equipment with accessories: Main device on the left, cable with fuse and cigarette lighter plug in the middle, mounting brackets on the right.

1/5

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 88.23 / piece)

€ 88.23

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

MAAS Elektronik KCB-4000 CB radio

Multi-channel device
Power supply 12 or 24 volt DC voltage
Simple menu navigation
Large TFT color display 3 steps can be dimmed with color display of all important settings
Simultaneous display of channel and frequency
Built-in digital S Meter
Automatic or manually adjustable noise limiter
Key Lock
Integrated ANL noise suppression
High-cut audio filter

Technical specifications

Product type: CB radio

Features: 12 V
Speaker/microphone jack
Microphone jack
Automatic squelch
Hands-free
Roger Beep
Signal strength meter
Scan mode
VOX
2-channel monitoring

Transfer type: Radio

Frequency: 27 MHz

Channels: 40 FM / 40 AM
80 FM / 40 AM

Transmitter power: 4 W

Width: 126 mm

Height: 39 mm

Depth: 140 mm

Weight: 820 g

Dim: (W x H x D) 126 x 39 x 140 mm

Documents & Downloads

Datasheet

Datasheet 3349320 MAAS Elektronik KCB-4000 3064 CB radio

User & Safety Instructions

User & Safety Instructions 3349320 MAAS Elektronik KCB-4000 3064 CB radio

Description

MAAS KCB-4000 compact and robust CB-radio with fully equipped. The device has a large illuminated LCD-color display, on which all the important information is clearly displayed. The new MAAS KCB-4000 comes with voice-controlled Vox microphone, which can be set in several stages in response sensitivity and delay. A extensively equipped CB radio for cars or trucks, suitable for 12 volt or 24 volt power supply.

This text is machine translated.

Features

Noise Bare noise suppression
Time out timer transmission time limiter
Channel-9/19-Direct emergency call switch
Dual Watch dual-channel monitoring
Channel search (scan)
Roger beep
RF gain 9-stage reception control
AUTO ON automatic switch-on mode
CTCSS/ DCS pilot tones - 50 CTCSS codes and 104 DCS codes
VOX hands-free via microphone function
Up-/down keys for channel selection
Microphone with built-in channel selection keys and Vox function
Connections for antenna PL and external speakers 3.5 mm
2 power cables can be removed once with cigarette lighter and for direct 12 / 24 volt connection
