Ansmann 5311123 Mains PSU (adjustable voltage) 3 V DC, 4.5 V DC, 5 V DC, 6 V DC, 7.5 V DC, 9 V DC, 12 V DC 1500 mA 18 W

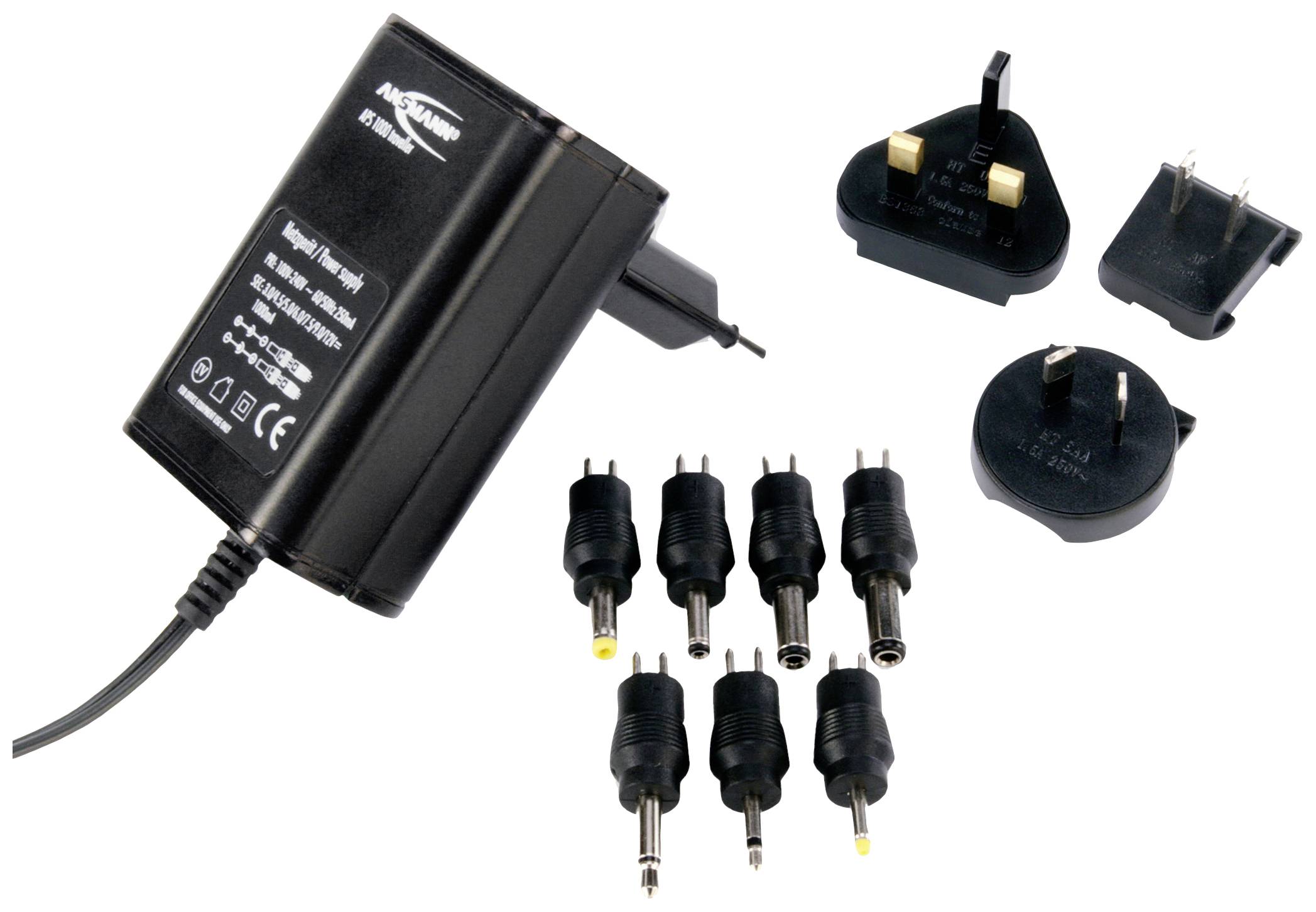

Various adaptor plugs and a charger, suitable for different power sockets and device connections.
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov
15 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 33.99 / piece)
€ 33.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Mains PSU (adjustable voltage)

Used at

Mains socket

Max. output current

1500 mA

Output voltage

3 V DC

4.5 V DC

5 V DC

6 V DC

7.5 V DC

9 V DC

12 V DC

Output current (max.) - rounded

1.5 A

Output

2.35/0.75 coaxial connector

3.5/1.35 coaxial connector

4.0/1.7 coaxial connector

5.0/2.1 coaxial connector

5.5/2.5 coaxial connector

2.5 jack

3.5 jack

18 W

Input voltage (max.)

240 V AC

Min. input voltage

100 V AC

Weight

216 g

Cable length

1.80 m

Type

APS 1500 Traveller

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2576046 Ansmann 5311123 Mains PSU (adjustable voltage) 3 V DC, 4.5 V DC, 5 V DC, 6 V DC, 7.5 V DC, 9 V DC, 12 V DC 1500 mA 18 W

User & Safety Instructions

User & Safety Instructions 2576046 Ansmann 5311123 Mains PSU (adjustable voltage) 3 V DC, 4.5 V DC, 5 V DC, 6 V DC, 7.5 V DC, 9 V DC, 12 V DC 1500 mA 18 W

Warranty Terms

Warranty Terms 2576046 Ansmann 5311123 Mains PSU (adjustable voltage) 3 V DC, 4.5 V DC, 5 V DC, 6 V DC, 7.5 V DC, 9 V DC, 12 V DC 1500 mA 18 W

Description

Thanks to the wide-range input (100-240V AC), the power supply can be used worldwide. The following output voltages can be set by means of a rotary switch: 3 V/4.5 V/5 V/ 6 V/7.5 V/9 V/12 V DC.

This text is machine translated.

Features

  • It can be used world wideRegulated voltageCircuit breaker

Scope of delivery

  • APS 1500 traveller with 1.8m cable7-piece secondary plug set
