Ansmann USB-Ladegerät Travel Charger TC315 / 3 A / 15,5 W / 3 Port USB charger 15.5 W USB-A socket Smart IC Black Indoor
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
Only 6 Piece(s) available
Highlights & Details
Ansmann USB-Ladegerät Travel Charger TC315 / 3 A / 15,5 W / 3 Port USB charger
- USB charger with 3 USB ports (1× USB A and 2× USB C) and 15 W
- Compatible interchangeable plugs for the countries US/UK / EU
- Intelligent charge control ensures optimized charging
- Multisafe technology protects your terminals and the charger
- Suitable for devices, which can be charged or operated via USB
- Input: 100 - 240V AC Wide range input allows for worldwide use
- Voltage range 5 V DC
- Output 15 W
Technical specifications
- Multisafe technology (short circuit protection, overvoltage protection, overload protection)
- Compact design
- Smart IC (detects the maximum charging current of the terminal)
- Operating temperature 0 °C up to 25 °C
- Product type
USB charger
15.5 W
- Inputs
Europlug
- Input voltage
240 V
100 V AC
- Input voltage
100-240 V/50 Hz
- No. of outputs
3 x
- Outputs
USB-A socket
- Output voltage
5 V DC
- Output current (max.) - rounded
3.1 A
- Max. output current
3.1 A
- Max. output current per channel
2.4 A
- Type
USB-Ladegerät Travel Charger TC315 / 3 A / 15,5 W / 3 Port
- Suitable for
Tablet
Smartphone
PC
- Suitable for
Alle über USB ladbaren Endgeräte
- Dim
(L x W x H) 85 x 44 x 25 mm
- Height
25 mm
- Length
85 mm
- Width
44 mm
- Weight
55 g
- Factory colour
Black
- Type
Compact travel charger with 3 USB ports
- EuP Status
Level VI
- Used at
Indoors
- Charging method
Smart IC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3638638 Ansmann USB-Ladegerät Travel Charger TC315 / 3 A / 15,5 W / 3 Port USB charger 15.5 W USB-A socket Smart IC Black Indoor
User & Safety Instructions
User & Safety Instructions 3638638 Ansmann USB-Ladegerät Travel Charger TC315 / 3 A / 15,5 W / 3 Port USB charger 15.5 W USB-A socket Smart IC Black Indoor
Description
The Ansmann USB charger with 3 USB ports (1× USB A and 2× USB C) and an output of 15 W offers the ideal charging solution for your application. Through the intelligent charge control and Multisafe technology your application is optimized and charged safely. The very low standby consumption makes this charger not only efficient, but also economical.

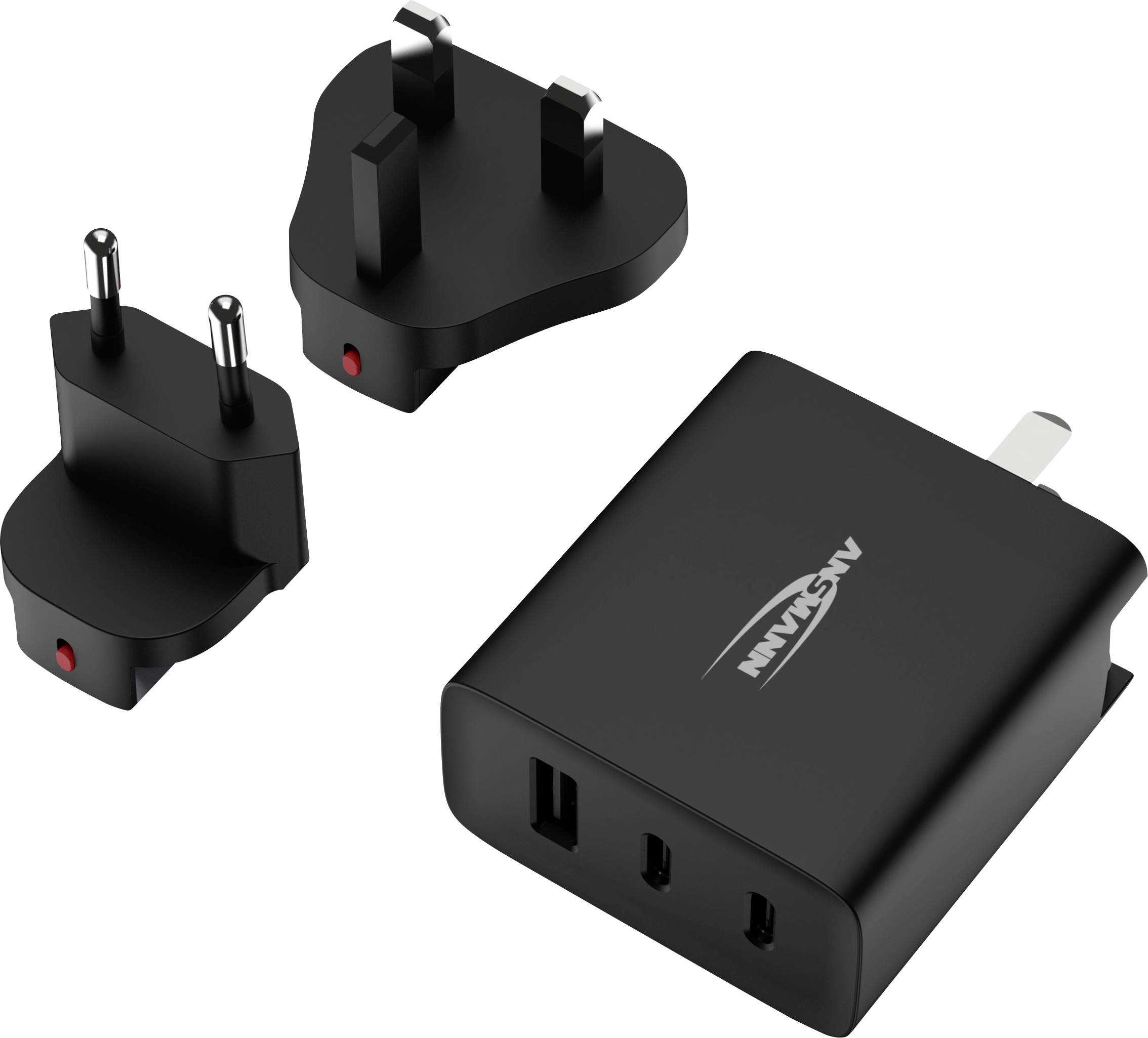

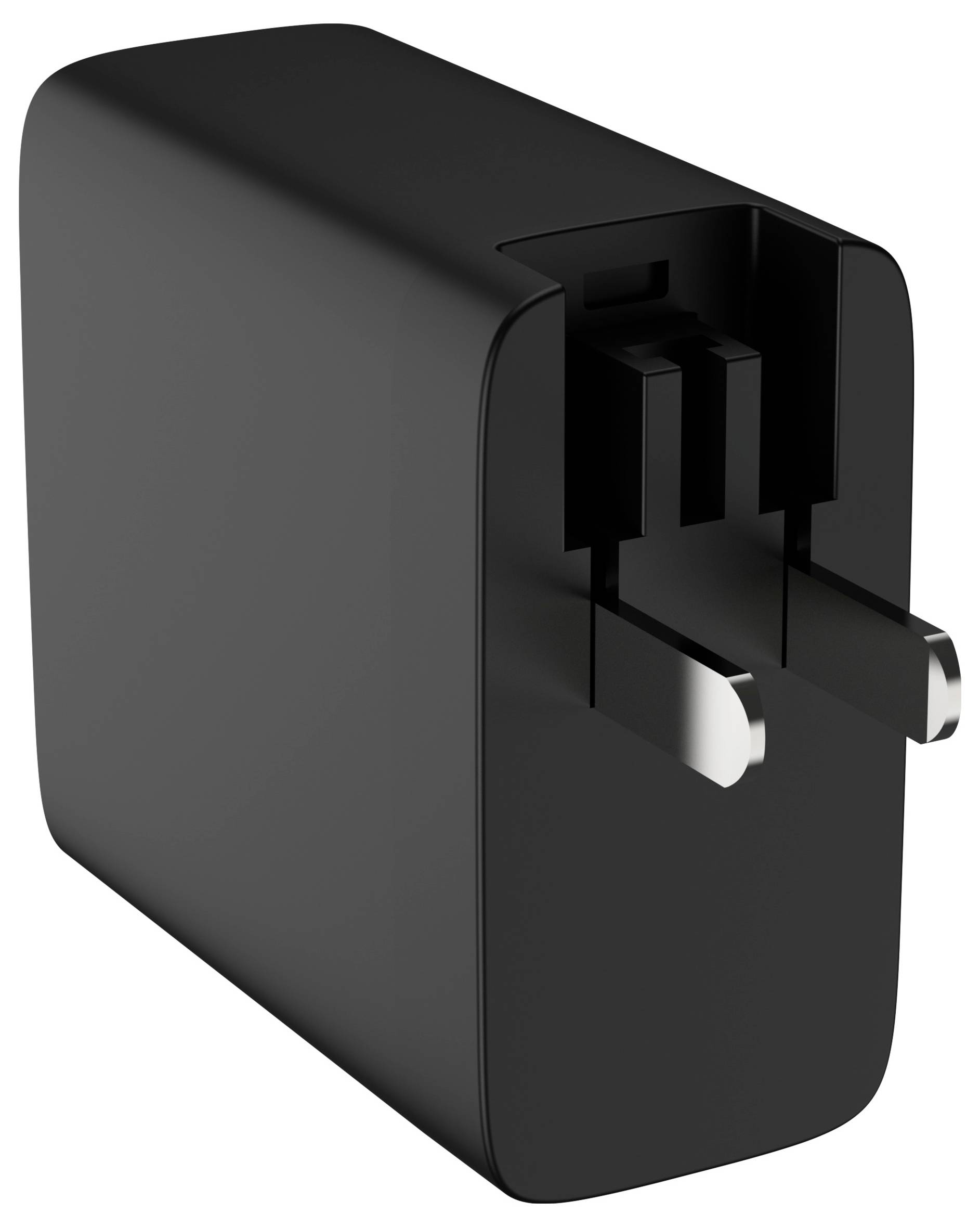

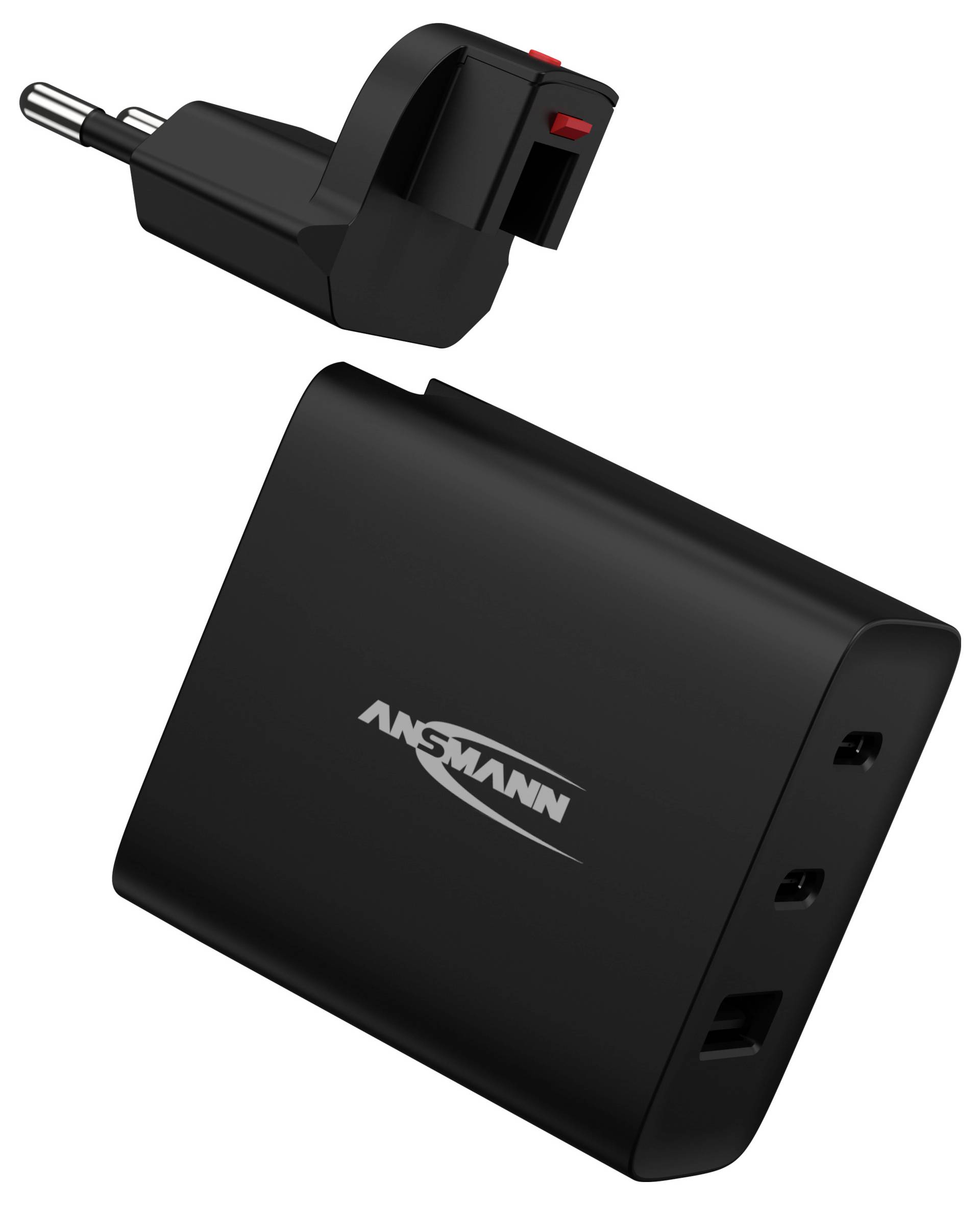

The device has a retractable US plug, as a result of which it fits very compact and space-saving in every pocket. The interchangeable plugs for UK and EU are simply pushed onto the retracted US plug. Thus, in most countries of the world they are connected in seconds to the local power supply and can charge up to 3 USB devices at the same time as usual.
This text is machine translated.
The device has a retractable US plug, as a result of which it fits very compact and space-saving in every pocket. The interchangeable plugs for UK and EU are simply pushed onto the retracted US plug. Thus, in most countries of the world they are connected in seconds to the local power supply and can charge up to 3 USB devices at the same time as usual.
This text is machine translated.

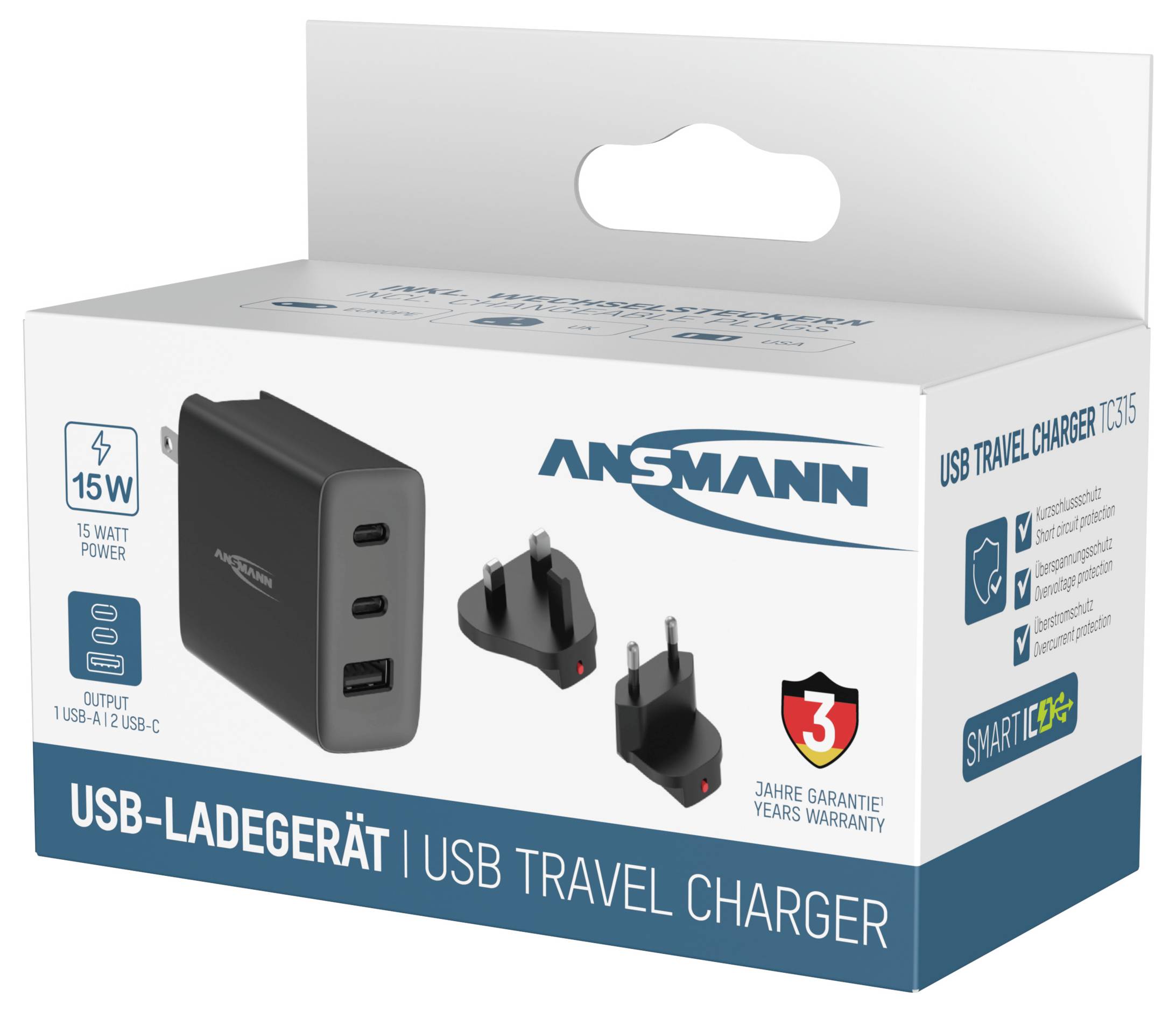

Scope of delivery
- Travel charger TC315
- User manual
