Name: Anybus 024709 Schutzabdeckung für Bolt-Unterseite und Montagehalterung Wireless Bolt 1 pc(s)
Brand: Anybus
SKU: 2621276
Availability: BackOrder

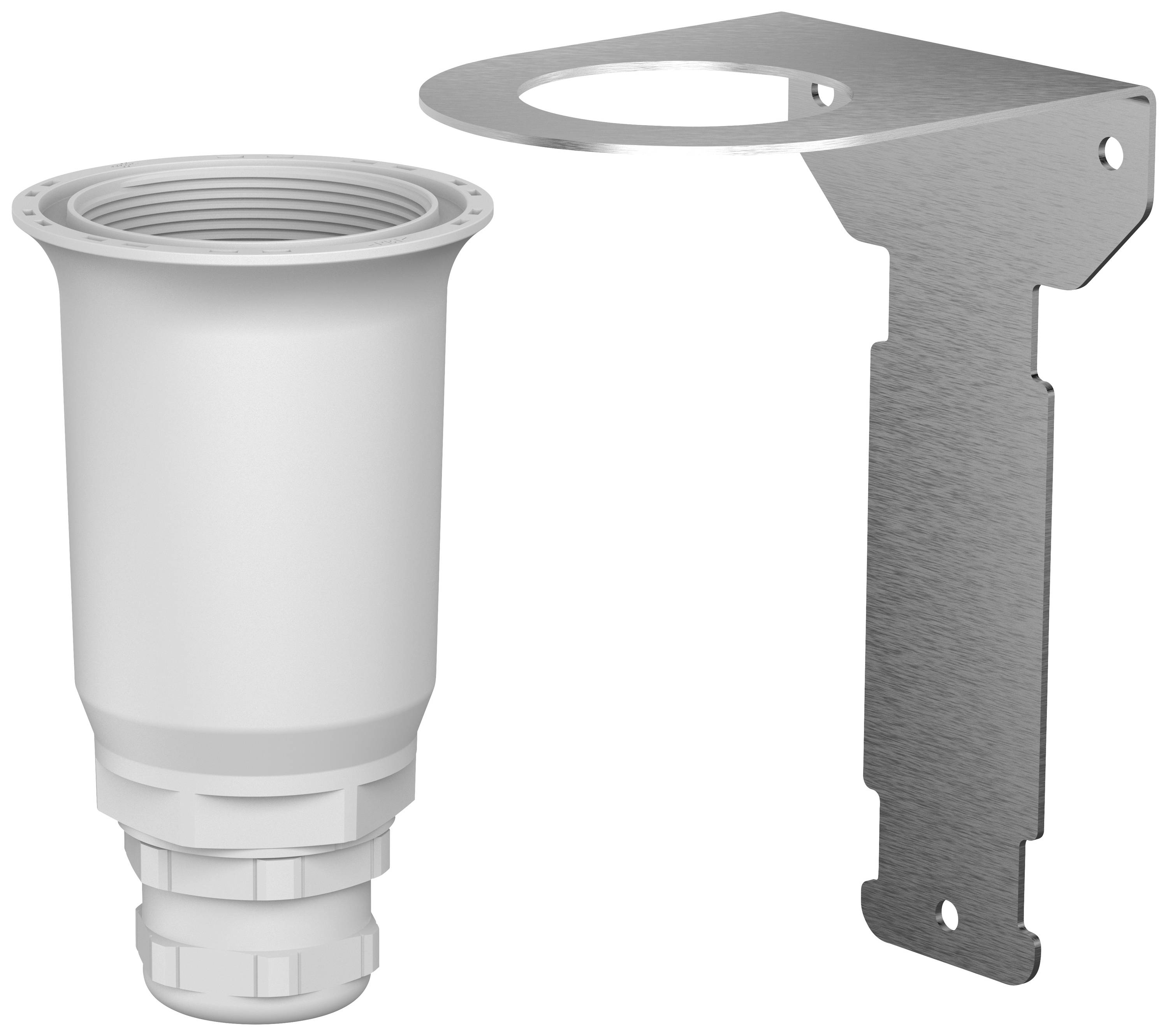

Metal bracket and plastic funnel, loosely placed side by side, presumably for technical or installation purposes.

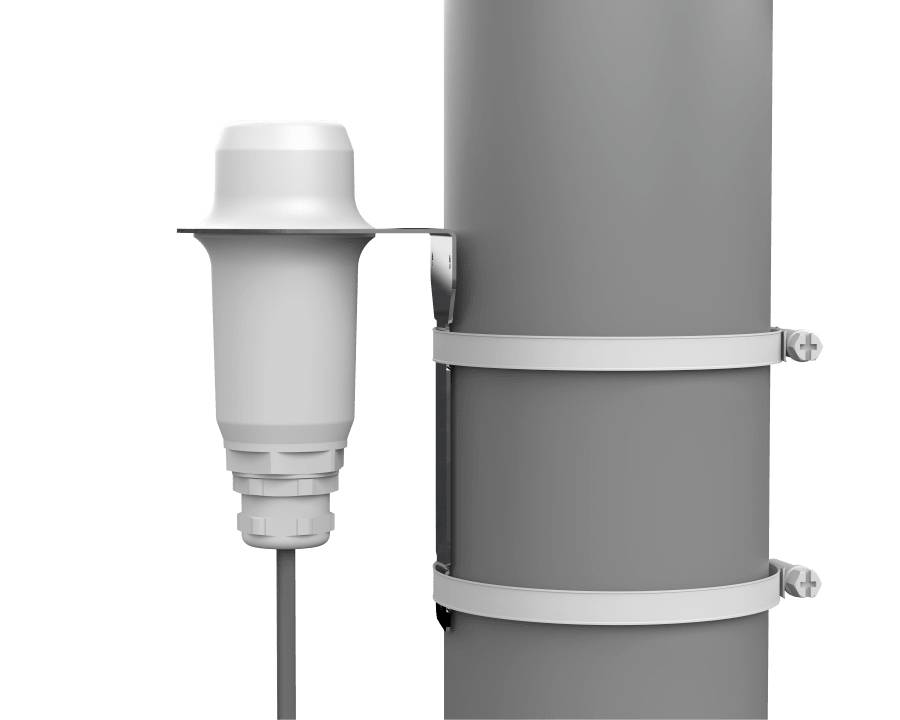

A sensor is attached to a metal pipe. The mounting bracket secures it firmly to the pipe. Cables run from the sensor, most likely for data transmission.

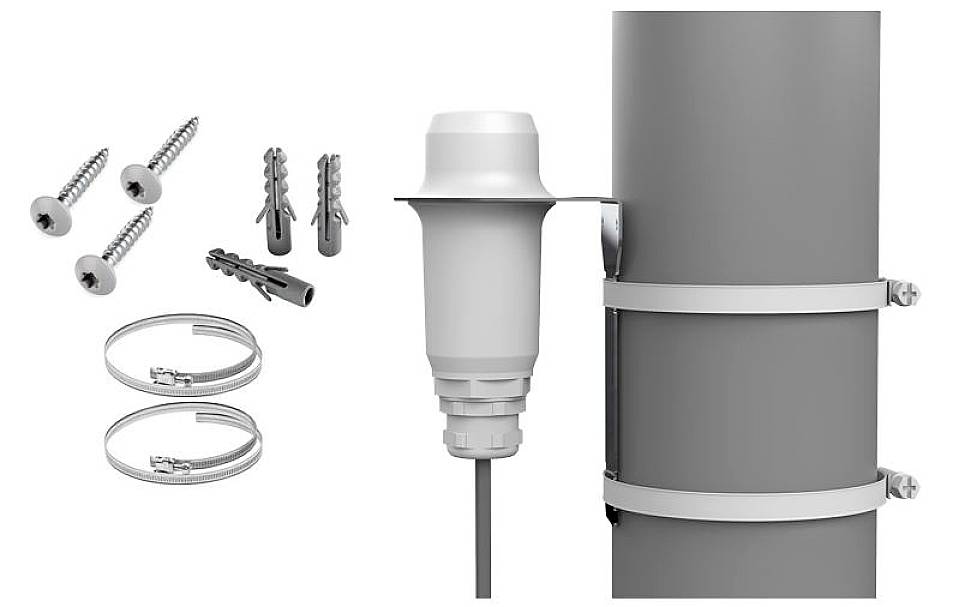

Mounting kit with screws, wall plugs, clips and bracket for securing a device to a pole.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 18 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 124.99 / piece)

€ 124.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Protective covering for the Anybus wireless Bolt

Features & Benefits Protection class IP66/67 for the entire AnyBus Wireless Bolt Durable and robust materials for the outdoor area enables wall or mast mounting.

Technical specifications

Technical dataWeight: 440 gMaterials: Protective cover for bottom of bolt: NCSS1002-B PBT Valox 357x-7001 (F1). Suitable for outdoor use with regard to exposure to UV light, water exposure and immersion in accordance with UL 476C.Mounting bracket, clamps and screws: Stainless steelDowel: NylonCable gland: PCDimensions: Protective cover for bottom of bolt: Height (without cable gland): 90 mm, diameter (max.): 67.6 mmMounting bracket: Height 150 mm, width 80 mm, depth 100 mm, 3x screw holes Ø 5.2 mmScrews: Ø 4.8 x 38 mmClamps: Clips for masts with a diameter of 50-165 mm, width: 9 mmCable gland: Cable gland of the protective cover for stud underside: M32, rubber seal with 2 cable holes for Ø 6 mm +- 0.1 mm, one rubber blind plug: Ø 6 mm, O-ring: M32x2.5Dowel: For 8 mm drill hole. Length 40 mm

Product type: Wireless Bolt

Type: Schutzabdeckung für Bolt-Unterseite und Montagehalterung

Manufacturer part #: 024709

Documents & Downloads

Datasheet

Datasheet 2621276 Anybus 024709 Schutzabdeckung für Bolt-Unterseite und Montagehalterung Wireless Bolt 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2621276 Anybus 024709 Schutzabdeckung für Bolt-Unterseite und Montagehalterung Wireless Bolt 1 pc(s)

Description

The protective cover for the bottom of the bolt provides the complete AnyBus Wireless Bolt with IP66/67 protection. The protective cover is ideal for use outdoors or in harsh and demanding ambient conditions. The accessories are available in two versions:1. Only the protection cover for the bolt bottom (part number 2621275). Mounting the stud with protective cover requires a flat surface with a round opening of 50.5 mm diameter. 2. Protective cover for the bottom of the bolt with stainless steel mounting bracket for wall or mast mounting (article number 2621276).Typical use cases1. Optimum mounting of AnyBus Wireless Bolt with regard to the radio signal2. Wall or mast mounting with mounting bracket (part number 2621276)
