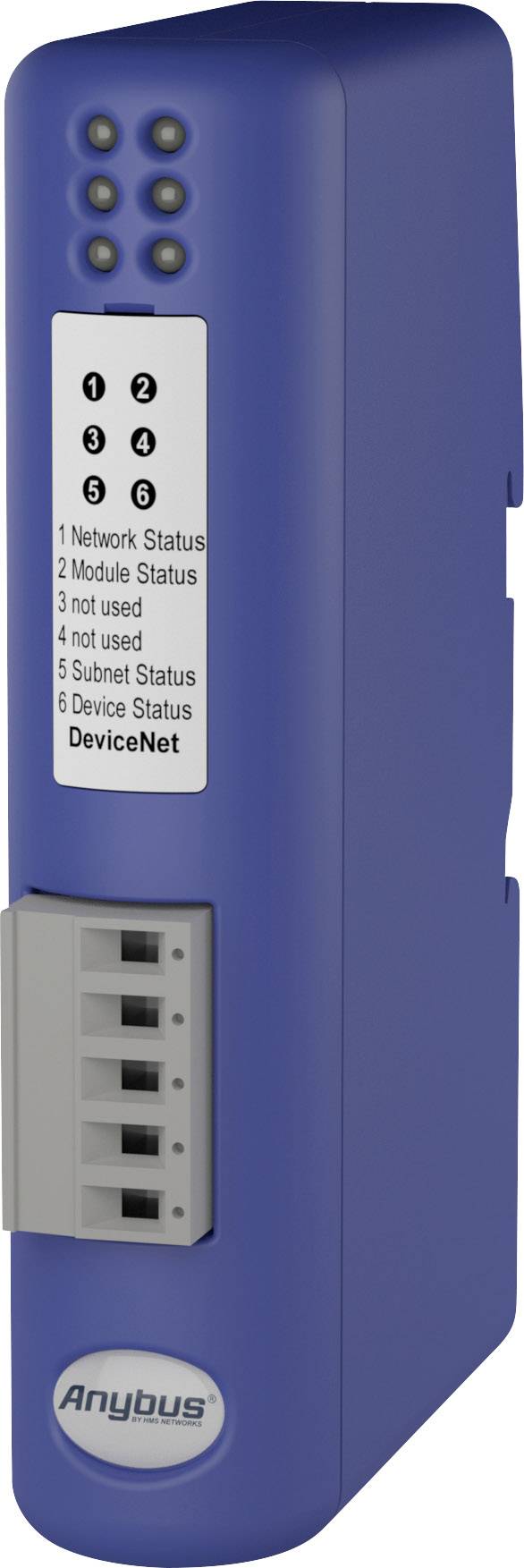

Anybus AB7313 CAN/DeviceNet CAN bus CAN bus, USB, Sub-D9 galvanic isolation 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 609.24 / piece)
€ 609.24
plus VAT.
Technical specifications
- Product type
CAN bus
- Interfaces
CAN bus
USB
Sub-D9 galvanic isolation
- Type
CAN/DeviceNet
- Operating voltage
24 V DC
- Max. operating temperature
+55 °C
- Min. operating temperature
-25 °C
- Operating temperature
-25 up to +55 °C
- Dim
(W x H) 75 mm x 25 mm
- Max. current consumption
150 mA
- Height
25 mm
- Width
75 mm
- Manufacturer part #
AB7313
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2274477 Anybus AB7313 CAN/DeviceNet CAN bus CAN bus, USB, Sub-D9 galvanic isolation 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2274477 Anybus AB7313 CAN/DeviceNet CAN bus CAN bus, USB, Sub-D9 galvanic isolation 24 V DC 1 pc(s)
Description
AnyBus Communicator CAN allows you to integrate CAN-based field devices into a DeviceNet network. No changes to the serial device are necessary for this.
The AnyBus Communicator CAN is a proven and reliable protocol converter that connects non-networked devices that support CAN-based protocols to DeviceNet. The Communicator performs intelligent protocol conversion and provides the CAN data of the higher-level PLC as I/O data.
The Communicator is a compact stand-alone gateway for IP20 and DIN rail mounting that requires a 24-volt power supply. It meets the current DeviceNet specification and has been successfully tested for network compatibility.
TYPICAL APPLICATIONS
Typical applications include frequency converters, sensors, actuators, operator terminals, bar code readers, RFID readers or industrial scales.
Features and benefits
Machine builders / device manufacturers do not need a DeviceNet interface in their devices.
Enables system integrators to integrate older CAN-based automation devices into DeviceNet networks (retrofit)
No hardware or software changes are required on the automation device
Compatible with all PLCs that support DeviceNet
Complete conversion of the CAN protocol, no additional PLC function blocks necessary
Can frames can be defined flexibly for query/response and product/resume protocols
Because of the intelligent I/O data mapping in Communicator, devices with slow CAN communication can also be integrated into the parent network
Qualified, personalized support
This text is machine translated.
The AnyBus Communicator CAN is a proven and reliable protocol converter that connects non-networked devices that support CAN-based protocols to DeviceNet. The Communicator performs intelligent protocol conversion and provides the CAN data of the higher-level PLC as I/O data.
The Communicator is a compact stand-alone gateway for IP20 and DIN rail mounting that requires a 24-volt power supply. It meets the current DeviceNet specification and has been successfully tested for network compatibility.
TYPICAL APPLICATIONS
Typical applications include frequency converters, sensors, actuators, operator terminals, bar code readers, RFID readers or industrial scales.
Features and benefits
Machine builders / device manufacturers do not need a DeviceNet interface in their devices.
Enables system integrators to integrate older CAN-based automation devices into DeviceNet networks (retrofit)
No hardware or software changes are required on the automation device
Compatible with all PLCs that support DeviceNet
Complete conversion of the CAN protocol, no additional PLC function blocks necessary
Can frames can be defined flexibly for query/response and product/resume protocols
Because of the intelligent I/O data mapping in Communicator, devices with slow CAN communication can also be integrated into the parent network
Qualified, personalized support
This text is machine translated.
Scope of delivery
- Quick start instructions
- D-Sub connection for CAN
- USB configuration cable
- Configuration software available via download
- (Power supply not included)
