Anybus AWB2031 Wireless Bolt White RJ45 PoE "Sunbolt" Wireless Bolt RJ-45, Wi-Fi, Bluetooth, Ethernet 9 V DC, 12 V DC, 2
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 475.00 / piece)
€ 475.00
incl. VAT
Only 3 Piece(s) available
Technical specifications
- Output: 16dBm Wi-Fi - 10dBm Bluetooth - 7 dBm Bluetooth Low Energy
- Power consumption: 0.7W (idle), 1.7W max. (Wif-Fi: 54 mA @ 24V DC, Bluetooth: 36 mA @ 24V DC)
- Housing material: FRP/PBT/FRPBT/PC-ABS
- Protection ratings: IP67 (parts not inserted), IP21 (inserted parts)
- Fitting: M50 screw and nut (50.5 mm hole required)
- Max. range: 100 m
- Built-in antenna
- Connector types: 2x9-pin, 3.5mm, Phoenix DFMC 1.5/9-ST-3.5, push-fit spring-loaded terminal
- Vibration tolerance tested by sinus waves complying with IEC 60068-2-6: 2007 using the following set-up: 3 perpendicular axes (X, Y, Z), duration: cycles per axis, sweep rate: 1 Oct/min, mode: operating, frequency range:5-500Hz, distance ± 3.5 mm, 2g acceleration. Shock resistance tested in compliance with IEC 60068-2-27: 2008 using th follwing set-up: sine half wa ves, no. of impacts ±3 for each axis, mode: operating, 3 axes X, Y, Z, acceleration: 30mps, duration: 11ms.
- Product type
Wireless Bolt
- Interfaces
RJ-45
Wi-Fi
Bluetooth
Ethernet
- Type
Wireless Bolt White RJ45 PoE "Sunbolt"
- Operating voltage
9 V DC
12 V DC
24 V DC
30 V DC
- Max. operating temperature
65 °C
- Min. operating temperature
-40 °C
- Operating temperature
-40 up to 65 °C
- Manufacturer part #
AWB2031
- Weight
0.0840 kg
- UKCA
yes
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 1899849 Anybus AWB2031 Wireless Bolt White RJ45 PoE "Sunbolt" Wireless Bolt RJ-45, Wi-Fi, Bluetooth, Ethernet 9 V DC, 12 V DC, 2
User & Safety Instructions
User & Safety Instructions 1899849 Anybus AWB2031 Wireless Bolt White RJ45 PoE "Sunbolt" Wireless Bolt RJ-45, Wi-Fi, Bluetooth, Ethernet 9 V DC, 12 V DC, 2
Description

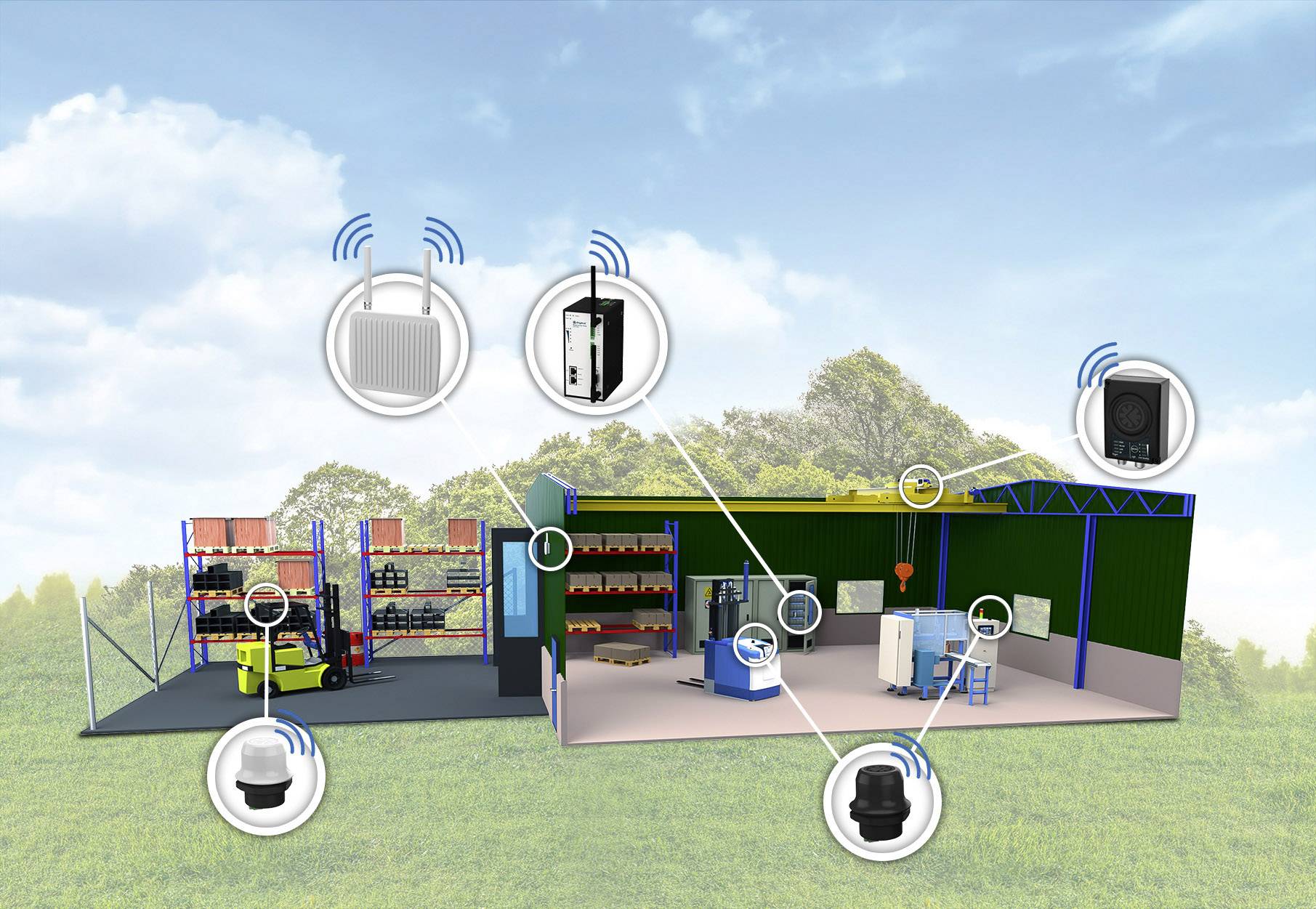

With the Anybus Wireless Bolt you can connect the control of your machine to a wireless network. Attach the Bolt to production equipment or an electrical enclosure and start operating machinery via Bluetooth®, Bluetooth Low Energy® or Wi-Fi (WLAN).
The Anybus Wireless Bolt is connected to the machine control via Ethernet cable and supports not only the BACnet/IP, PROFINET, Ethernet/IP and Modbus TCP industrial Ethernet protocols but also the TCP/IP and UDP protocols.
CONFIGURE MACHINES WIRELESS
Anybus Wireless Bolt allows a remote set-up and operation of equipment, using browser-based control apps on a wide range of mobile devices (laptop, smartphone etc). The Bolt signal range covers up to 100 m, which means you can put your own BYOD (Bring Your Own Device) policys in place, thereby reducing the number of expensive fixed HMI dashboards.
ROUND COMPLETE PACKAGE
With the Anybus Wireless Bolt you get a complete package that combines connection, communications processor and integrated antenna in one unit.
Features and Benefits:
- Configure machines and troubleshoot over a wireless network
- Machine access with laptop, tablet or smartphone as an alternative to expensive fixed HMIs
- Connection of mobile transport vehicles such as automated guided vehicles (AGVs)
- Fast Roaming (IEEE 802.11r), High link speed (IEEE 802.11n)
- Compatible with the Anybus Wireless Bridge - a wireless product for cable replacement
- Connect to cloud service or integrate live data into the SCADA system
- Bridges Ethernet and the following protocols: BACnet/IP, Ethernet/IP, Modbus-TCP, PROFINET, TCP/UDP. (PROFINET only in tunnel mode or MAC address cloning mode)
- 2.4 GHz WLAN enables easy connection establishment and identifies interference-free channels
- Simultaneous operation of Bluetooth and WLAN enables The Bridging of the two networks
- Security functions for safe operation in industrial environments
- Power supply: PoE (Power over Ethernet) and/or 3-pin 12-36 VDC connection
- also available in direct sunlight as a "Sunbolt" version, which is designed for higher ambient temperatures than the standard version
- Supports WLAN, Bluetooth classic and Bluetooth Low Energy.
This text is machine translated.
The Anybus Wireless Bolt is connected to the machine control via Ethernet cable and supports not only the BACnet/IP, PROFINET, Ethernet/IP and Modbus TCP industrial Ethernet protocols but also the TCP/IP and UDP protocols.
CONFIGURE MACHINES WIRELESS
Anybus Wireless Bolt allows a remote set-up and operation of equipment, using browser-based control apps on a wide range of mobile devices (laptop, smartphone etc). The Bolt signal range covers up to 100 m, which means you can put your own BYOD (Bring Your Own Device) policys in place, thereby reducing the number of expensive fixed HMI dashboards.
ROUND COMPLETE PACKAGE
With the Anybus Wireless Bolt you get a complete package that combines connection, communications processor and integrated antenna in one unit.
Features and Benefits:
- Configure machines and troubleshoot over a wireless network
- Machine access with laptop, tablet or smartphone as an alternative to expensive fixed HMIs
- Connection of mobile transport vehicles such as automated guided vehicles (AGVs)
- Fast Roaming (IEEE 802.11r), High link speed (IEEE 802.11n)
- Compatible with the Anybus Wireless Bridge - a wireless product for cable replacement
- Connect to cloud service or integrate live data into the SCADA system
- Bridges Ethernet and the following protocols: BACnet/IP, Ethernet/IP, Modbus-TCP, PROFINET, TCP/UDP. (PROFINET only in tunnel mode or MAC address cloning mode)
- 2.4 GHz WLAN enables easy connection establishment and identifies interference-free channels
- Simultaneous operation of Bluetooth and WLAN enables The Bridging of the two networks
- Security functions for safe operation in industrial environments
- Power supply: PoE (Power over Ethernet) and/or 3-pin 12-36 VDC connection
- also available in direct sunlight as a "Sunbolt" version, which is designed for higher ambient temperatures than the standard version
- Supports WLAN, Bluetooth classic and Bluetooth Low Energy.
This text is machine translated.
