APC BE850G2-GR UPS 850 VA
EAN:
Part number:
Item no:
Number
Total (€ 142.85 / piece)
€ 142.85
plus VAT.
APC BE850G2-GR UPS 850 VA
Highlights & Details
- Ups system with surge protection for electronic devices and computers
Technical specifications
- Cable length: 1.8 metres.
- Maximum input current 6.0 A.
- Output connections: 6x Schuko CEE7 (power failure protection), 2x Schuko CEE 7 (overvoltage protection)
- Nominal output voltage: 230V
- Nominal input voltage : 230V
- Input frequency 47–63 Hz
- Full charge efficiency: 80.0%
- Maximum configurable power (watts): 520Watt / 850VA
- Full charge efficiency: 80.0%
- Output frequency (line-synchronous) : 47 - 63 Hz synchronized
- Type of waveform: Gradual approach to a sine wave
- Transfer Time : 6 ms (typical), 10 ms (max.)
- Battery type: Lead-acid battery
- Typical charging time : 16 hours
- Expected battery life: 2 - 5 years
- Battery charger power (watts): 6 watts
- Data interface : USB
- Data Line Protection: Analogue telephone line for telephone/fax/modem/DSL (RJ45 plug), network connection - 10/100 Base-T Ethernet (RJ45 plug)
- Product type
UPS
- Nominal power
850 VA
- No. of outputs
6 x
2 x
- Output
PG socket
- Features
USB port
- Type
BE850G2-GR
- Width
130 mm
- Height
120 mm
- Depth
365 mm
- Weight
4.5 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2299283 APC BE850G2-GR UPS 850 VA
Warranty Terms
Warranty Terms 2299283 APC BE850G2-GR UPS 850 VA
Description
Adjustable voltage sensitivity: Adjusts the UPS to suit the power supply environment or generator application for optimal performance.
Warning Tones— notifies users when the power or UPS system status changes.
Automatic self-test: Periodic battery self-tests for timely replacement of used batteries.
Battery charge indicator: Indicates when the battery is charging and when the charging process is complete.
Battery failure notification: Early battery fault detection analyzes enable timely preventive maintenance.
Wiring problems indicator: This LED indicates potentially hazardous cabling problems in the flush-mounted cables.
Supports cold start: Allows temporary battery operation in the event of a power failure.
Surge protection devices: Protects connected devices against surges on data lines.
Battery disconnected notification: Gives a warning when a battery is not available for power supply.
Hot-swappable batteries: Provides continuous power supply to protect systems during battery replacement.
Approval by testing institutions: Ensures that the product has been tested and approved for safe operation with the connected devices of service providers and within the specified environment.

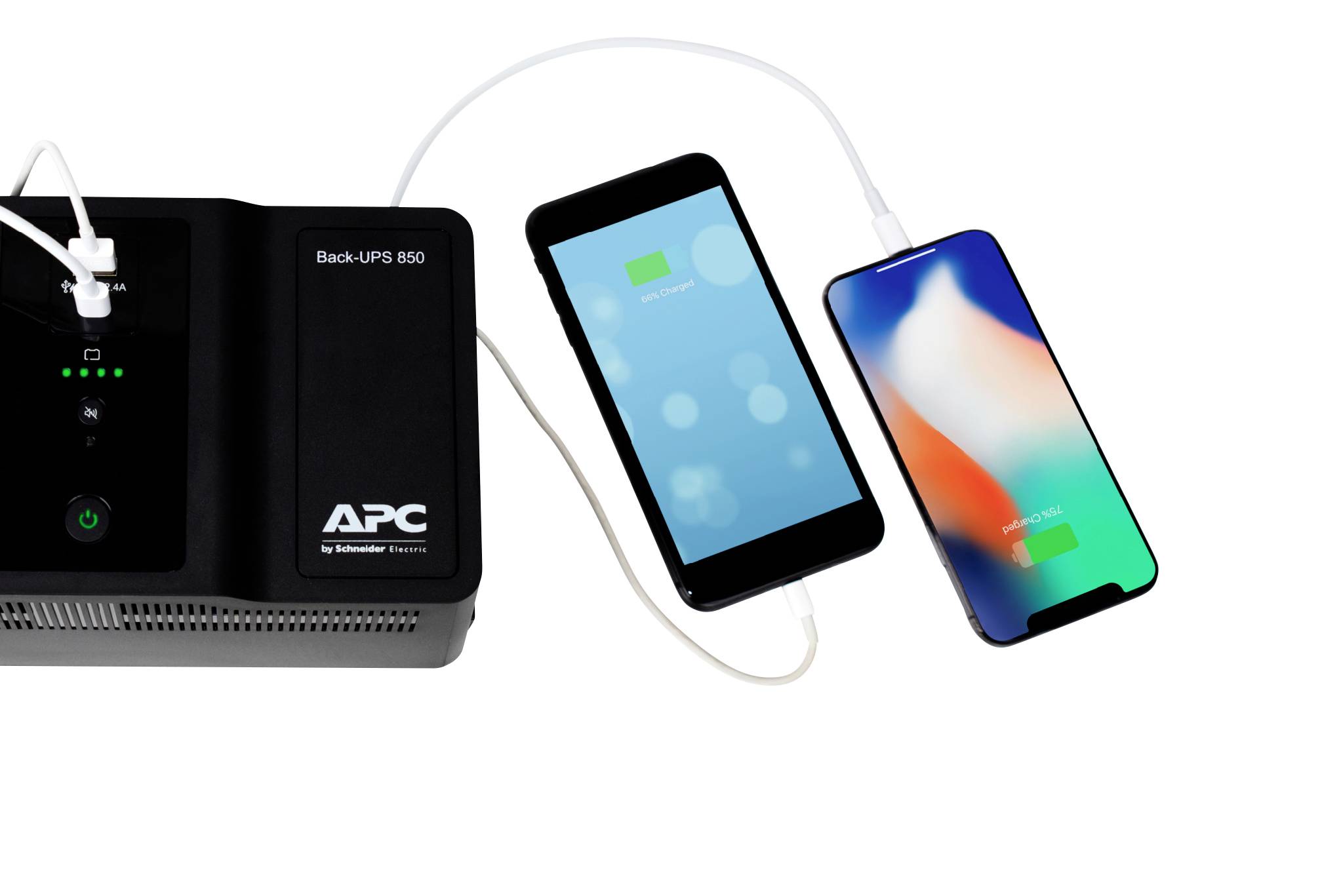

USB charging ports: Charges multiple devices such as smartphones and tablets at the same time.
USB connection: Use your PC to access additional management functions of your UPS via a USB connection.
User-replaceable batteries: Increases availability and reduces average repair time by using trained users to upgrade and replace batteries.
Approval by testing institutions: Ensures that the product has been tested and approved for safe operation with the connected devices of service providers and within the specified environment.
Surge-only outputs: Protect other electronic systems against surges and voltage spikes without limiting battery life to support the most important systems.
Outputs with battery buffer and overvoltage protection: Protect your hardware in case of power failures, overvoltages and voltage peaks.
Battery-supported outputs and outputs with surge protection only: Reserves capacity and backup time for connected devices that need to be switched to UPS battery operation in case of emergency; less important devices are only protected against overvoltages.
Warning Tones— notifies users when the power or UPS system status changes.
LED status indicator: Displays provide a quick overview of the status of the system and power supply.
Automatic self-test: Periodic battery self-tests for timely replacement of used batteries.
Intelligent battery management: An intelligent precision charging system optimizes the performance, life and reliability of batteries.
Battery failure notification: Early battery fault detection analyzes enable timely preventive maintenance.
This text is machine translated.
Warning Tones— notifies users when the power or UPS system status changes.
Automatic self-test: Periodic battery self-tests for timely replacement of used batteries.
Battery charge indicator: Indicates when the battery is charging and when the charging process is complete.
Battery failure notification: Early battery fault detection analyzes enable timely preventive maintenance.
Wiring problems indicator: This LED indicates potentially hazardous cabling problems in the flush-mounted cables.
Supports cold start: Allows temporary battery operation in the event of a power failure.
Surge protection devices: Protects connected devices against surges on data lines.
Battery disconnected notification: Gives a warning when a battery is not available for power supply.
Hot-swappable batteries: Provides continuous power supply to protect systems during battery replacement.
Approval by testing institutions: Ensures that the product has been tested and approved for safe operation with the connected devices of service providers and within the specified environment.
USB charging ports: Charges multiple devices such as smartphones and tablets at the same time.
USB connection: Use your PC to access additional management functions of your UPS via a USB connection.
User-replaceable batteries: Increases availability and reduces average repair time by using trained users to upgrade and replace batteries.
Approval by testing institutions: Ensures that the product has been tested and approved for safe operation with the connected devices of service providers and within the specified environment.
Surge-only outputs: Protect other electronic systems against surges and voltage spikes without limiting battery life to support the most important systems.
Outputs with battery buffer and overvoltage protection: Protect your hardware in case of power failures, overvoltages and voltage peaks.
Battery-supported outputs and outputs with surge protection only: Reserves capacity and backup time for connected devices that need to be switched to UPS battery operation in case of emergency; less important devices are only protected against overvoltages.
Warning Tones— notifies users when the power or UPS system status changes.
LED status indicator: Displays provide a quick overview of the status of the system and power supply.
Automatic self-test: Periodic battery self-tests for timely replacement of used batteries.
Intelligent battery management: An intelligent precision charging system optimizes the performance, life and reliability of batteries.
Battery failure notification: Early battery fault detection analyzes enable timely preventive maintenance.
This text is machine translated.
