APEM 13435AD2GK 13000 Serie Pushbutton, Toggle switch, Main switch, Switch momentary 1 pc(s)

Part number:
Item no:

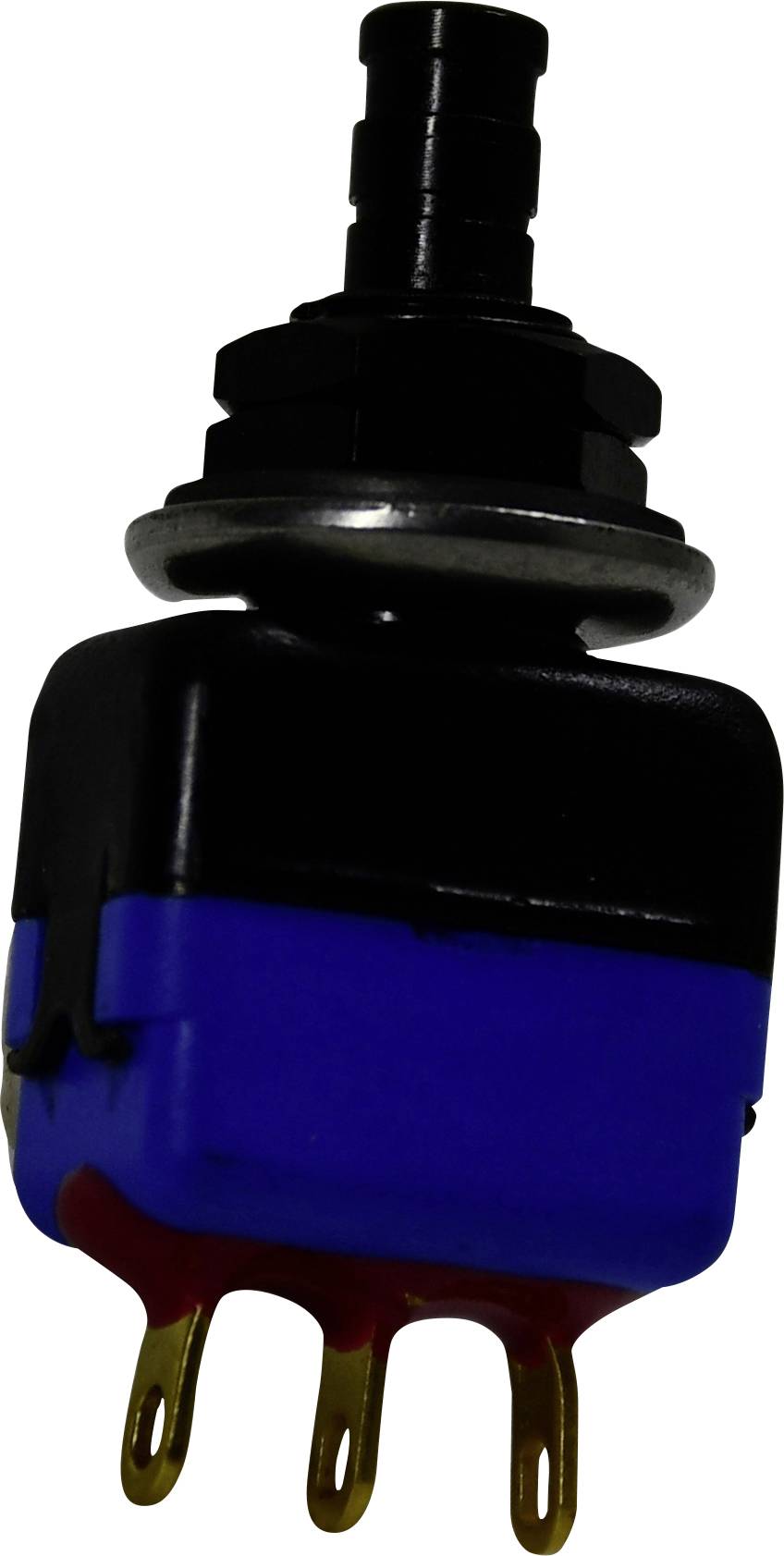

A blue and black toggle switch with three gold pins is shown against a white background.
Product type
Pushbutton
Connection
Solder lug
Casing/button colour
Black
Functions
momentary
Material
Silver
Datasheet (PDF)
Fast track dispatch on Fri 23 Oct
50 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 28.30 / piece)
€ 28.30
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

13435AD2GK.panel switch

  • Approvals: No agency approval required.
  • Number of bars:single-pole
  • Electrical functions:ON
  • Contact materials: Silver
  • gold-plated
  • Done: Black surface
  • Piston:Standard for 635 1 4 socket
  • Sealing: Front panel seal with O-ring and sealing disc
  • Terminals and sockets: Solder lug: Right angle: Right angle
  • Special options:no special requirement

Technical specifications

Product type

Pushbutton

Casing/button colour

Black

Functions

momentary

Material

Silver

Contact material

Silver, gold plated

Connection

Solder lug

Bounce duration

max. 2 ms

Min. temperature

-40 °C

Max. temperature

85 °C

Content

1 pc(s)

Insulation resistance

1 GΩ min. At 500 VDC

Industrial packaging

Yes

RoHS-compliant

Yes

Type

13000 Serie

Documents & Downloads

Datasheet

Datasheet 3728930 APEM 13435AD2GK 13000 Serie Pushbutton, Toggle switch, Main switch, Switch momentary 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3728930 APEM 13435AD2GK 13000 Serie Pushbutton, Toggle switch, Main switch, Switch momentary 1 pc(s)

Description

Versatile 13435AD2GK Panel Switch with single-pole design for seamless operation. Ideal for upgrading systems or new projects. The pressure switch activates the connected components.

This text is machine translated.

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation
