Arcolectric (Bulgin Ltd.) H8800VAAAB Flip switch H8800VAAAB 250 V AC 15 A 1 x Off/On latch 1 pc(s)

A black toggle switch with on and off positions. The switch has golden connections on the back.

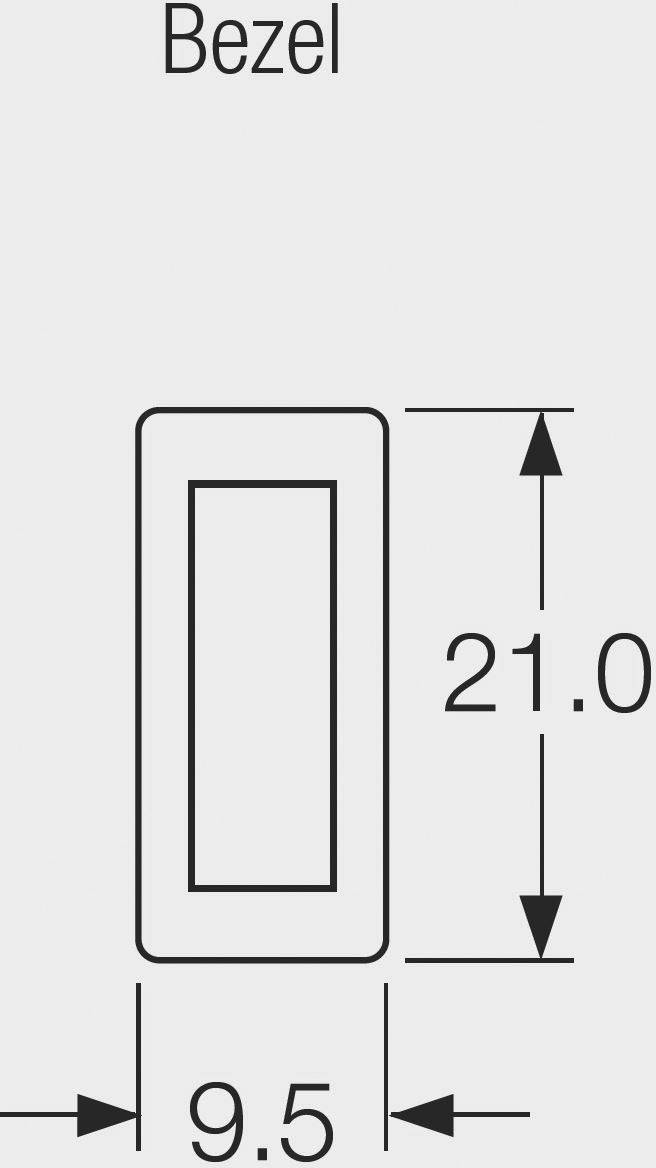

Sketch of a rectangular frame element labelled 'Bezel'. Dimensions: Height 21.0 mm, Width 9.5 mm.

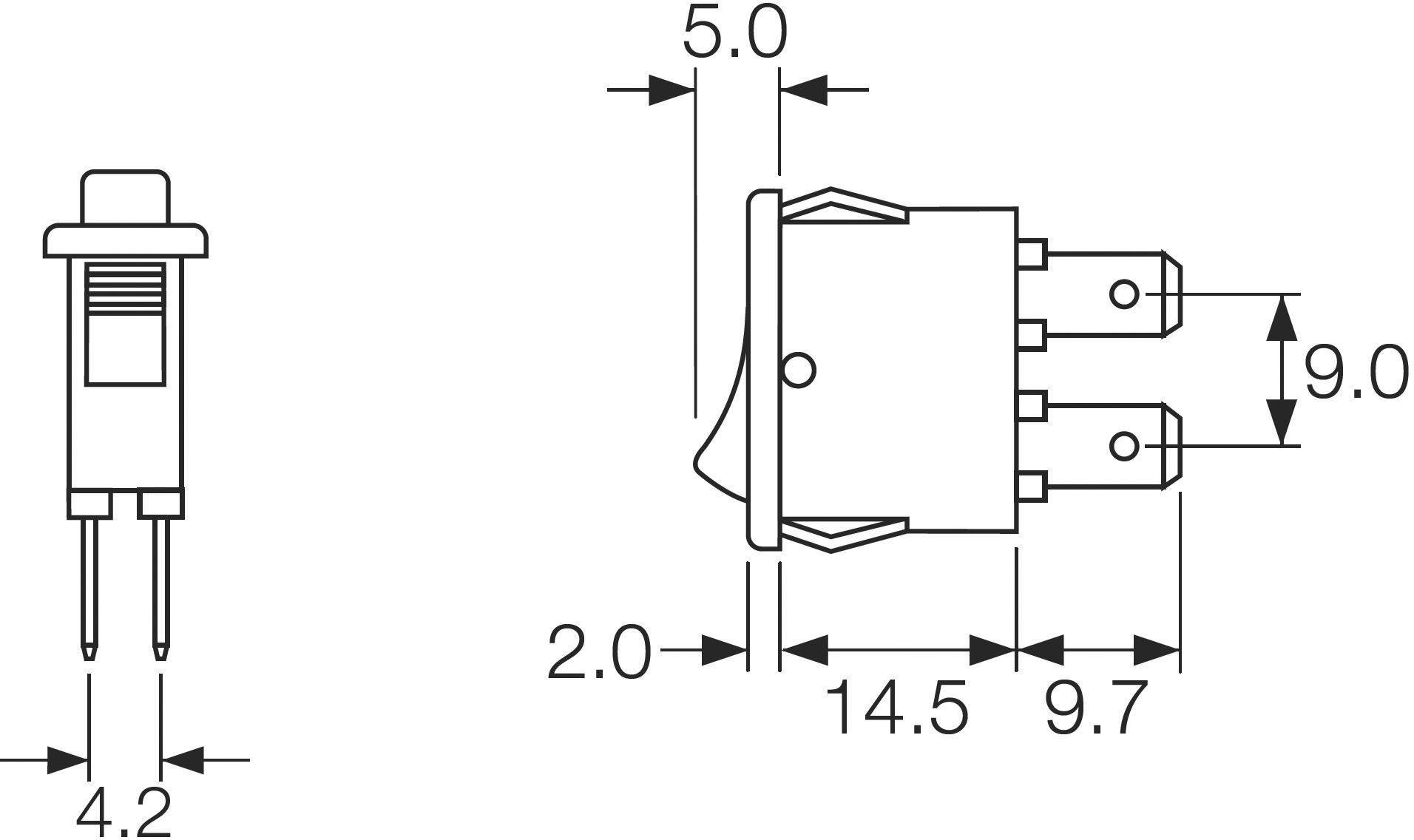

Technical drawing of a switch with dimensions: Width 9.0 mm, Height 14.5 mm, Depth 5.0 mm, Connection spacing 4.2 mm and 2.0 mm.

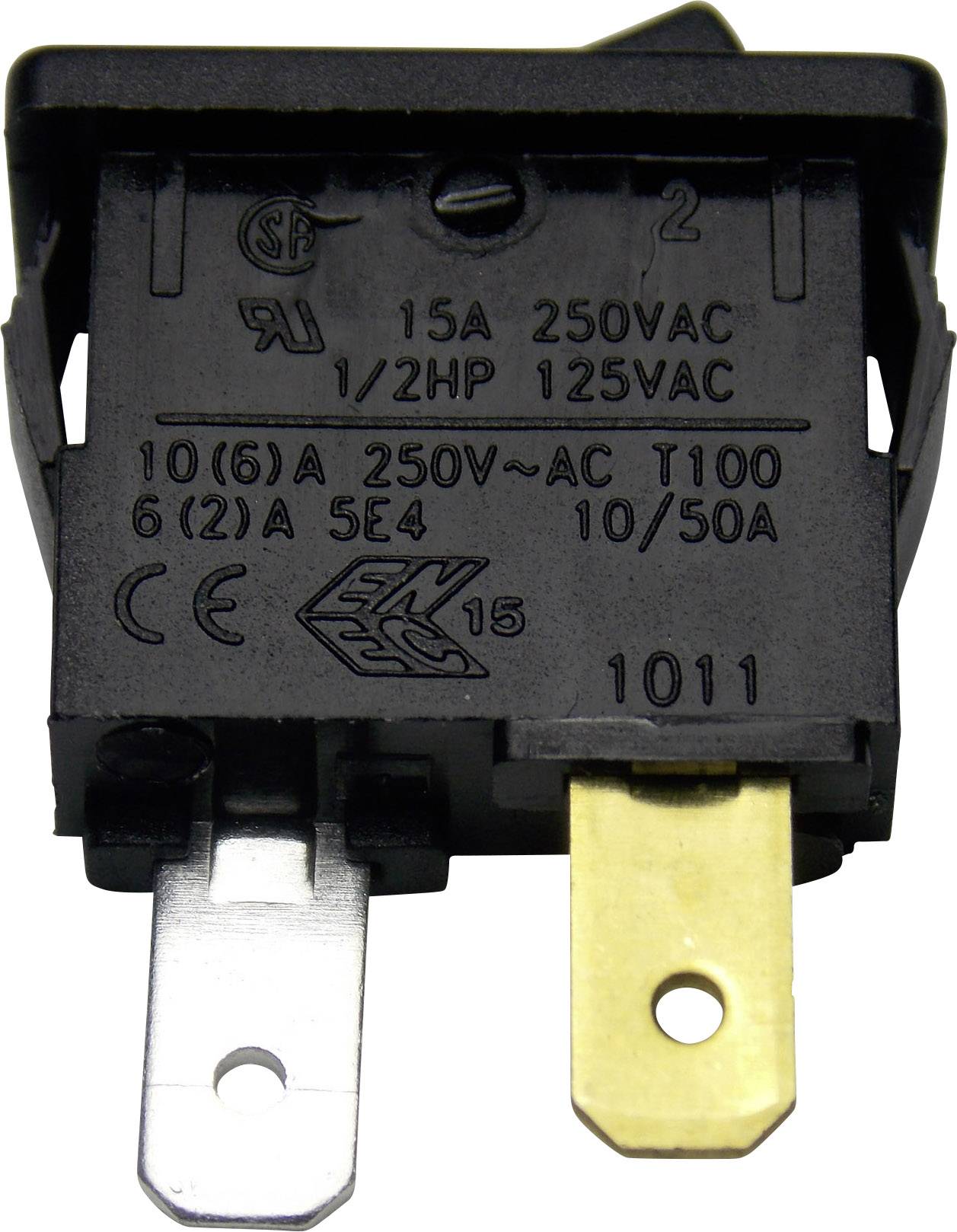

Black electrical switch with metal terminals. Label shows technical specifications: '15A 250VAC, 1/2HP 125VAC'.

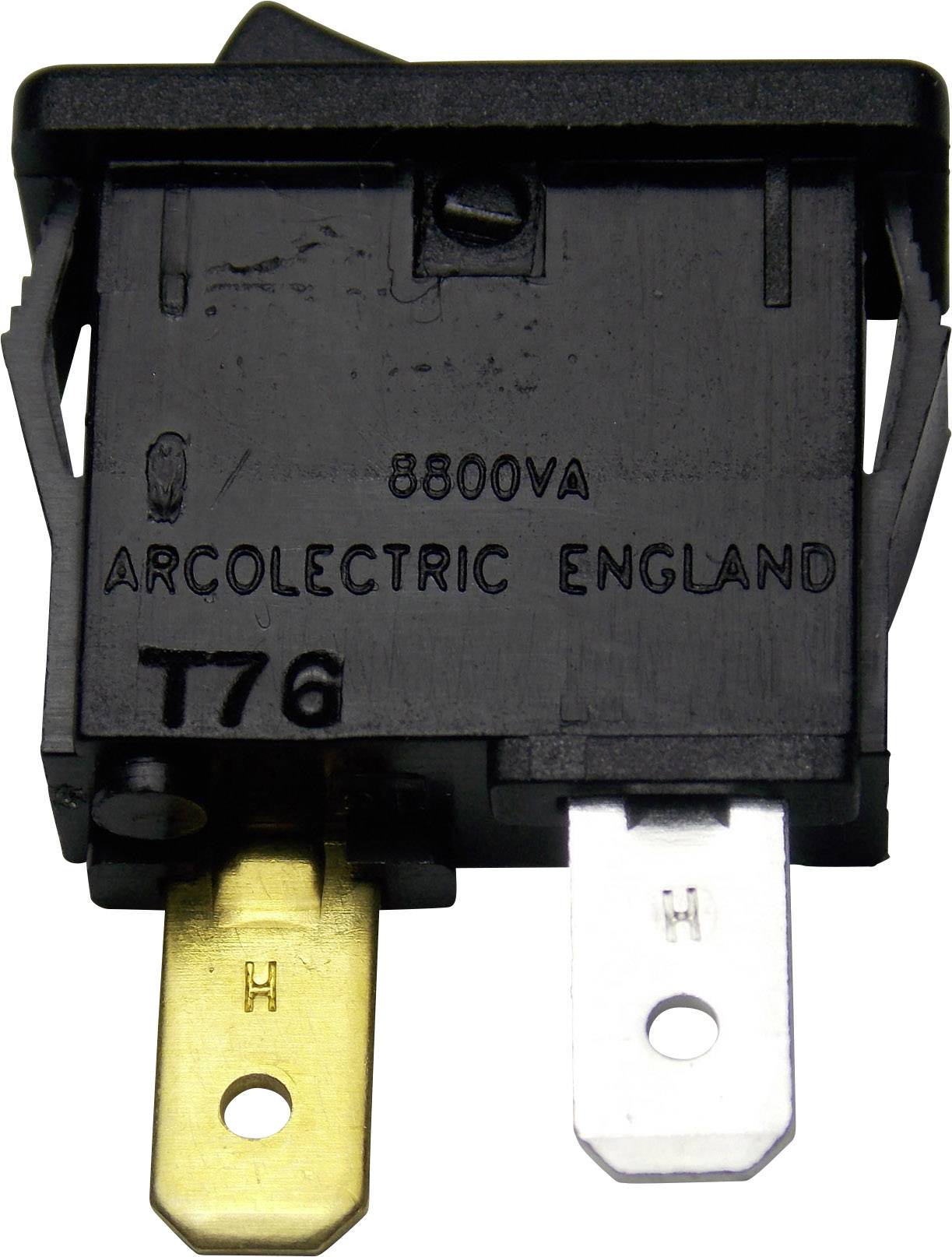

'Black switch with inscription "ARCOLECTRIC ENGLAND" and "8800VA T76". Two metal connections, one gold-coloured, one silver-coloured.'

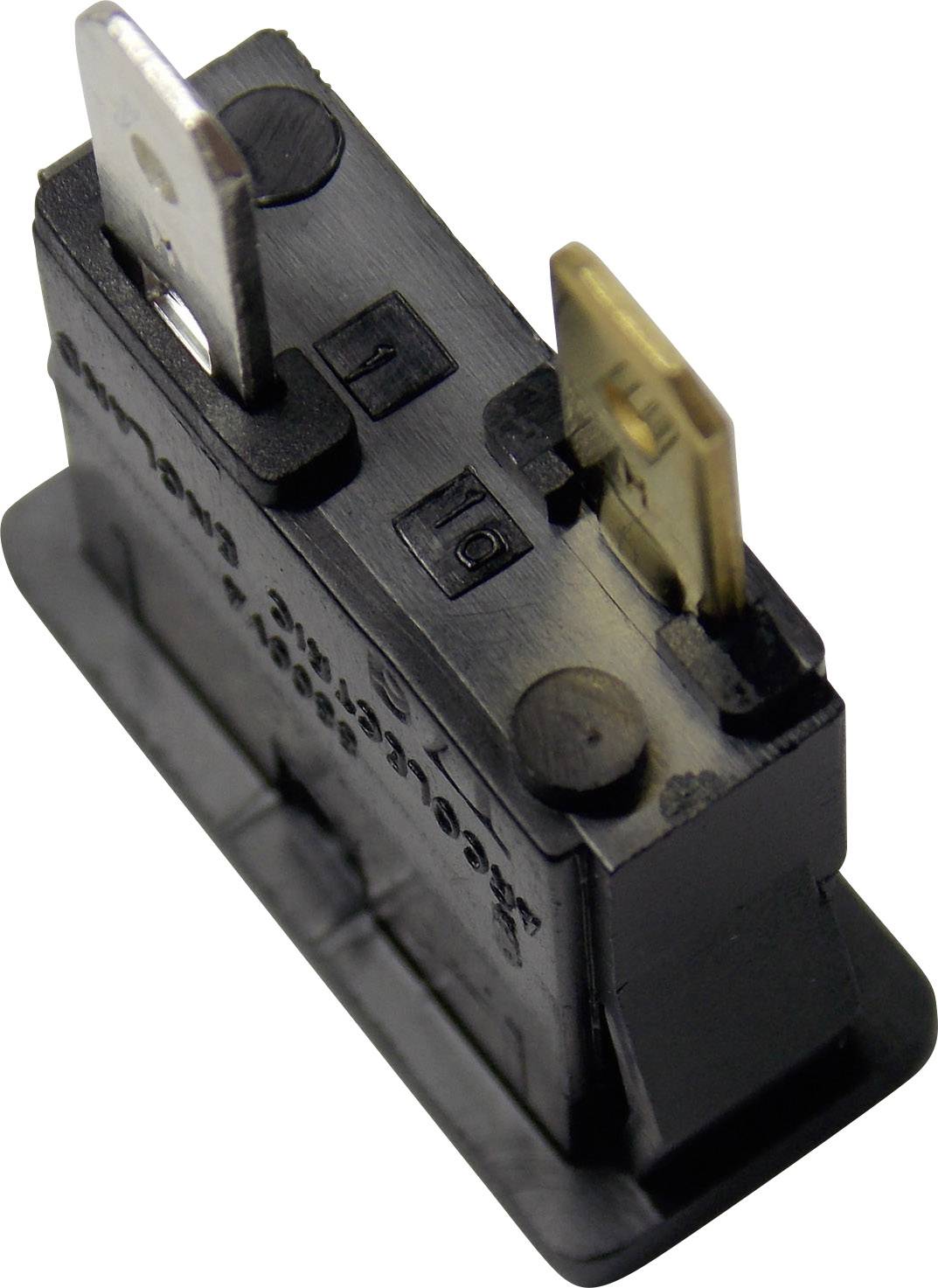

A black electrical connector with two metal terminals, each distinctly marked.
1/6
Product type
Flip switch
Casing/button colour
Black
Functions
latch
Lighting type
None
Switch position
1 x Off/On
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
77 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 1.80 / piece)
€ 1.80
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Flip switch

Switch/button features

Convex

Casing/button colour

Black

Functions

latch

Lighting type

None

Switch position

1 x Off/On

Print motif

0/I

Connection

Type C CEE 7/16 plug 4.8 mm

Number of pins

1

Switching voltage

250 V AC

Switching current (max.)

15 A

Content

1 pc(s)

RoHS-compliant

Yes

Type

H8800VAAAB

Documents & Downloads

Datasheet

Datasheet 1305631 Arcolectric (Bulgin Ltd.) H8800VAAAB Flip switch H8800VAAAB 250 V AC 15 A 1 x Off/On latch 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1305631 Arcolectric (Bulgin Ltd.) H8800VAAAB Flip switch H8800VAAAB 250 V AC 15 A 1 x Off/On latch 1 pc(s)

Description

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation
