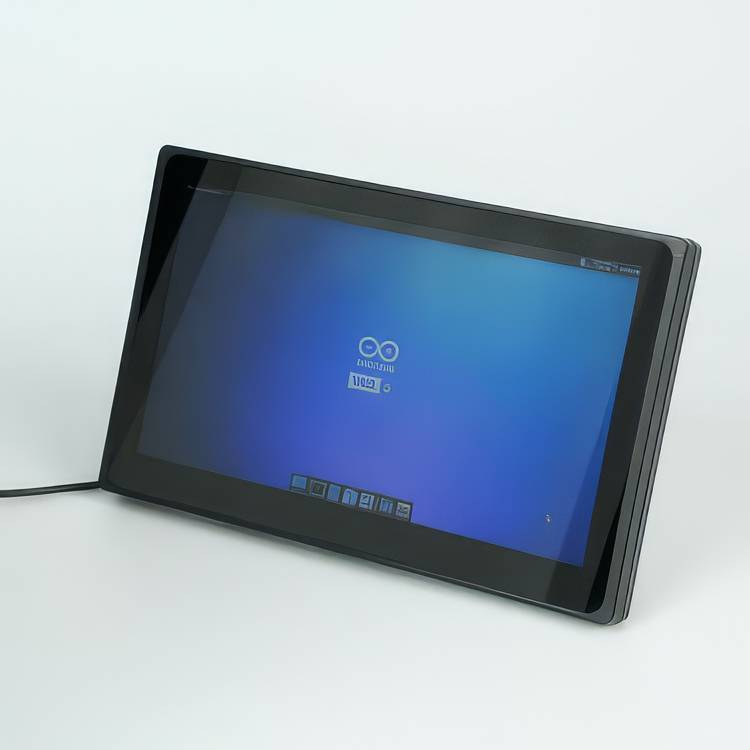

A touchscreen tablet on a white background displaying the Arduino IDE blue startup screen with the infinity logo.
Compact black electronic control module with vents, a small display window, terminal block, ports, and knob on a base plate.
Black point-of-sale touchscreen cash register terminal angled on a white background, with side ports and card reader slot visible.
Black electronic device viewed from below, showing mounting base, vents, switch, and side ports/connectors.
1/4
Datasheet (PDF)
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 319.00 / piece)
€ 319.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Arduino 17.8 cm (7 inch) Codico Smart Panel Q - HMI-JM070049-A2Touchscreen unit

  • Arduino Uno Q compatible: Control unit for Arduino projects
  • 17.8 cm (7 inch)-IPS display: Sharp resolution of 1280x800 pixels with 10-point multi-touch
  • Industrial interfaces: Integrated CAN, RS485, RS232, GPIO and Gigabit Ethernet
  • Robust protection glass: Scratch-resistant 1.1 mm glass with hardness 6H.
  • Extended temperature range: Reliable operation from -20 °C to +70 °C
  • Versatile USB connections: Equipped with USB 2.0 host and two type C interfaces.

Technical specifications

Product type

Display

Display technology

LCD

Display (cm)

17.8 cm

Screen size diagonal (inches)

7 inch

Suitable for

Arduino UNO Q

Display resolution

1280 x 800 Pixel

Interfaces

RS485

RS232

USB A (USB 2.0)

USB C®

Gigabit LAN (1 Gbps)

GPIO

Compatible with

Arduino

Documents & Downloads

Datasheet

Datasheet 3815344 Arduino Codico Smart Panel Q - HMI-JM070049-A2 Touchscreen unit 17.8 cm (7 inch) 1280 x 800 Pixel Compatible with (devel

User & Safety Instructions

User & Safety Instructions 3815344 Arduino Codico Smart Panel Q - HMI-JM070049-A2 Touchscreen unit 17.8 cm (7 inch) 1280 x 800 Pixel Compatible with (devel

Description

The Codico Smart Panel Q - HMI-JM070049-A2 is a robust industrial HMI for demanding operator and control tasks. The device serves as a display unit and control panel for the Arduino Uno Q (not included in the scope of delivery). Equipped with a high-resolution 10.1-inch IPS TFT display and capacitive 10-point multitouch, the system offers precise visualization and intuitive handling.

The device is specially designed for the application in industrial environments. Thanks to its versatile interfaces such as CAN, RS485, RS232, Gigabit-Ethernet and USB, the PC can be integrated seamlessly into existing networks and machine control structures. The durable glass display (hardness 6H) and the extended operating temperature range guarantee reliable continuous operation in process controls, IIoT hubs and environmental monitoring.
