Arduino Codico Smart Panel Q - HMI-JM101017-A2 Touchscreen unit 25.7 cm (10.1 inch) 1280 x 800 Pixel Compatible with (de
Datasheet (PDF)
Part number:
Item no:
Number
Total (€ 415.00 / piece)
€ 415.00
incl. VAT
14-day return policy included
Highlights & Details

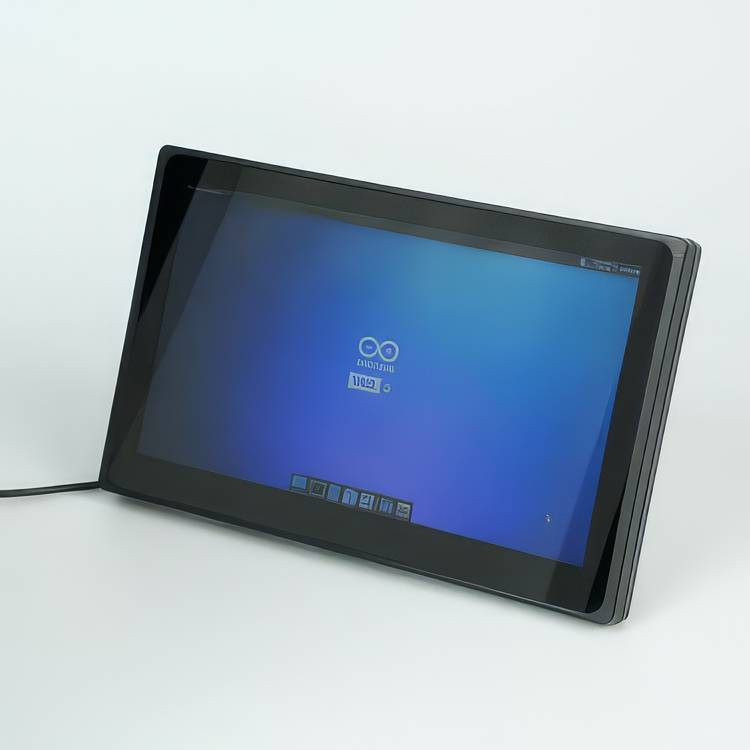

Arduino 25.7 cm (10.1 inch) Codico Smart Panel Q - HMI-JM101017-A2Touchscreen unit
- Arduino Uno Q compatible: Control unit for Arduino projects
- 25.7 cm (10.1 inch)-IPS display: Sharp resolution of 1280x800 pixels with 10-point multi-touch
- Industrial interfaces: Integrated CAN, RS485, RS232, GPIO and Gigabit Ethernet
- Robust protection glass: Scratch-resistant 1.1 mm glass with hardness 6H.
- Extended temperature range: Reliable operation from -20 °C to +70 °C
- Versatile USB connections: Equipped with USB 2.0 host and two type C interfaces.
Technical specifications
- Product type
Display
- Display technology
LCD
- Display (cm)
25.7 cm
- Screen size diagonal (inches)
10.1 inch
- Suitable for
Arduino UNO Q
- Display resolution
1280 x 800 Pixel
- Interfaces
GPIO
RS485
USB A (USB 2.0)
USB C®
RS232
Gigabit LAN (1 Gbps)
- Compatible with
Arduino
Documents & Downloads
Datasheet
Datasheet 3815345 Arduino Codico Smart Panel Q - HMI-JM101017-A2 Touchscreen unit 25.7 cm (10.1 inch) 1280 x 800 Pixel Compatible with (de
User & Safety Instructions
User & Safety Instructions 3815345 Arduino Codico Smart Panel Q - HMI-JM101017-A2 Touchscreen unit 25.7 cm (10.1 inch) 1280 x 800 Pixel Compatible with (de
Description
The Codico Smart Panel Q - HMI-JM101017-A2 is a robust industrial HMI for demanding operator and control tasks. The device serves as a display unit and control panel for the Arduino Uno Q (not included in the scope of delivery). Equipped with a high-resolution 10.1-inch IPS TFT display and capacitive 10-point multitouch, the system offers precise visualization and intuitive handling.
The device is specially designed for the application in industrial environments. Thanks to its versatile interfaces such as CAN, RS485, RS232, Gigabit-Ethernet and USB, the PC can be integrated seamlessly into existing networks and machine control structures. The durable glass display (hardness 6H) and the extended operating temperature range guarantee reliable continuous operation in process controls, IIoT hubs and environmental monitoring.
The device is specially designed for the application in industrial environments. Thanks to its versatile interfaces such as CAN, RS485, RS232, Gigabit-Ethernet and USB, the PC can be integrated seamlessly into existing networks and machine control structures. The durable glass display (hardness 6H) and the extended operating temperature range guarantee reliable continuous operation in process controls, IIoT hubs and environmental monitoring.
