Name: AS Schwabe 59110 Current Cable extension 16 A Orange 10.00 m H07BQ-F 3G 1,5 mm²
Brand: AS Schwabe
SKU: 1857443
Availability: InStock

Highlights & Details

Construction site armoured cable

Approved for construction sites and agricultural use
With earthing contact plug and coupler with protective cap
IP44: Protected against foreign objects and water

Technical specifications

Tested according to DIN VDE 0620-2-1, DIN EN 50525-2

Product type: Current Cable extension

Version: Cable extension

Type A: PG plug

Connector version: straight

Type B: PG connector

Cable standard: H07BQ-F 3G 1,5 mm²

Cable length: 10.00 m

Operating voltage: 230

Used at: Outdoors

: IP44

Factory colour: Orange

Cable use: Current

Nominal current: 16 A

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1857443 AS Schwabe 59110 Current Cable extension 16 A Orange 10.00 m H07BQ-F 3G 1,5 mm²

User & Safety Instructions

User & Safety Instructions 1857443 AS Schwabe 59110 Current Cable extension 16 A Orange 10.00 m H07BQ-F 3G 1,5 mm²

Description

bq construction site lines have a rubber insulating sleeve and are covered with polyurethane in an orange safety color. They are oil resistant, extremely resistant to abrasion and approved for temperatures from -40 to 80°C. They are particularly suitable for construction sites and industrial use, in dry, damp and wet rooms, in the open air as well as in agricultural and fire-hazardous operation areas. They are permanently usable outdoors.

This text is machine translated.

Features

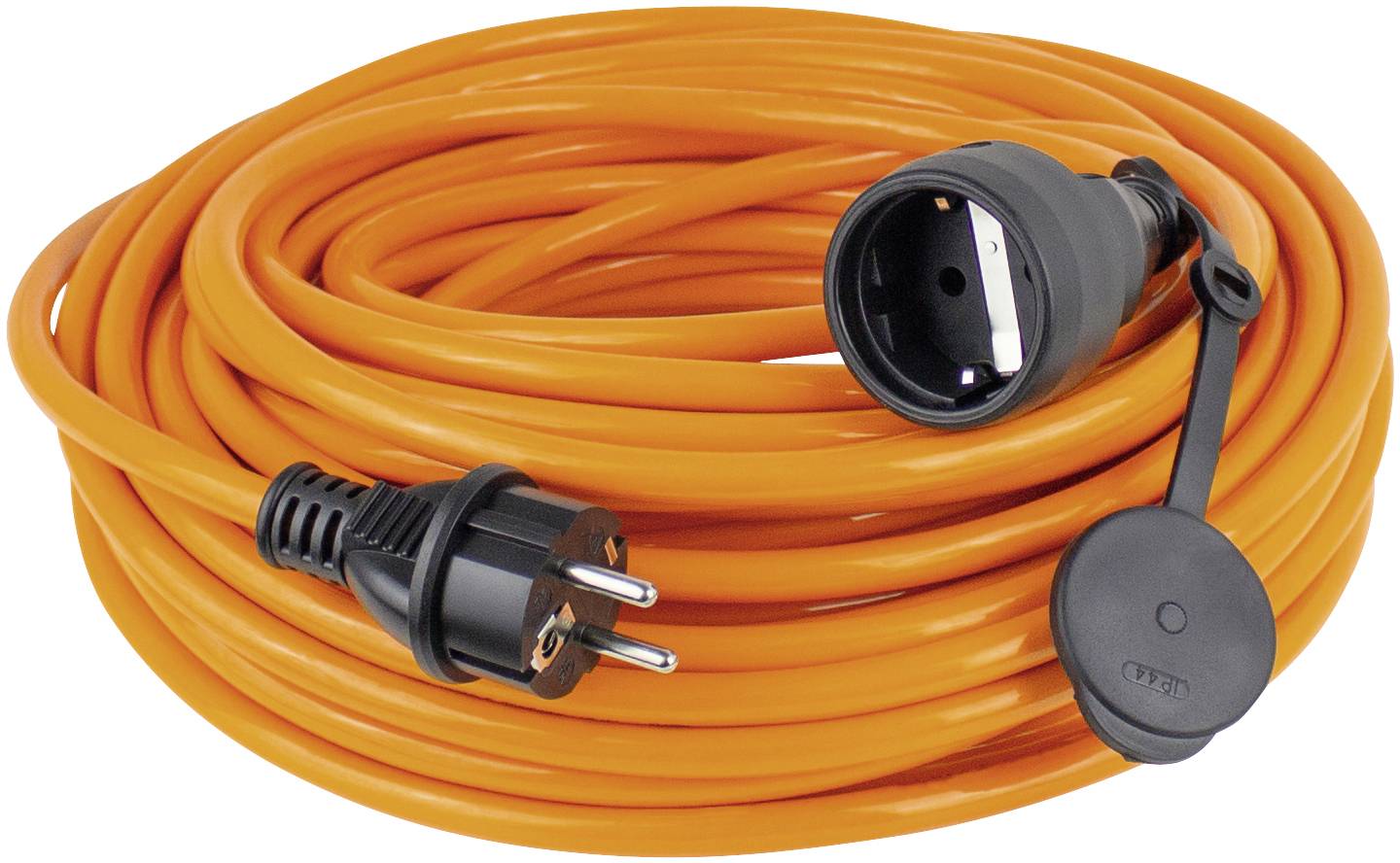

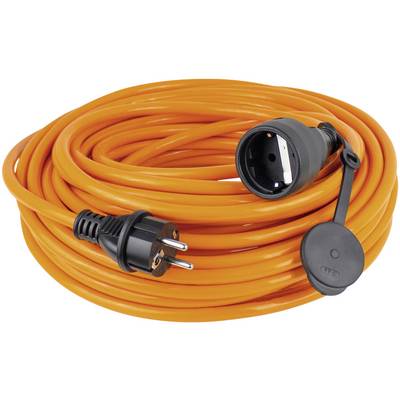

High-quality reinforced cable with heavy-duty protection contact plug, earthing contact coupler with protective cap.
Cable suitable for extreme mechanical strain
Oil and highly resistant to abrasion
Cable in orange safety color

Description

bq construction site lines have a rubber insulating sleeve and are covered with polyurethane in an orange safety color. They are oil resistant, extremely resistant to abrasion and approved for temperatures from -40 to 80°C. They are particularly suitable for construction sites and industrial use, in dry, damp and wet rooms, in the open air as well as in agricultural and fire-hazardous operation areas. They are permanently usable outdoors.

This text is machine translated.

Features

High-quality reinforced cable with heavy-duty protection contact plug, earthing contact coupler with protective cap.
Cable suitable for extreme mechanical strain
Oil and highly resistant to abrasion
Cable in orange safety color
