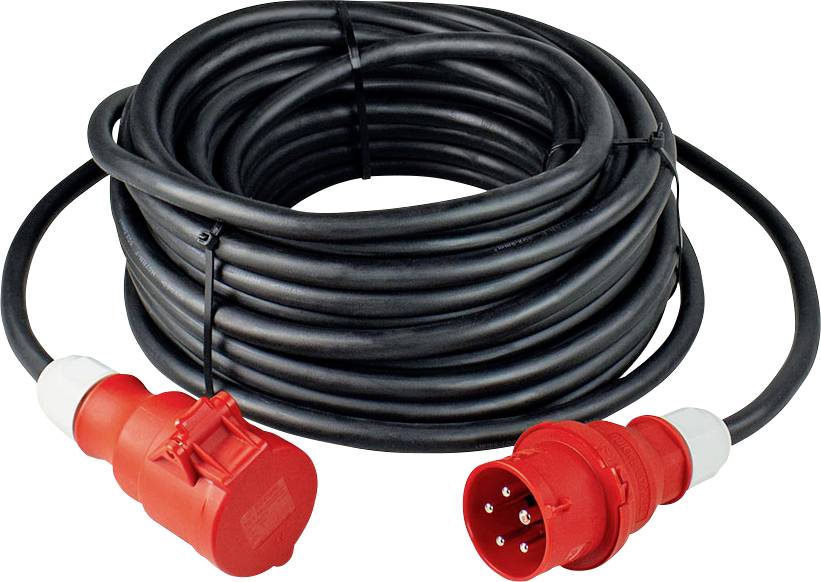

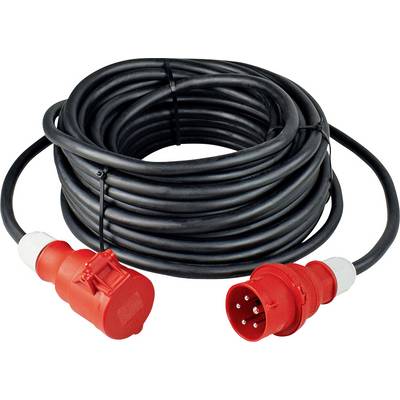

AS Schwabe 61027 Current Cable extension 32 A Black 10.00 m H07RN-F 5G 4 mm²
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
Highlights & Details
CEE-extension 32A, 10m
- Approved for construction sites and agricultural use
- With high-quality CEE plug and CEE coupling with hinged lid
- Plugs and couplings of the latest generation, "Made in Germany"
- 400 V, 5-pin, 6 h
- Tested according to IEC 60309, DIN EN 50525-2
- IP44: Protected against foreign objects and water
Technical specifications
- Product type
Current Cable extension
- Version
Cable extension
- Type A
CEE plug (5-pin, 32 A)
- Connector version
straight
- Type B
CEE connector (5-pin, 32 A)
- Outlets
1
- Cable standard
H07RN-F 5G 4 mm²
- Cable length
10.00 m
- Operating voltage
400 V
- Used at
Outdoors
IP44
- Factory colour
Black
- Cable use
Current
- Nominal current
32 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 617541 AS Schwabe 61027 Current Cable extension 32 A Black 10.00 m H07RN-F 5G 4 mm²
User & Safety Instructions
User & Safety Instructions 617541 AS Schwabe 61027 Current Cable extension 32 A Black 10.00 m H07RN-F 5G 4 mm²
Description
RN-Rubber hose pipes made of rubber
The heavy rubber sheathed cables "RN-F" have rubber insulating sleeves and are encased in neoprene rubber. They are oil, UV and ozone resistant and are suitable for temperature ranges from -30°C to +60°C. Due to their good mechanical resistance they withstand high loads in dry and damp rooms as well as in water and can be used permanently outdoors, e.g. in agricultural holdings or on construction sites.
This text is machine translated.
The heavy rubber sheathed cables "RN-F" have rubber insulating sleeves and are encased in neoprene rubber. They are oil, UV and ozone resistant and are suitable for temperature ranges from -30°C to +60°C. Due to their good mechanical resistance they withstand high loads in dry and damp rooms as well as in water and can be used permanently outdoors, e.g. in agricultural holdings or on construction sites.
