AS Schwabe 62461 Surface-mount socket Lockable IP54 Grey

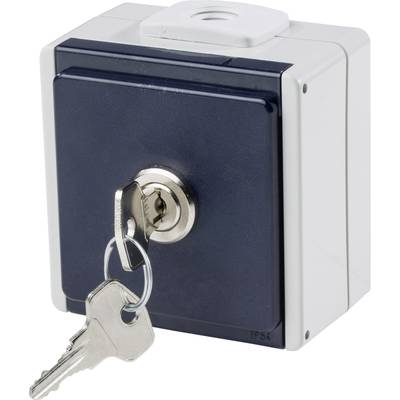

A square switchboard box with a lock in the centre. Two keys are hanging from the lock. The box is dark and light grey.
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
17 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 39.99 / piece)
€ 39.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Socket 1-way, which can be locked with 2 cable entries IP54

  • Robust thermoplastic housing.
  • Color: light gray/Steel-blue.
  • Max. Cross-section 2.5 mm².
  • IP54 for damp rooms/outdoor areas.
  • To a large extent, UV-resistant.
  • With plug-in terminals.
  • A big room for extensive wiring.
  • This text is machine translated.

Technical specifications

  • Tested according to DIN VDE 0620-1
Product type

Surface-mount socket

Light bulb features

Lockable

Outlets

1

Nominal voltage

230 V

Nominal current

16 A

Mounting type

Surface-mount

Factory colour

Grey

IP54

Dim

(L x W x H) 8.3 x 7.2 x 5 cm

Length

8.3 cm

Width

7.2 cm

Height

5 cm

Content

1 pc(s)

Documents & Downloads

Datasheet

Datasheet 1857927 AS Schwabe 62461 Surface-mount socket Lockable IP54 Grey

User & Safety Instructions

User & Safety Instructions 1857927 AS Schwabe 62461 Surface-mount socket Lockable IP54 Grey
