Name: ATEN VS138A-AT-G 8 ports VGA splitter + built-in repeater 2048 x 1536 p Black
Brand: ATEN
SKU: 989255
Availability: BackOrder

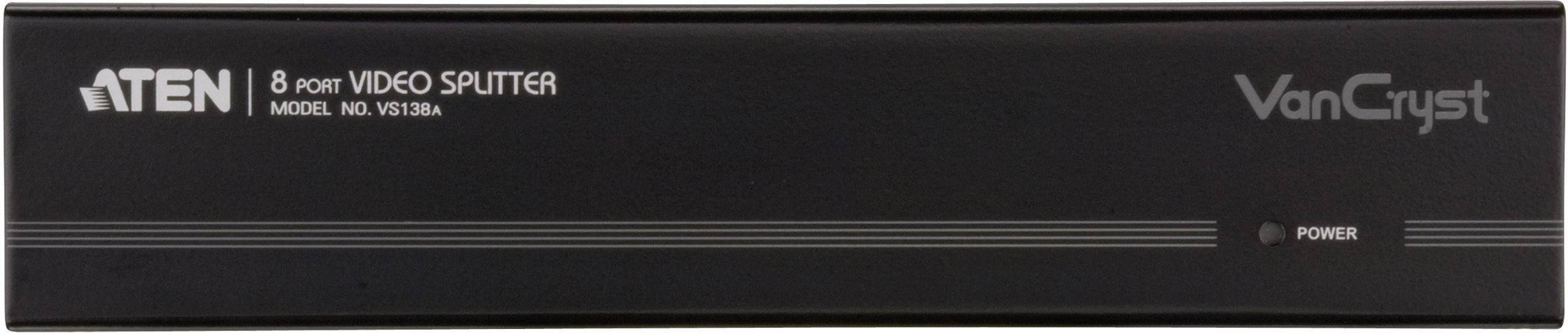

Black ATEN 8-Port Video Splitter, Model VS138A, with 'VanCryst' inscription and power switch LED.

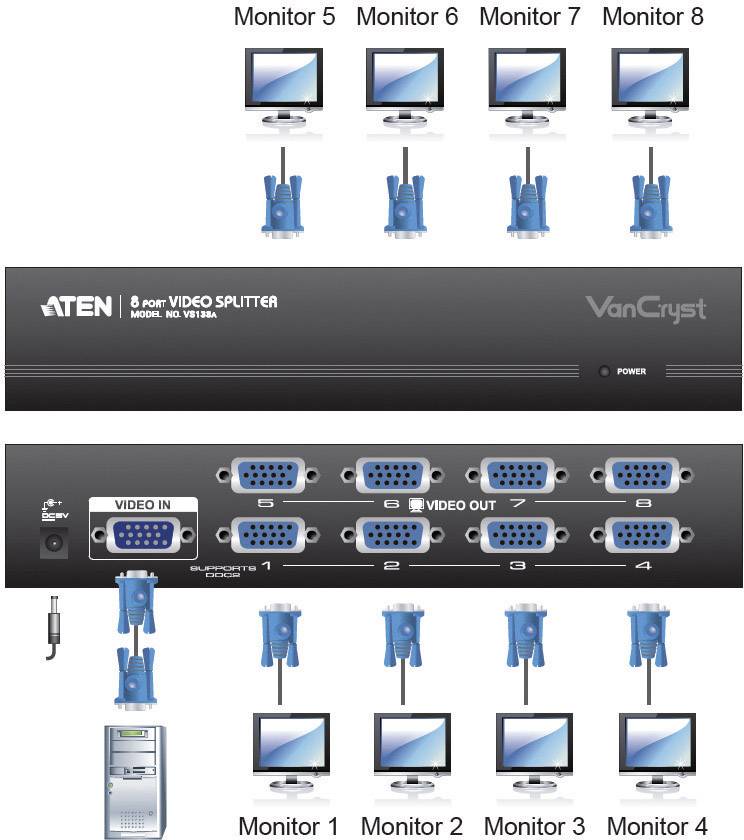

'8-Port Video Splitter, Model No. VS138A.' Four monitors connected to 'Video Out', one device connected to 'Video In'. Four additional monitors connected above.

'Video splitter with one video input port and eight video output ports, numbered from 1 to 8, for VGA cable connections.'

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 18 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 139.99 / piece)

€ 175.00

-20 %

€ 139.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Aten 8 Port VGA graphics splitter (450 MHz)

A graphic input is distributed on 8 Graphics Outputs
Supports up to 450 MHz bandwidth
Large transmission paths - up to 65 m
Resolutions up to 2048 x 1536 pixels

Technical specifications

Product type: VGA splitter

Supported monitors: 8

No. of inputs: 1 x

Interfaces (input): VGA

No. of outputs: 8 x

Interfaces (output): VGA

Resolution (max.): 2048 x 1536 p

Switch function: Manual

Power supply (LOV): via PSU

Distributor/switch features: + built-in repeater

Factory colour: Black

Weight: 690 g

Width: 75 mm

Height: 45 mm

Depth: 200 mm

Dim: (W x H x D) 75 x 45 x 200 mm

Port: 8 ports

Documents & Downloads

Datasheet

Datasheet 989255 ATEN VS138A-AT-G 8 ports VGA splitter + built-in repeater 2048 x 1536 p Black

User & Safety Instructions

User & Safety Instructions 989255 ATEN VS138A-AT-G 8 ports VGA splitter + built-in repeater 2048 x 1536 p Black

Description

The graphics splitter vs 138A is a signal amplifier, which is the image of a signal source to 8 output devices multiplied. The device can be up to three levels in cascade, of which up to 512 image signals at distances of up to 65 m can be made available. These properties convert the device in an optimal tool for transmission systems to the audience.

The VS 138A is the best choice when it comes to high-quality VGA, XGA, SVGA, UXGA, QXGA and multi-sync video signals without any problem over larger distances.

This text is machine translated.

Features

Cascade circuit to a maximum of 3 levels results in up to 512 graphics signals
Supports VGA, XGA, SVGA, UXGA, QXGA and multi-sync monitors
The built-in 1.5-G Hz-Verstarker provides for the conservation of the image signal quality over larger distances
Metal housing.

Scope of delivery

VS 138A graphics splitter
Power supply unit
User manual

Description

Features

Cascade circuit to a maximum of 3 levels results in up to 512 graphics signals
Supports VGA, XGA, SVGA, UXGA, QXGA and multi-sync monitors
The built-in 1.5-G Hz-Verstarker provides for the conservation of the image signal quality over larger distances
Metal housing.
