Axing BZU01002 SAT finder

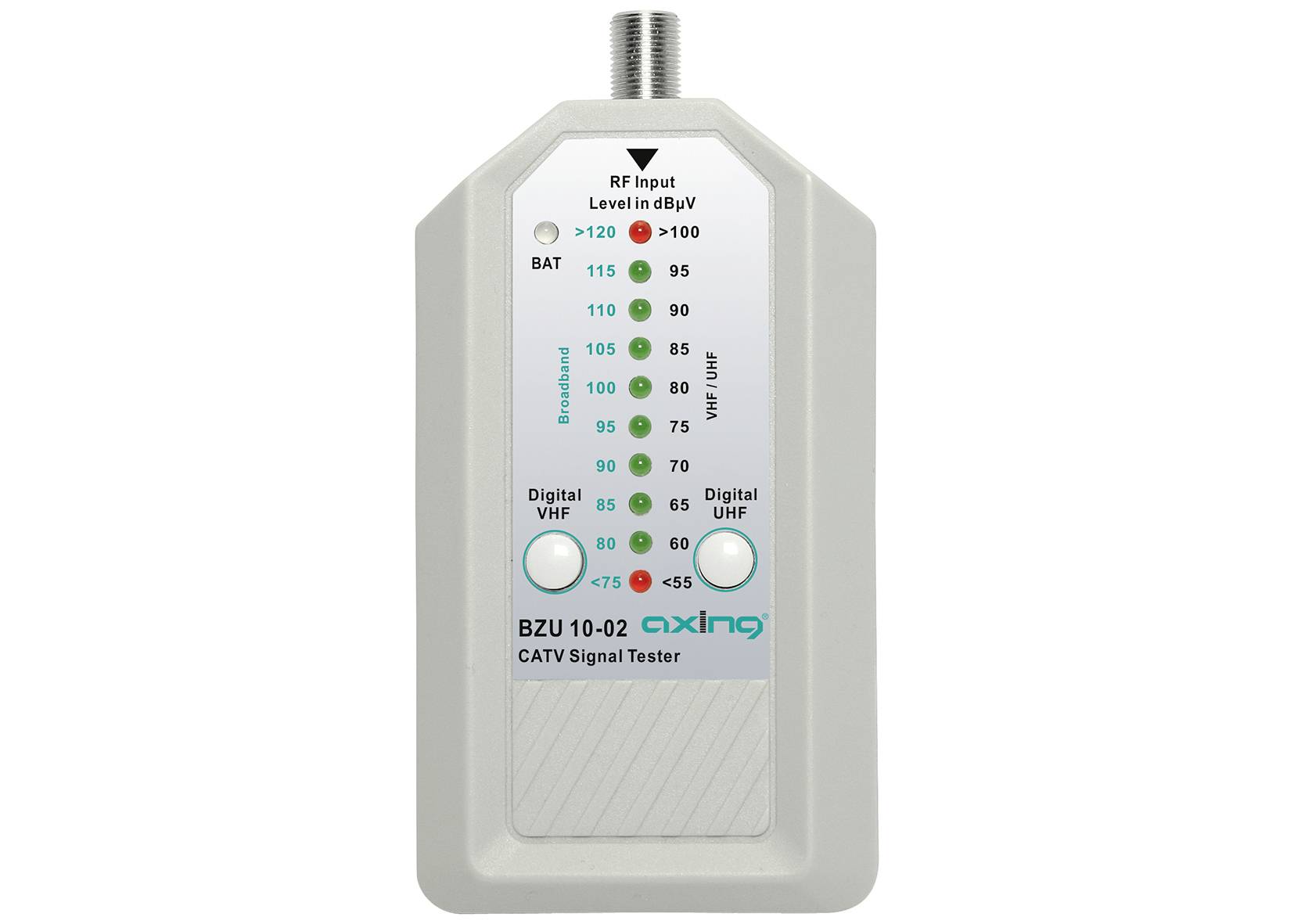

This CATV signal tester is suitable for cable television systems that have been used purely for digital purposes. The device has 2 selective main measuring range (VHF and UHF, selectable via button). In addition, broadband can be measured over the entire frequency range (to do so, press both VHF and UHF at the same time). The signal tester is used at an antenna socket or multimedia connection socket, or at the output of a signal amplifier. The average level of 5 channels is displayed (VHF S14 to S19 or D) or UHF S33-S27 or D402-D434). In larger cable networks these channels are usually occupied to ensure an effective level indicator. The total level over the entire frequency range shows incorrectly set amplifiers or external radiation, for example through mobile telephony. The operation of the signal tester takes place via a 9 V battery (not included in the delivery). To indicate the battery status, an LED lights up in green (battery full), yellow (low battery) or red (low battery). The delivery includes a 30 cm cable with F-plugs as well as an adapter F-socket to IEC-socket. Dimension: 60 x 120 x 26 mm

This text is machine translated.
