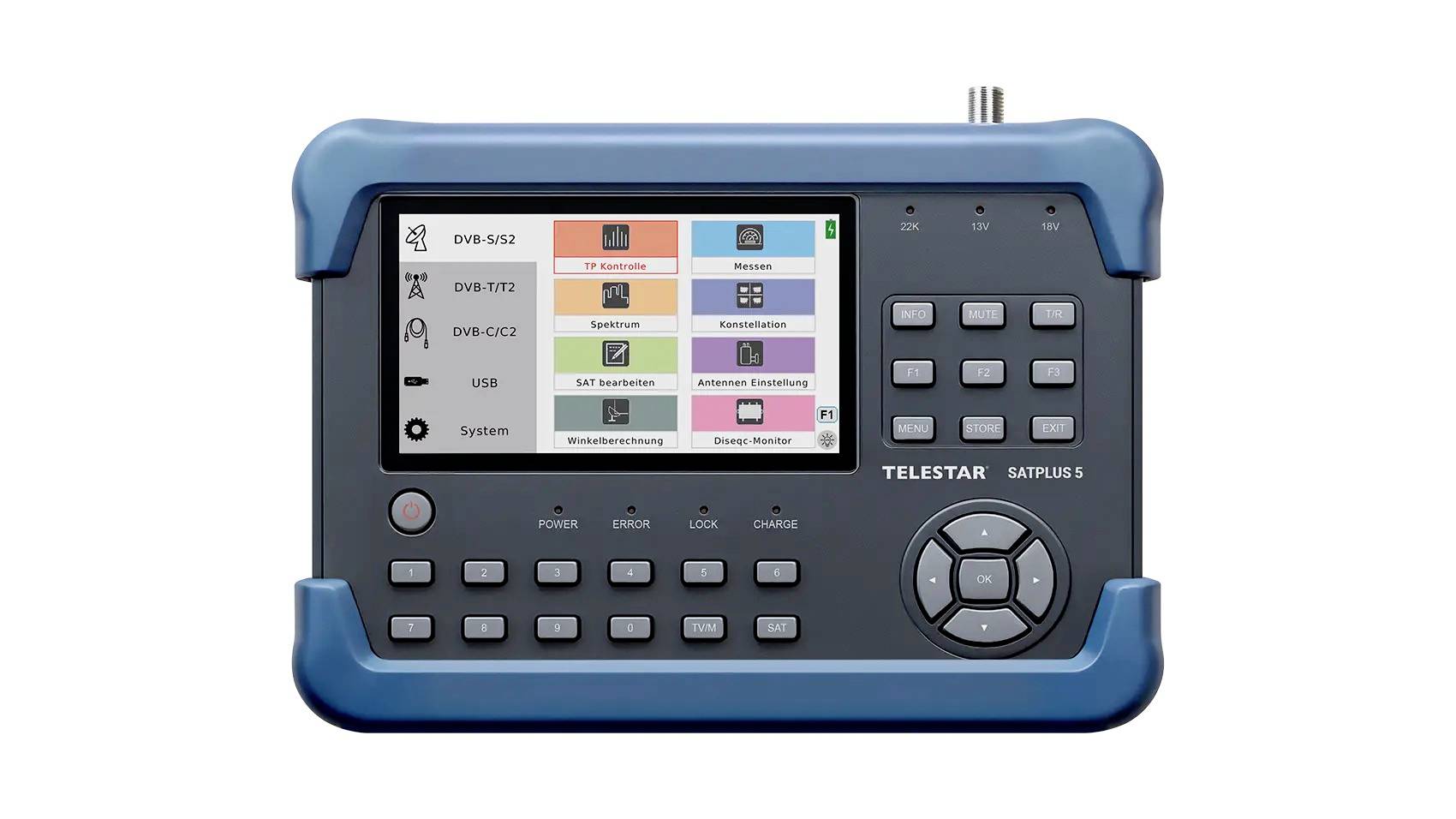

Telestar SATPLUS 5 SAT fader

The meter SATPLUS 5 is a powerful universal measuring device for professional reception installations. It supports DVB-S/S2, DVB-T/T2 and DVB-C/C2 and is suitable Ideal for the installation, alignment and diagnosis of modern reception systems


Universal SAT measuring device for all reception types

The measuring device SATPLUS 5 covers all the common reception channels - satellite, cable and terrestrial. As a real combo measuring device it supports DVB-S/S2, DVB-T/T2 and DVB-C/C2 and thus offers maximum flexibility for professional installations and service applications.

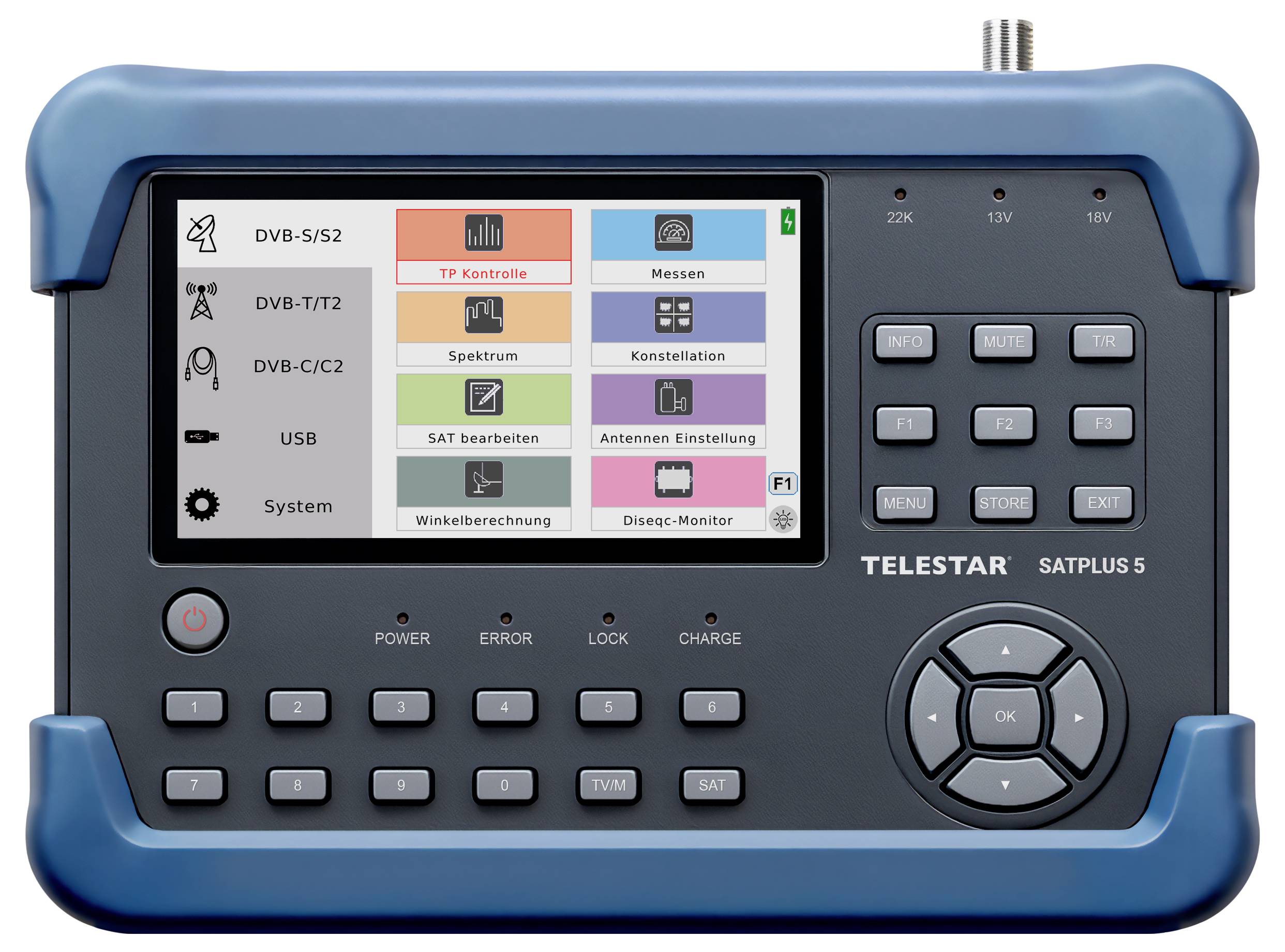

Precise measured values on large color display

The integrated 5-inch color display provides highly accurate measurements and enables convenient switching between the measurement mode and live TV viewing. Zoom functions with a large digital measurement display ensure that signal parameters remain easy to read even from large distances. A loud acoustic signal transmitter supports fast antenna alignment.


Extensive analysis and diagnostic functions

For the professional analysis functions like spectrum analysis, constellation diagram, scope and tilt measurement as well as the display of all relevant signal parameters are available. In the satellite sector the SATPLUS 5 supports DiSEqC, Unicable (EN50594 & EN50607), broadband-LNBs as well as the calculation of azimuth and elevation angles. Measured values like MER, BER, PWR, FEC, signal strength and signal quality are clearly displayed.


Practical additional functions for the daily work

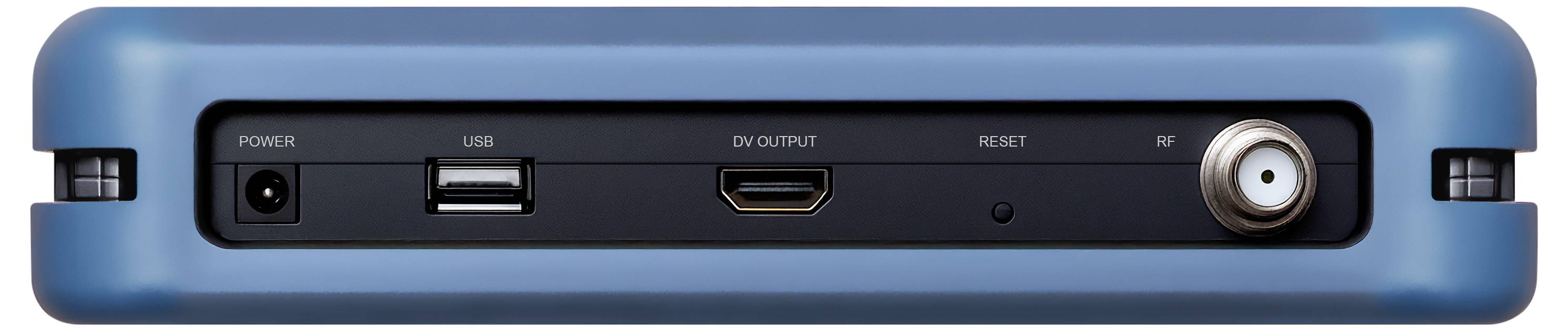

The device also convinces in the terrestrial and cable area with extensive analysis functions. DVB-T/T2-antennas can be supplied via a switchable 5–24 Volt antenna feed. Additional features such as screenshot storage on USB, firmware updates via USB, channel list backup, hardware reset button and integrated LED work light make daily easier. Several status LEDs provide information about the operating and signal states at all times.


Robust professional tool for installers

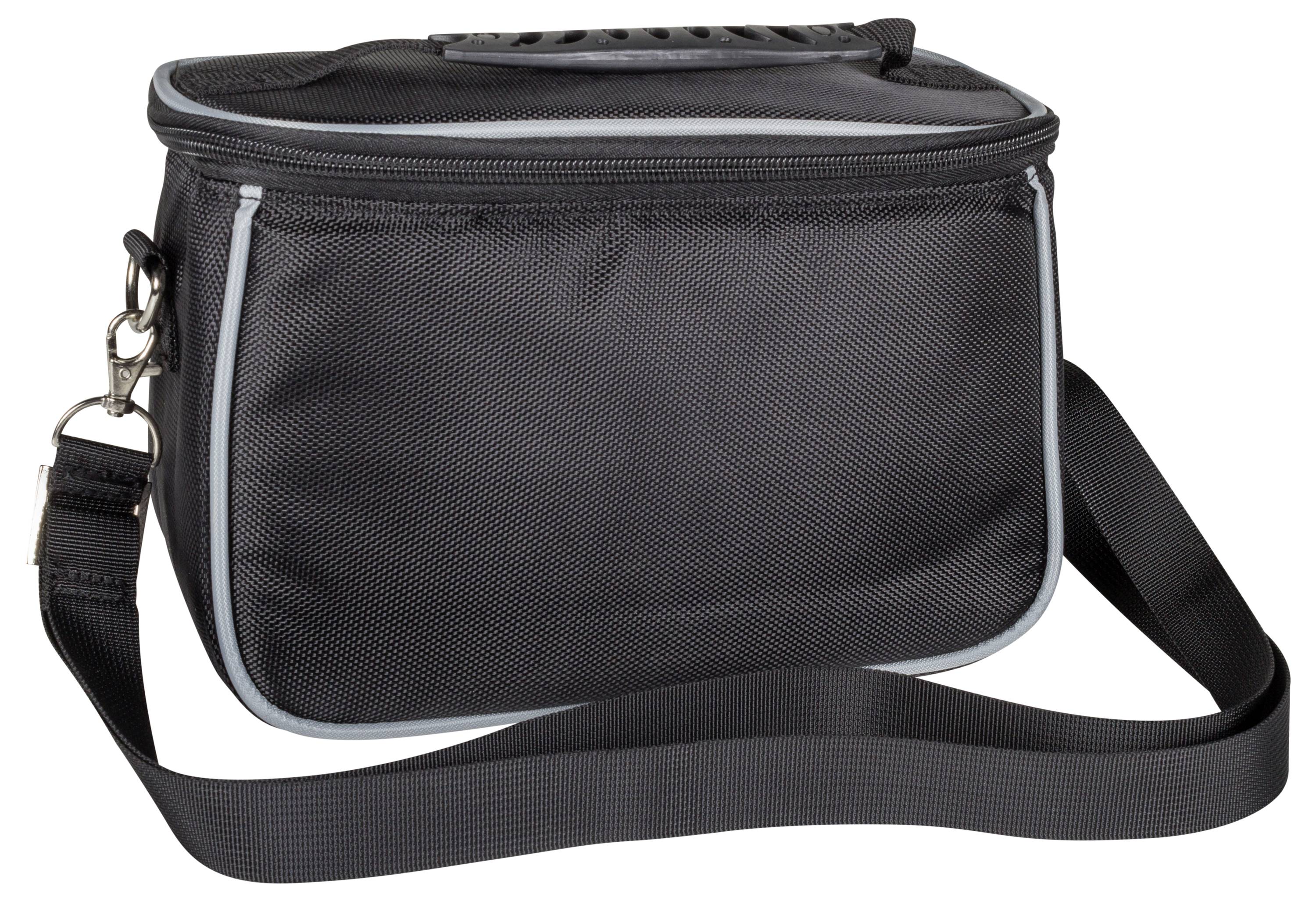

Thanks to its robust construction, the extensive delivery scope including power supply, car charger and carry bag as well as the versatile measurement and diagnosis functions the Telestar SATPLUS 5 is a reliable tool for installers, service technicians and demanding users in the area of modern reception technology.

This text is machine translated.
