Axing SKB39501 Coax Outside diameter: 6.8 mm 75 Ω 100 dB White Sold per metre
EAN:
Part number:
Item no:
Product type
Coax
Impedance
75 Ω
Shield rating greater than
100 dB
Cable features
triple shielding
Outside Ø
6.8 mm
Datasheet (PDF)

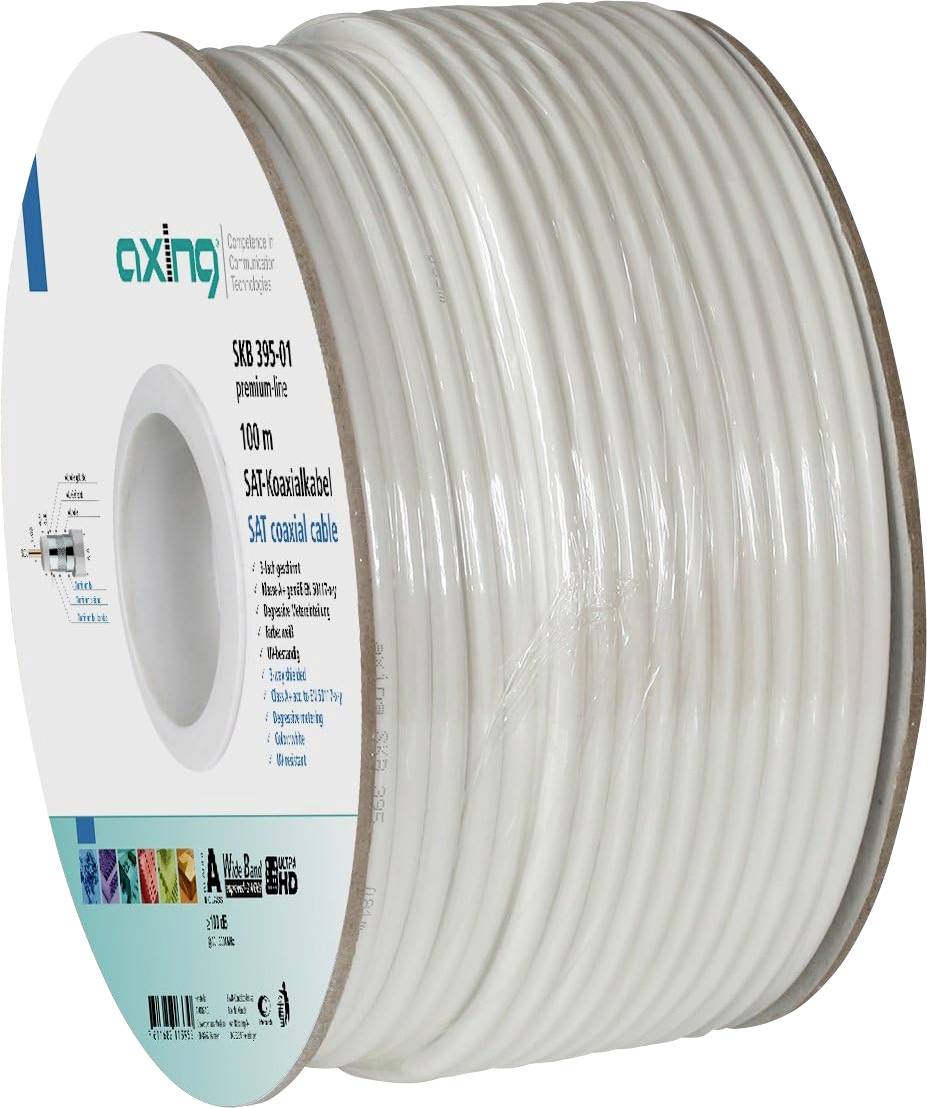

SKB 395-01 coaxial cable, 3-way shielded, 100 m
Technical specifications
- Product type
Coax
- Impedance
75 Ω
- Shield rating greater than
100 dB
- Cable features
triple shielding
- Core Ø
1.02 mm
- Factory colour
White
- Outside Ø
6.8 mm
- Content
Sold per metre
- Packaged
Yes
- Sold per metre
Yes
- Manufacturer part #
SKB39501
- Insulation material
PVC
- Standards
Class A+ according to EN 50117-2-4
Fire class ECA according to EN 50575
- RoHS-compliant
Yes
- Type
SKB39501
- Max. length sold by the metre
100 m
Documents & Downloads
Datasheet
Datasheet 3642602 Axing SKB39501 Coax Outside diameter: 6.8 mm 75 Ω 100 dB White Sold per metre
User & Safety Instructions
User & Safety Instructions 3642602 Axing SKB39501 Coax Outside diameter: 6.8 mm 75 Ω 100 dB White Sold per metre
Description
The Axing SKB 395 is a 3-way shielded coaxial cable for the home installation of satellite/antenna systems as well as cable television. The inner conductor is covered with copper, so that a very good contact is ensured. The shielding consists of a braid and 2 films. The film is glued making it easy to plug. The cable has a low attenuation of 32.8 dB at 2200 MHz / 100m or 20.2 dB at 1000 MHz. The outer sheath has a diameter of 7 mm, is made of white PVC and is UV-resistant. A degressive meter classification is printed. The SKB 395 is the ideal standard cable for the installation of satellite systems. Suitable for 7 mm F plugs such as CFS 97-51, CFS 99-51, CFS 100-51, CFS 93-51 and other antenna plugs.
