Name: B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1192-002 0 bar up to 1 bar Cable
Brand: B + B Thermo-Technik
SKU: 3089353
Availability: BackOrder

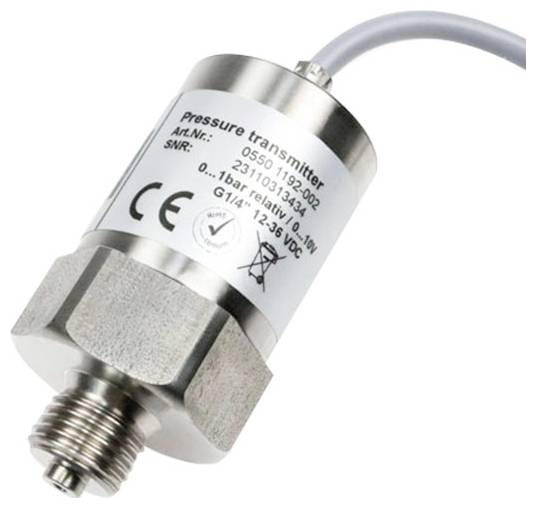

Stainless steel pressure transmitter with threaded sensor tip and attached cable, shown on a white background.

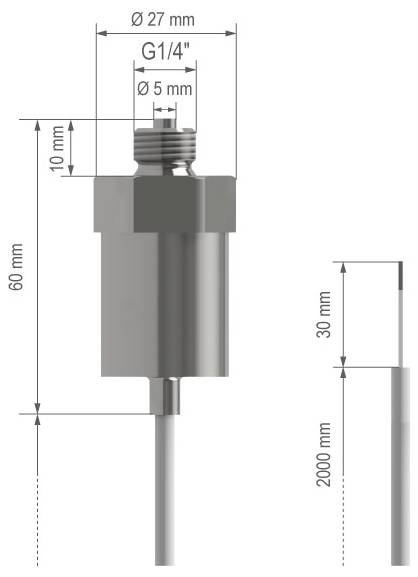

Dimensioned technical drawing of a cylindrical sensor with G1/4 threaded top and a long probe, showing key measurements: 27 mm diameter, 60 mm body height, 2000 mm cable, 30 mm section.<br>

1/2

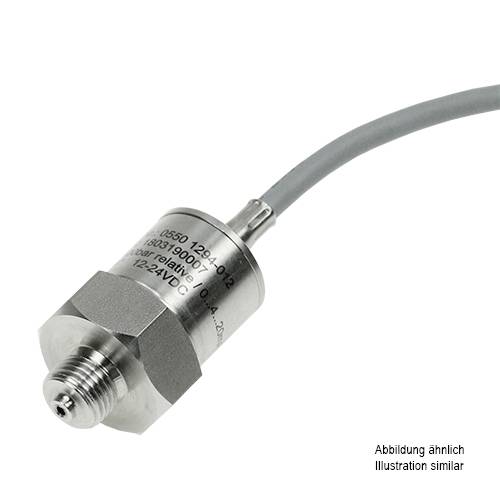

Image similar

Product type

Pressure transducer

Connector

Cable

Model

Relative pressure

Pressure reading range (max.)

1 bar

Max. operating voltage

36 V DC

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 159.99 / piece)

€ 159.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Pressure transmitter with 2m-cable

High-quality stainless steel housing; very sturdy construction

Technical specifications

Output signal, 0…10 V, burst pressure, 5 bar, designation, Pressure transmitter stainless steel, pressure measuring type, relative pressure, operating temperature, -20...+80 °C, Electrical connection, cable 2 m, EMC emission, EN 61000-6-3: 2011, EMC immunity, EN 61000-6-1: 2007, measuring range pressure, 0...1 bar, process connection, G1/4", Residual error linearity/hysteresis, <±0.4% FS, protection class, IP65, Power supply, 12...36 V DC/ 5 mA, temperature coefficient, TCO < ±0.015 % FS / K ; TCG < ±0.010 % FS / K, material housing, stainless steel 1.4305, material, sensor: ceramic measuring cell

Product type: Pressure transducer

Type: 0550 1192-002

Connector: Cable

Cable length: 2 m

Model: Relative pressure

Outputs: Voltage (analogue)

Output signal (min.): 0 V

Output signal (max.): 10 V

Accuracy: 0.4 %

Pressure reading range (min.): 0 bar

Pressure reading range (max.): 1 bar

Pressure reading range: 0 bar up to 1 bar

Min. operating voltage: 12 V DC

Max. operating voltage: 36 V DC

Operating voltage: 12 - 36 V DC

Operating current: 5 mA

Burst load: 5 bar

: IP65

Min. temperature: -20 °C

Max. temperature: 80 °C

RoHS-compliant: Yes

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3089353 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1192-002 0 bar up to 1 bar Cable

User & Safety Instructions

User & Safety Instructions 3089353 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1192-002 0 bar up to 1 bar Cable

Description

The pressure sensors with 2m connection cable are Ideal suitable for measuring static and dynamic relative pressures in liquids or gases.

This text is machine translated.

Description

The pressure sensors with 2m connection cable are Ideal suitable for measuring static and dynamic relative pressures in liquids or gases.
