Name: B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 2291-006 0 bar up to 50 bar ISO 4400 square connector
Brand: B + B Thermo-Technik
SKU: 3089356
Availability: InStock

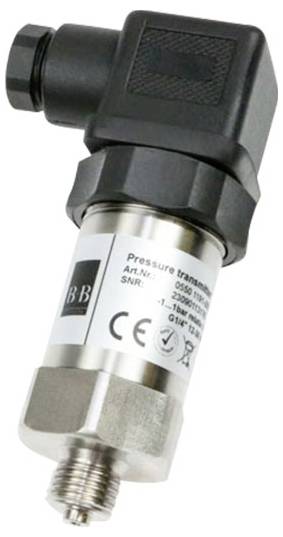

Pressure transmitter with black right-angle connector and threaded metal sensor body, shown isolated on a white background.

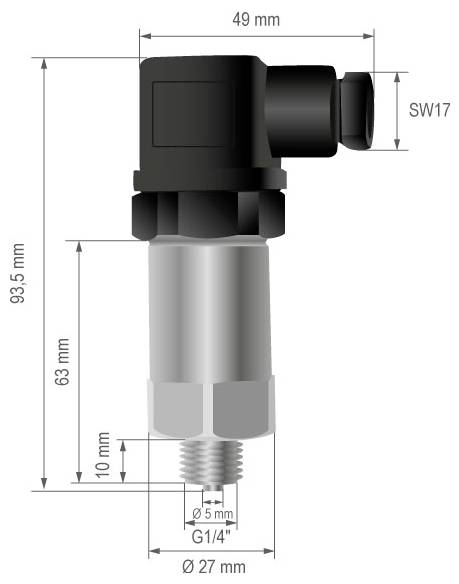

Dimensioned technical drawing of a right-angle fitting with body measurements labeled 93.5 mm tall, 49 mm long, 27 mm diameter, G1/4 threaded end, and SW17 hex size.

1/2

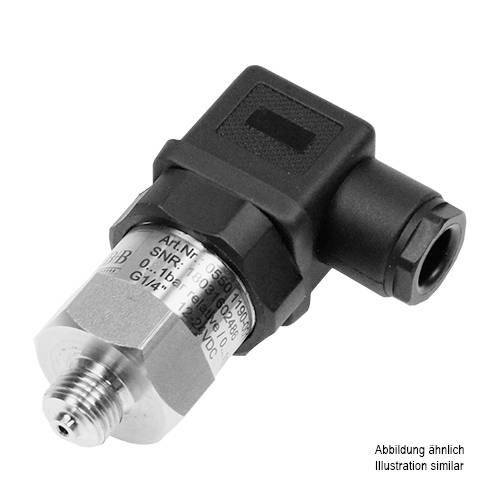

Image similar

Product type

Pressure transducer

Connector

ISO 4400 square connector

Model

Absolute pressure

Pressure reading range (max.)

50 bar

Max. operating voltage

24 V DC

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 164.99 / piece)

€ 164.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Pressure transmitter with DIN-Square connector

High-quality stainless steel housing; very sturdy construction

Technical specifications

Output signal, 4...20 mA, burst pressure, 180 bar, designation, Pressure transmitter stainless steel, pressure measuring mode, absolute pressure, operating temperature, -20...+80 °C, Electrical connection, 4-pin industrial plug, DIN 43650, EMC emission, EN 61000-6-3: 2011, EMC immunity, EN 61000-6-1: 2007, pressure measuring range, 0...50 bar, process connection, G1/4", residual error linearity/hysteresis, <±0.4% FS, protection class, IP65, power supply, 12...24 V AC/DC, temperature coefficient, TCO < ±0.015 % FS < /K; TCG ±0.010 % FS/K, material housing, stainless steel 1.4305, material, sensor: ceramic measuring cell

Product type: Pressure transducer

Type: 0550 2291-006

Connector: ISO 4400 square connector

Model: Absolute pressure

Outputs: Current (analogue)

Output signal (min.): 4 mA

Output signal (max.): 20 mA

Accuracy: 0.4 %

Pressure reading range (min.): 0 bar

Pressure reading range (max.): 50 bar

Pressure reading range: 0 bar up to 50 bar

Min. operating voltage: 12 V DC

Max. operating voltage: 24 V DC

Operating voltage: 12 - 24 V DC

Burst load: 180 bar

: IP65

Min. temperature: -20 °C

Max. temperature: 80 °C

RoHS-compliant: Yes

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3089356 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 2291-006 0 bar up to 50 bar ISO 4400 square connector

User & Safety Instructions

User & Safety Instructions 3089356 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 2291-006 0 bar up to 50 bar ISO 4400 square connector

Description

The pressure sensors with Hirschmann plug are Ideal for measuring static and dynamic absolute pressures in liquids or gases.

This text is machine translated.

Description

The pressure sensors with Hirschmann plug are Ideal for measuring static and dynamic absolute pressures in liquids or gases.
