BAAS Built-in on-board power socket with spring-hinged lid Max. load capacity=16 A Compatible with (details) Standard an
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 8.39
3
5% = € 0.43
€ 7.96
5
7% = € 0.60
€ 7.79
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 8.39 / piece)
€ 8.39
plus VAT.
Highlights & Details

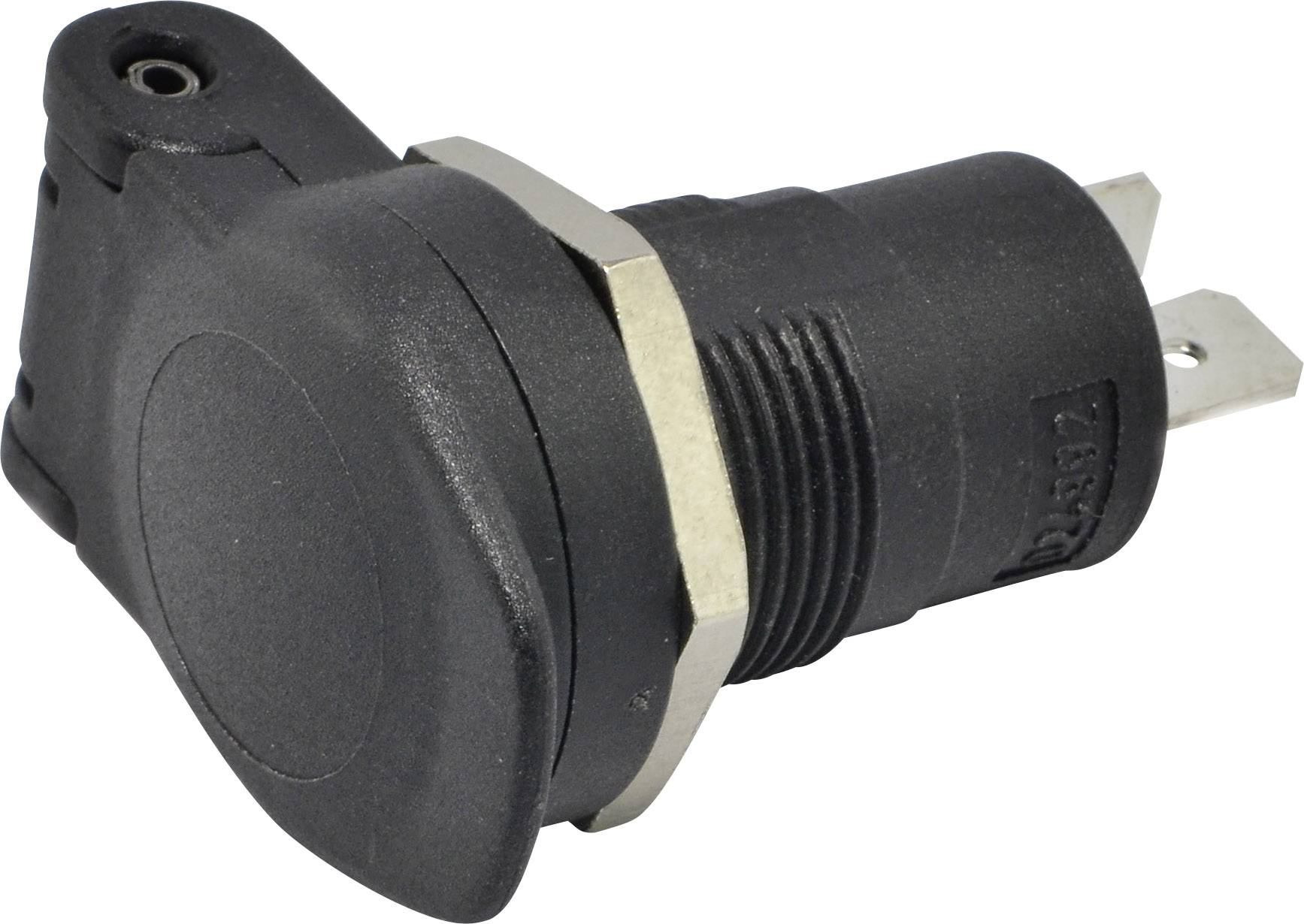

Built-in on-board power socket with spring-hinged lid
- Weathering-free plastic housing
- Spring-hinged lid
- Housing in OEM quality
Technical specifications
- Design type
Wall outlet
- Connection
6.3 mm blade terminal
- Operating voltage
12/24 V
- Max. load capacity
16 A
- Dim
(L x W x H) 42 x 31 x 36 mm
- Width
31 mm
- Height
36 mm
- Length
42 mm
- Compatible with (details)
Standard and universal plug
- Type
Standard outlet (DIN ISO 4165)
- Recess diameter (details)
18 mm
- Inside Ø
12 mm
- Max. length
42 m
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1490033 BAAS Built-in on-board power socket with spring-hinged lid Max. load capacity=16 A Compatible with (details) Standard an
Information
Information 1490033 BAAS Built-in on-board power socket with spring-hinged lid Max. load capacity=16 A Compatible with (details) Standard an
Description
A small built-in socket to DIN ISO 4165, in a 18 mm drill hole can be installed and with simple 6.3 mm female spade connector or solder connection to contact.
This text is machine translated.
This text is machine translated.
Features
- Spring-hinged lid
- Panel-mounted socket with ring nut
- Recording Cup for the inner contact snapped into
Scope of delivery
- Includes spring-hinged lid
- Ring nut
