Buy BAAS Startsystem BS20 Connector

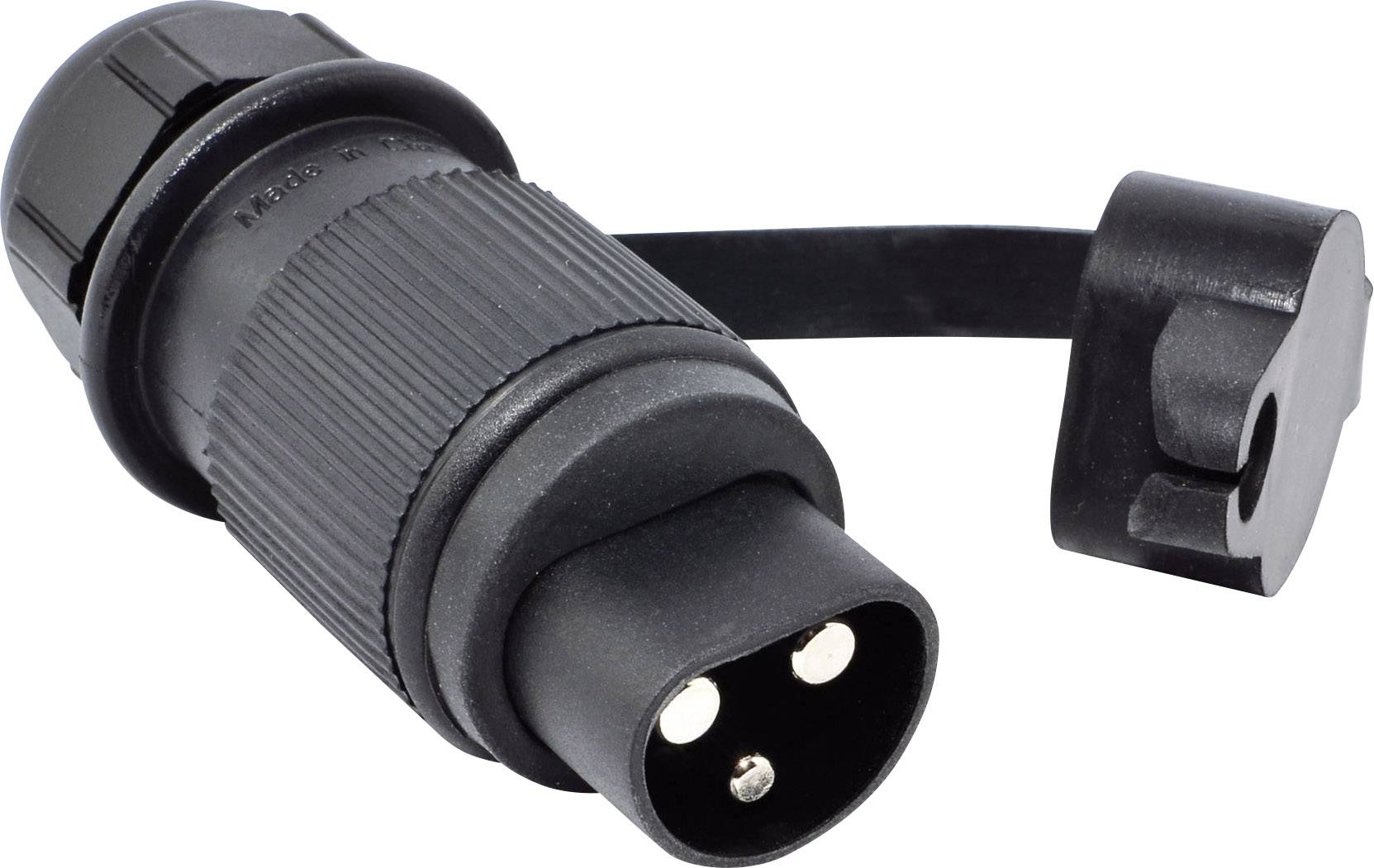

A black, three-pin electrical plug with a protective cover, attached to a cable.

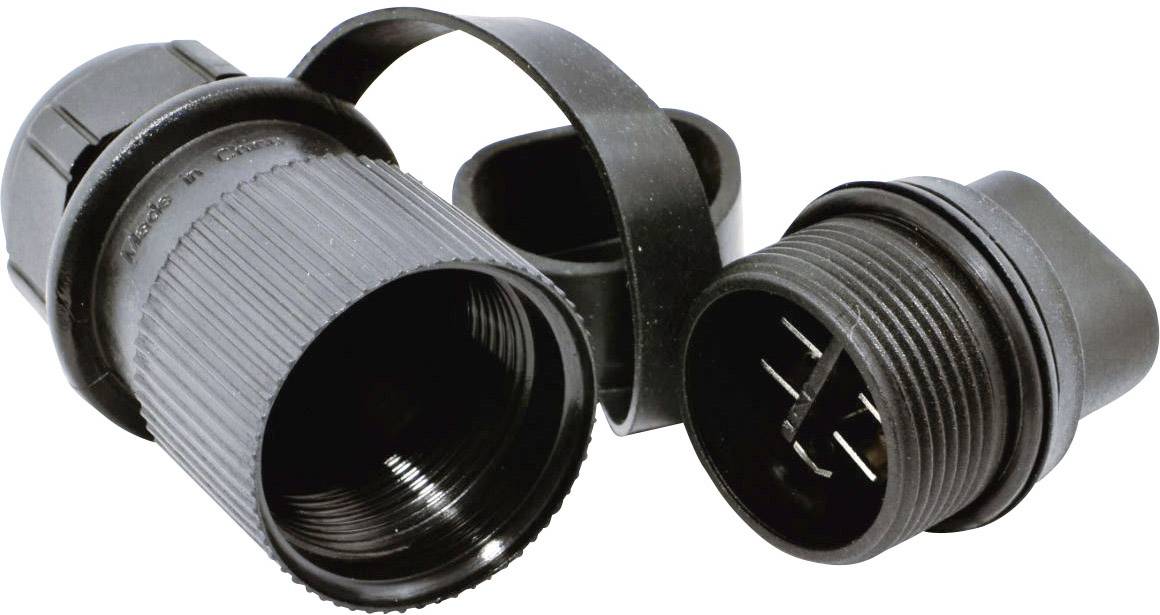

Two black connector plugs with protective caps, one open and one closed, display their ribbed surface.

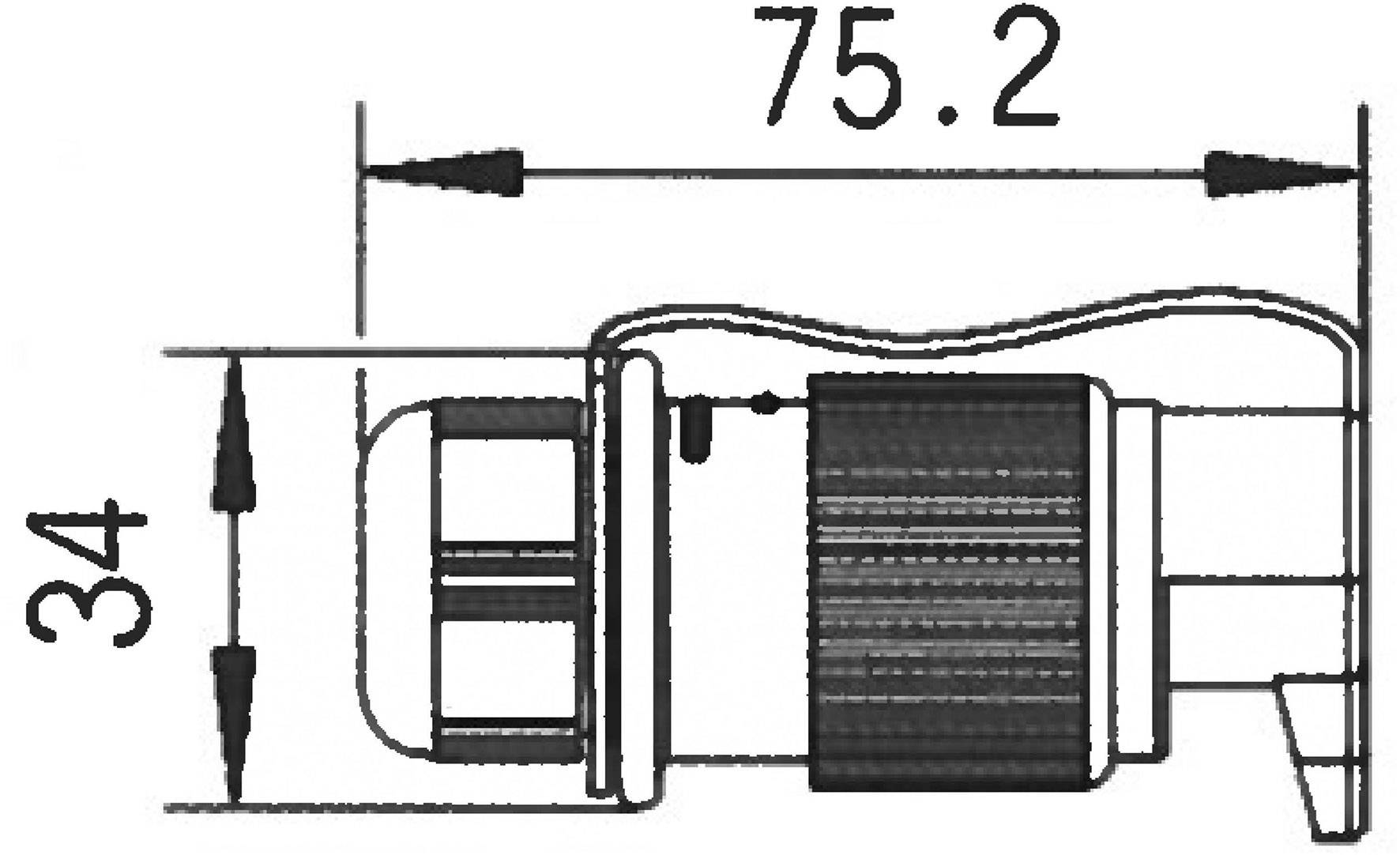

Technical drawing of a cylindrical component with dimensions: length 75.2 mm and height 34 mm, side view.

1/3

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

32 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 10.92 / piece)

€ 10.92

plus VAT.

Report legal concerns

Highlights & Details

Start System plug for free assembly.

Can be unscrewed
Flat bars for FLH 6.3 mm
Dust cap for plug-in head

Technical specifications

Suitable for START SYSTEM

Product type: Connector

Width: 34 mm

Height: 34 mm

Length: 75.2 mm

Documents & Downloads

Datasheet

Datasheet 1389667 BAAS Startsystem BS20 Connector

User & Safety Instructions

User & Safety Instructions 1389667 BAAS Startsystem BS20 Connector

Information

Information 1389667 BAAS Startsystem BS20 Connector

Description

A plug-in for free installation of accessories that in the start system board power socket BS10 or BS 11 is to be inserted. The cable contact is made via the plug-on of female spade connectors 6.3 or by soldering.

This text is machine translated.

Features

Plug to screw without tools
Bridge for plugging of 6.3 mm FLH or for soldering
Dust cap.

System requirements

Start System board socket
