Name: BeQuiet POWER ZONE 2 PC power supply unit 1200 W ATX 80 PLUS Platinum
Brand: BeQuiet
SKU: 3644625
Availability: InStock

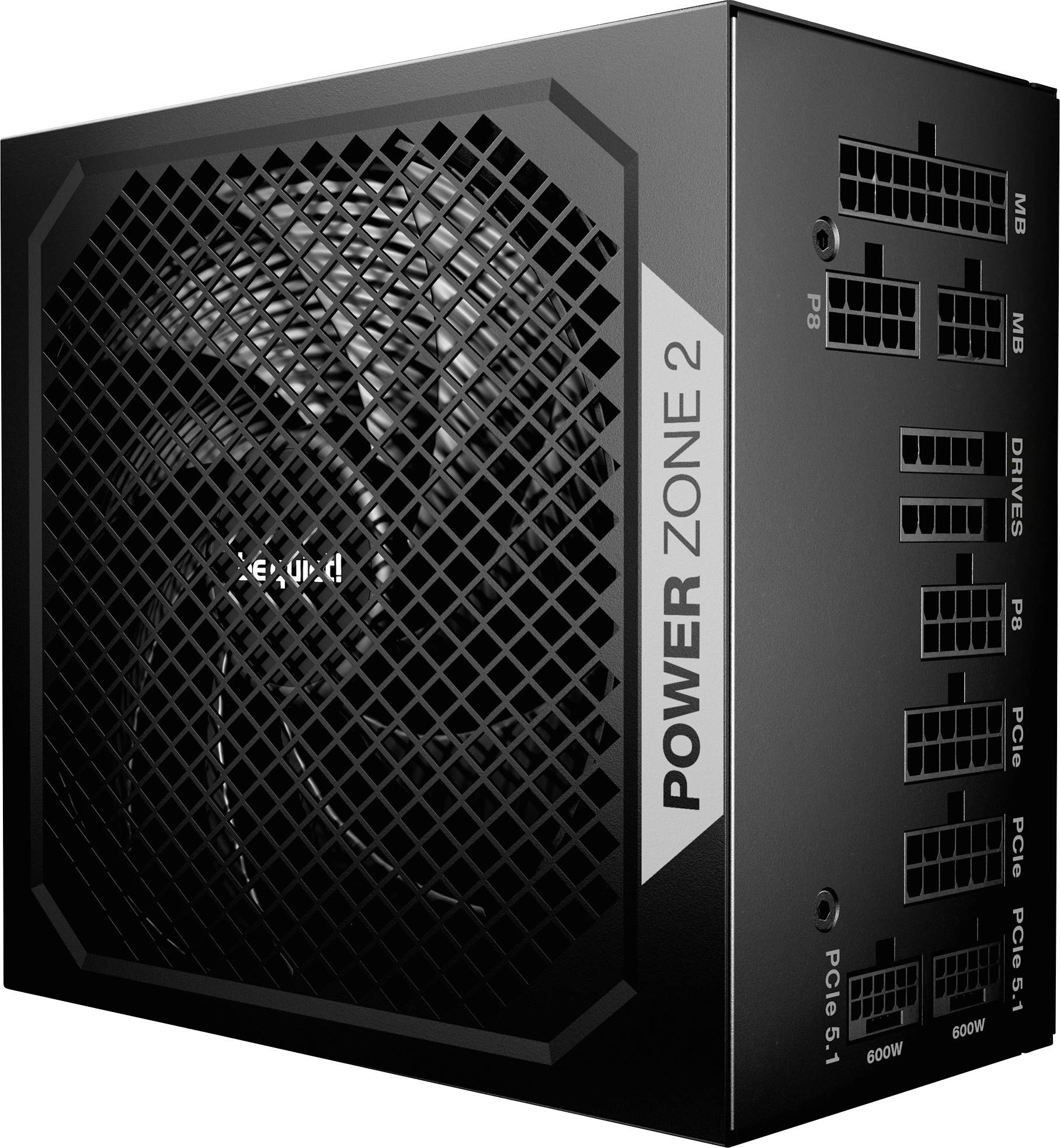

A black power supply unit labeled 'POWER ZONE 2' featuring multiple ports and a fan on the side.

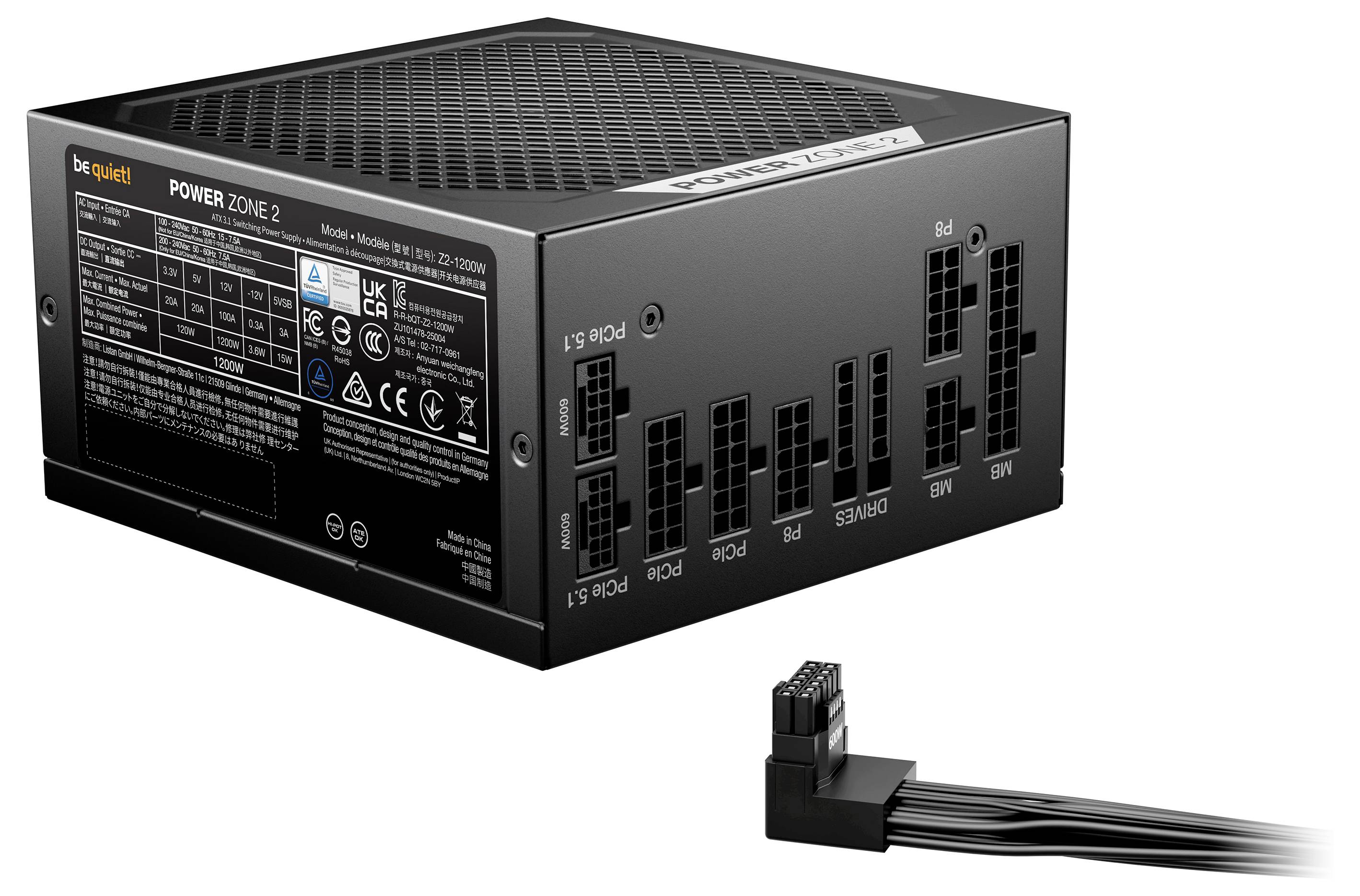

'Be Quiet! Power Zone 2' power supply unit with labeled ports for motherboard, CPU1, and peripheral connections, black cable shown.

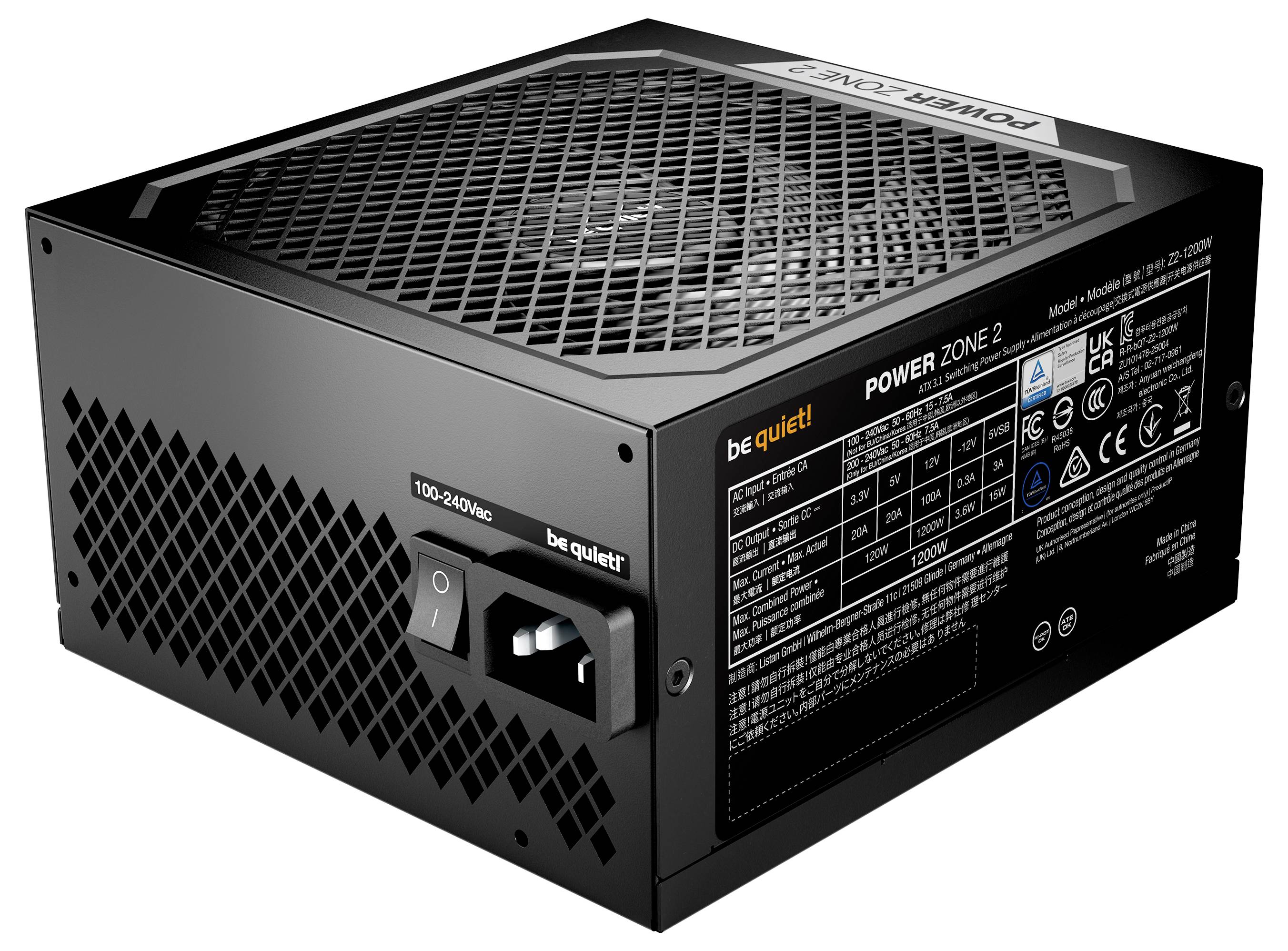

'Be Quiet! Power Zone 2' power supply unit, black, features a grid on top for ventilation, switch, and label with specifications on the side.

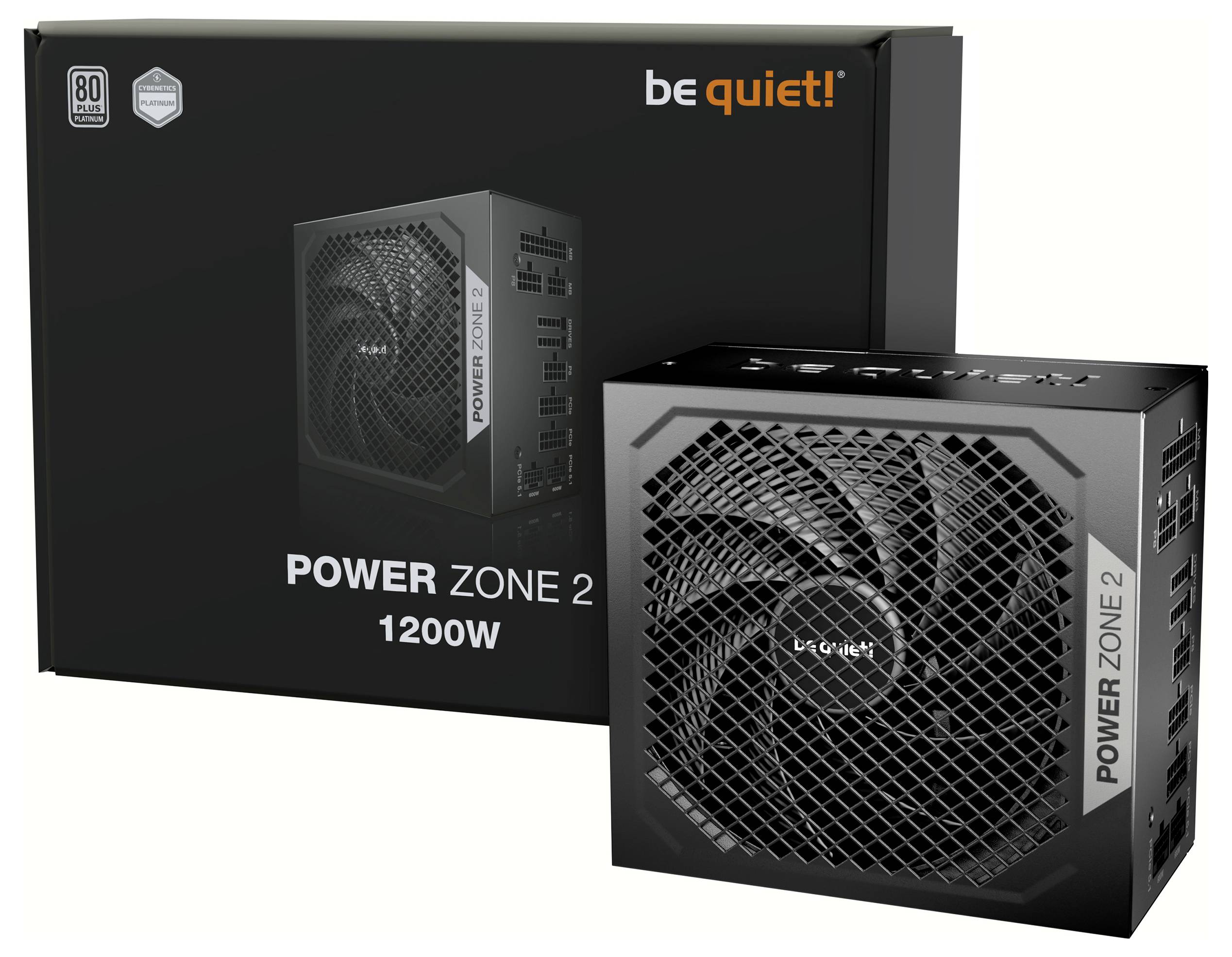

'be quiet! Power Zone 2 1200W' power supply unit in front of its packaging, showcasing a large fan and multiple connection ports.

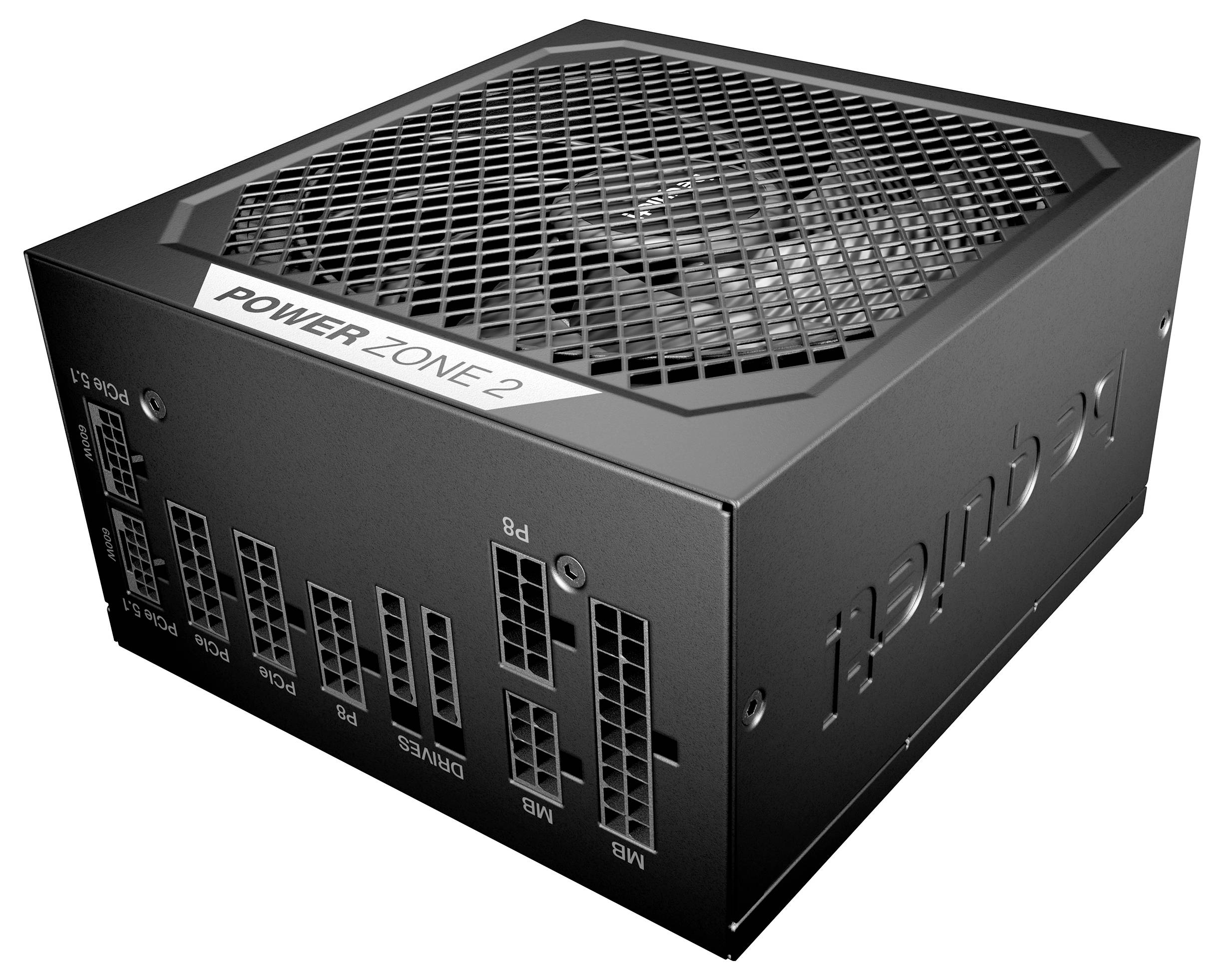

Black computer power supply unit labeled 'Power Zone 2' with various output ports on its side and a mesh cooling area on top.

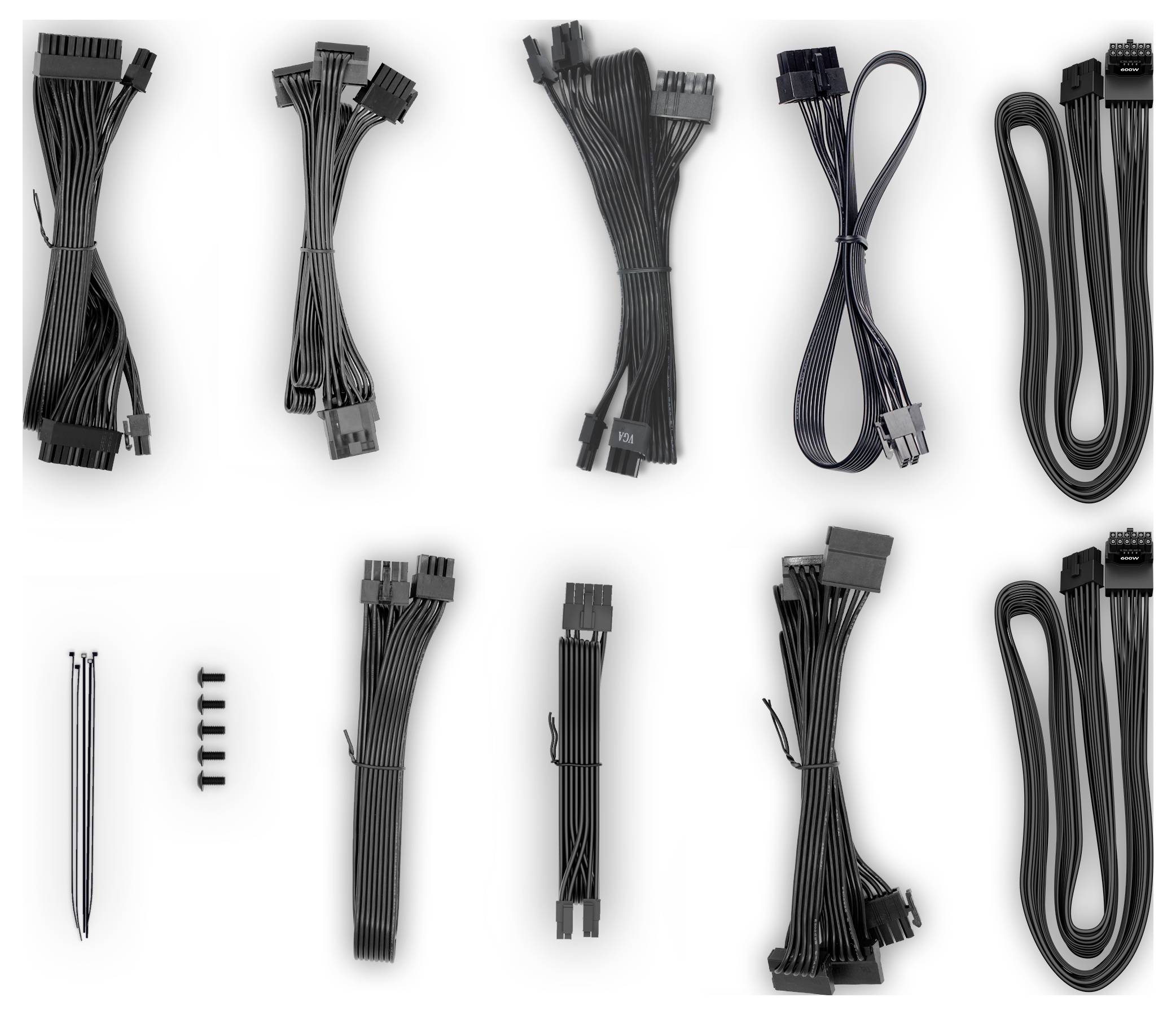

A set of black computer power supply cables and accessories arranged on a white background, showing a variety of connectors and lengths.

1/6

Product type

PC power supply unit

PSU output power

1200 W

Modular

Yes

Certification

80 PLUS Platinum

Form factor

ATX

Datasheet (PDF)

Fast track dispatch on Fri 23 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 234.99 / piece)

€ 234.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

BeQuiet POWER ZONE 2 PC power supply unit

Power supply unit output 1200 W
PCI-Express (6+2-Pin) 3x
Cable management Yes
80 PLUS Platinum

Technical specifications

Number of SATA power cables: 2
80 Plus certification: 80 PLUS Platinum
Fan diameter 14 cm
Number of fans: 1 fans
Conformity of Waste Electrical and Electronic Equipment (WEEE): Yes

Product type: PC power supply unit

PSU output power: 1200 W

Modular: Yes

Certification: 80 PLUS Platinum

Form factor: ATX

Factory colour: Black

Dim: (W x H x D) 150 x 86 x 160 mm

Depth: 160 mm

Height: 86 mm

Width: 150 mm

Weight: 1.88 kg

-12V / DC: 0.3 A

+12 V/DC (1): 100 A

5 V DC: 20 A

+5V / DC SB: 3 A

8-pin 12 V: 1

20+4-pin.: 1

4-pin Molex: 1

4+4 pin ATX/EPS 12V: 1

6-pin PCIe: 3

5-pin SATA: 7

Features: ATX 3.1

Power rating: 751 W -

Cooling: Active

Fan size: 140 mm

Max. operating noise: 25.5 dB

3.3V DC: 20 A

Power supply (details): 100 - 240 V

UKCA: yes

Screws included: yes

Operating temperature (T-T): 0 - 40 °C

Storage relative humidity (H-H): 0 - 95 %

Peak power: 1270 W

Maximum input current (@110V): 15 A

Maximum input current (@220V): 7.5 A

Shipping (inner) case width: 26.5 cm

Shipping (inner) case length: 43 cm

Shipping (inner) case height: 34 cm

Shipping (inner) case gross weight: 14.9 kg

Products per shipping (inner) case: 4 Stück(e)

Motherboard power cable length: 60 cm

CPU power cable length: 70 cm

PCI Express power cable length: 60 cm

Cable ties included: yes

Manual: yes

PCI Express power connectors (12-pin): 2

Number of +12V rail(s): 1

Mean time between failures (MTBF): 100000 h

Efficiency: 92.7 %

Hold time: 20.42 ms

On/off switch: yes

Operating relative humidity (H-H): 0 - 85 %

EPS power connector (8-pin): yes

CPU power connector (4+4 pin): yes

Power factor: 0.97

Storage temperature (T-T): -40 - 70 °C

Package weight: 3.5 kg

CPU P4 connector (4-pin): 1

Fan speed: 0 - 2100 RPM

Combined power (+3.3V): 120 W

Combined power (+12V): 1200 W

Combined power (+5V): 120 W

Combined power (-12V): 6 W

Combined power (+5Vsb): 15 W

Documents & Downloads

Datasheet

Datasheet 3644625 BeQuiet POWER ZONE 2 PC power supply unit 1200 W ATX 80 PLUS Platinum

User & Safety Instructions

User & Safety Instructions 3644625 BeQuiet POWER ZONE 2 PC power supply unit 1200 W ATX 80 PLUS Platinum

Description

The Power Zone 2 1200W is a 80 PLUS® Platinum-certified power supply and semi-passive zero RPM cooling for efficient and quiet gaming sessions. Two 12V-2x6-cables with 90° connection included in delivery and PCIe 5.1/ATX 3.1-compatibility supports the Power zone 2 the latest graphics cards and is a reliable investment for the future.
