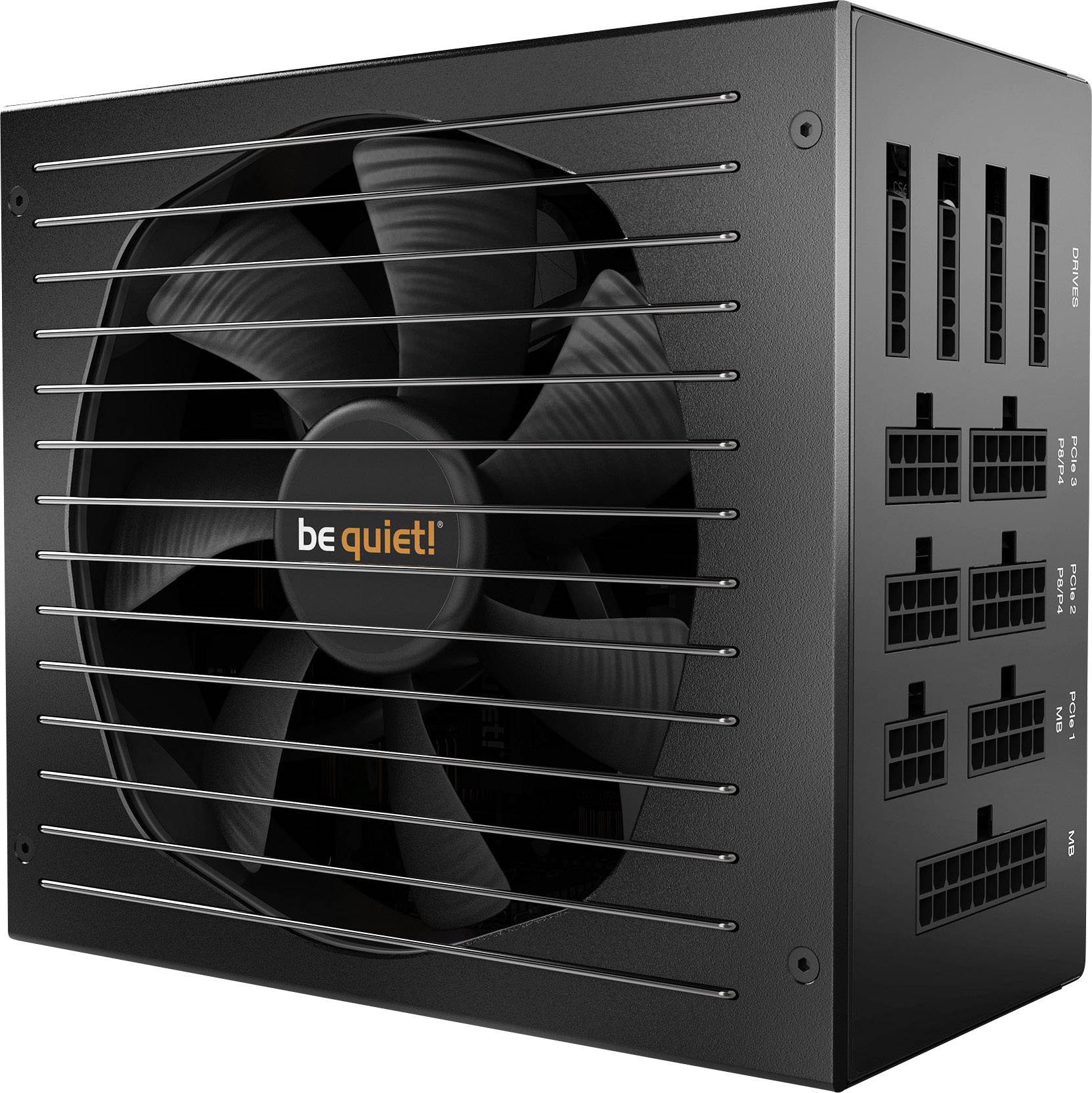

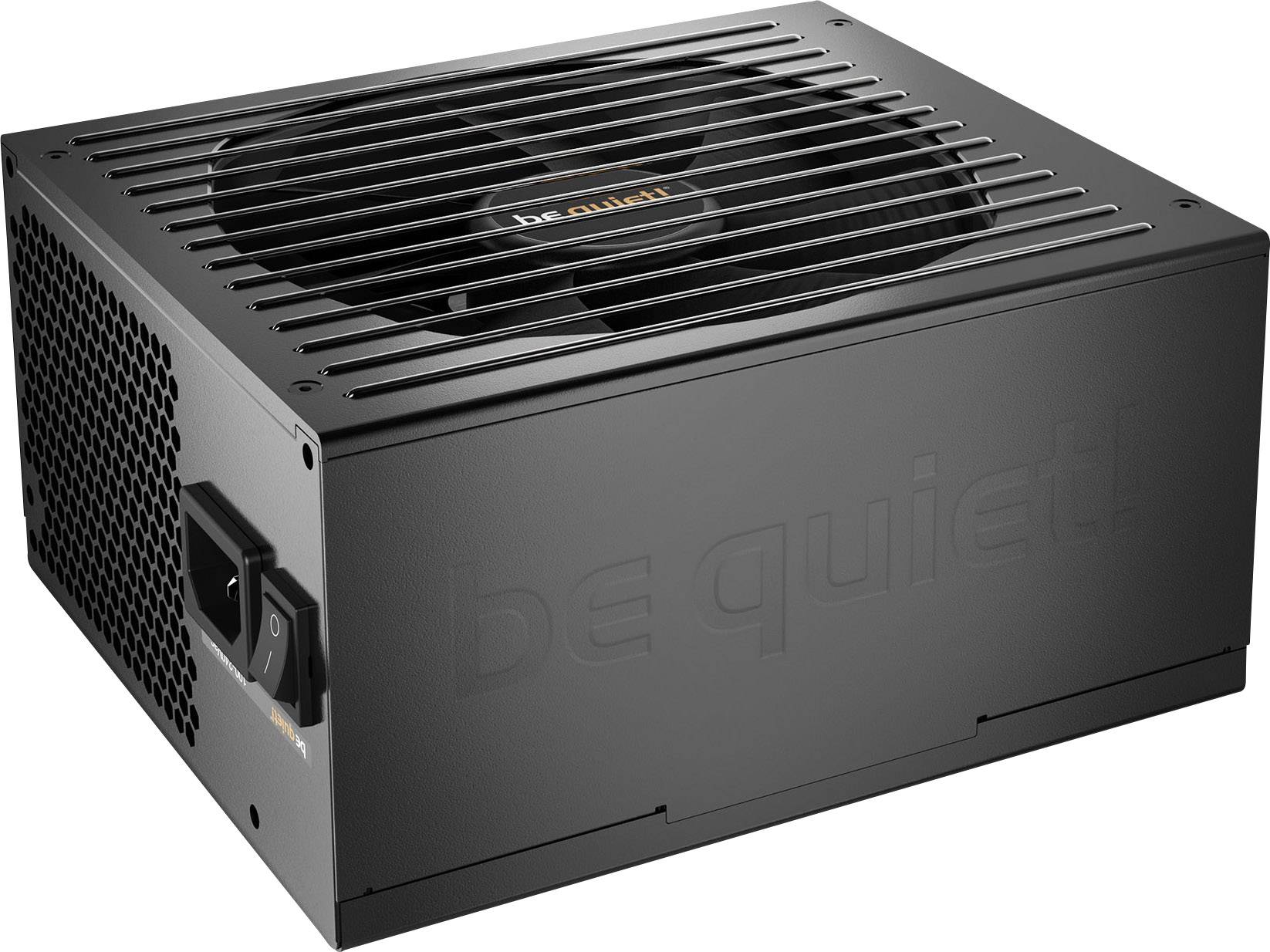

BeQuiet Straight Power 11 PC power supply unit 750 W ATX 80 PLUS Gold
Product type
PC power supply unit
PSU output power
750 W
Modular
Yes
Certification
80 PLUS Gold
Form factor
ATX
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 144.99 / piece)
€ 144.99
incl. VAT
14-day return policy included
Highlights & Details

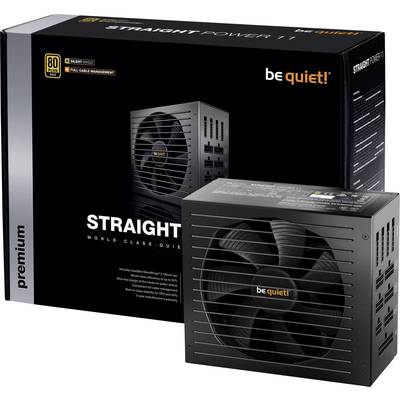

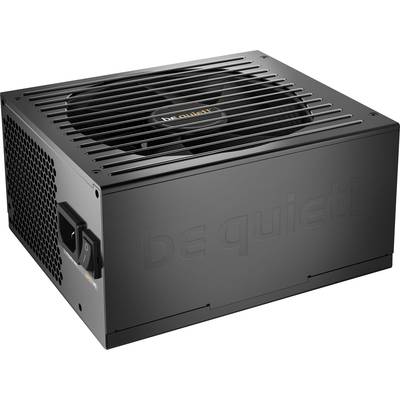

BeQuiet Straight Power 11 PC power supply unit
- Power supply unit output 750 W
- PCI-Express (6+2-Pin) 4x
- Cable management Yes
- 80 PLUS Gold
Technical specifications
- Product type
PC power supply unit
- PSU output power
750 W
- Modular
Yes
- Certification
80 PLUS Gold
- Form factor
ATX
- Dim
(W x H x D) 170 x 86 x 150 mm
- Depth
150 mm
- Height
86 mm
- Width
170 mm
- Weight
1.78 kg
- -12V / DC
0.5 A
- +12 V/DC (1)
20 A
- +12V DC (2)
20 A
- 12V / DC (3)
24 A
- +12V / DC (4)
24 A
- 5 V DC
25 A
- +5V / DC SB
3 A
- 8-pin 12 V
1
- 20+4-pin.
1
- 4-pin floppy
1
- 4-pin Molex
4
- 4+4 pin ATX/EPS 12V
1
- 6-pin PCIe
4
- 5-pin SATA
11
- Output rating > 700 W
750 W
- Power rating
501 - 750 W
- 3.3V DC
25 A
- Operating voltage
100 - 240 V / AC
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1642672 BeQuiet Straight Power 11 PC power supply unit 750 W ATX 80 PLUS Gold
User & Safety Instructions
User & Safety Instructions 1642672 BeQuiet Straight Power 11 PC power supply unit 750 W ATX 80 PLUS Gold
Warranty Terms
Warranty Terms 1642672 BeQuiet Straight Power 11 PC power supply unit 750 W ATX 80 PLUS Gold
Description
Quiet, efficient - world-class
The be quiet! Straight Power 11 750 W sets new standards for ultra-quiet systems, without the slightest compromise with the power supply. It is definitely the best choice among the premium power supplies and convinces with many high-quality features, such as:

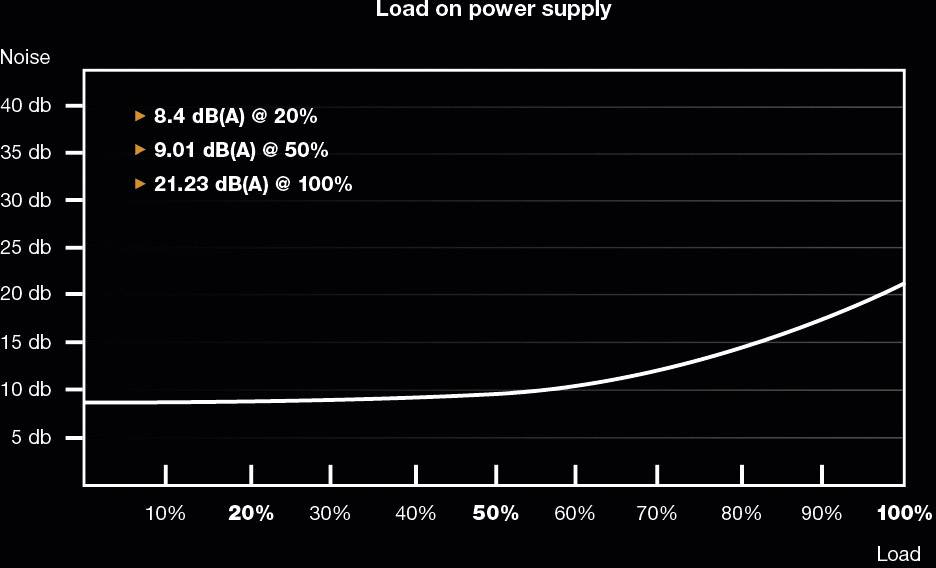

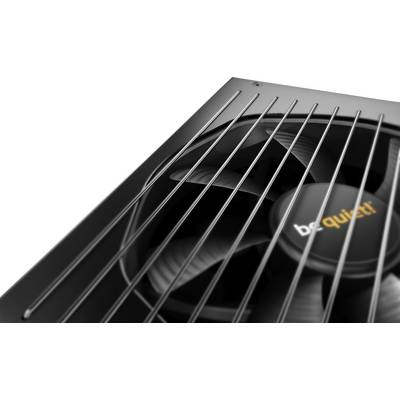

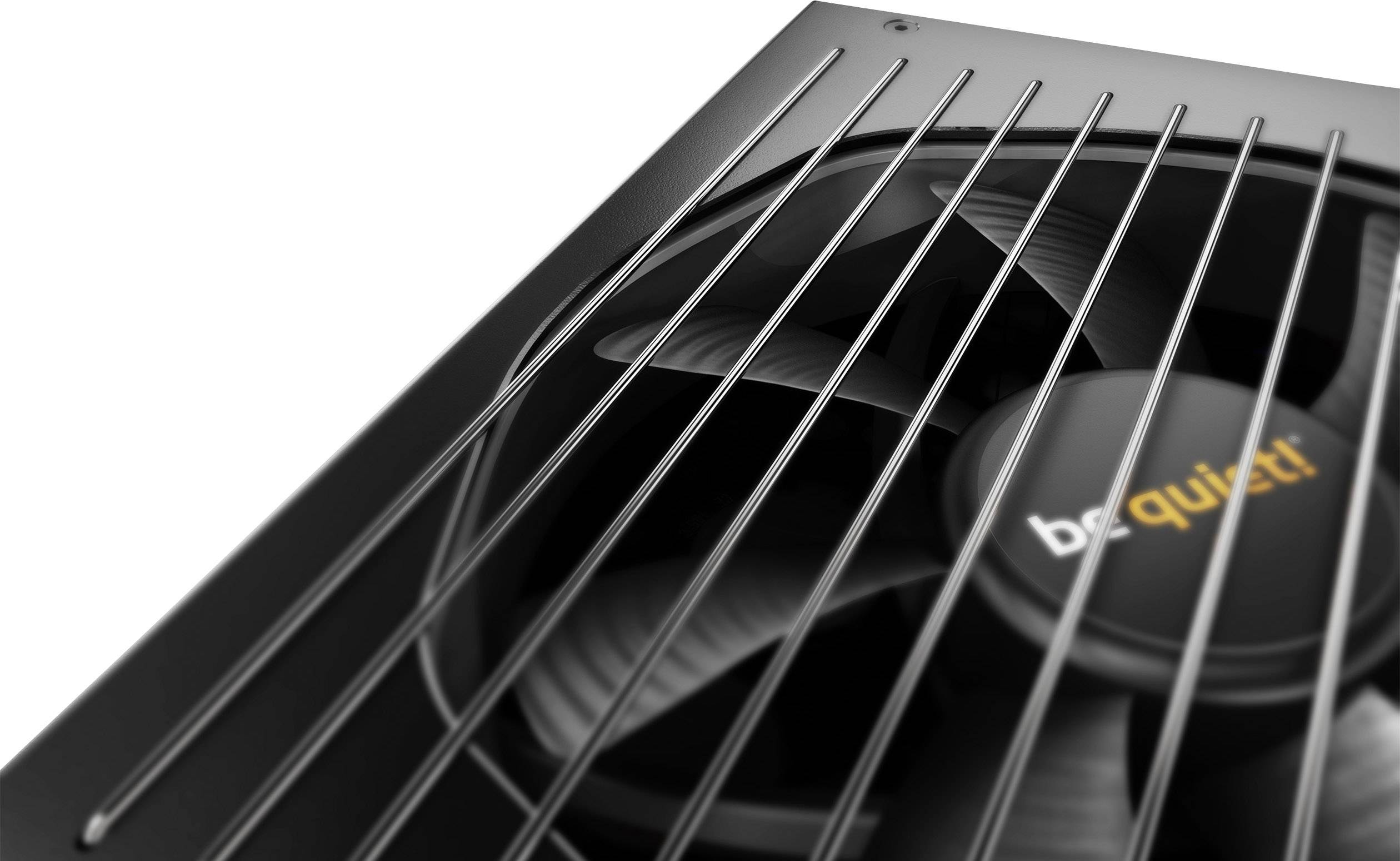

Equipped with a virtually undetectable Silent Wings ® 3 135 mm fan
Funnel-shaped air inlet on the power supply case increases the air flow

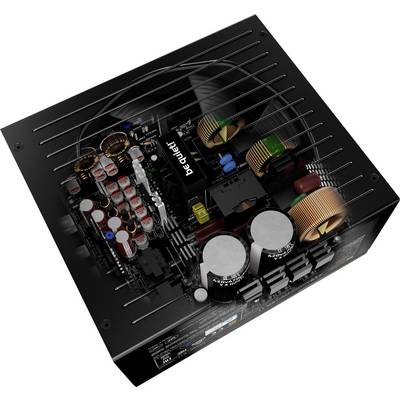

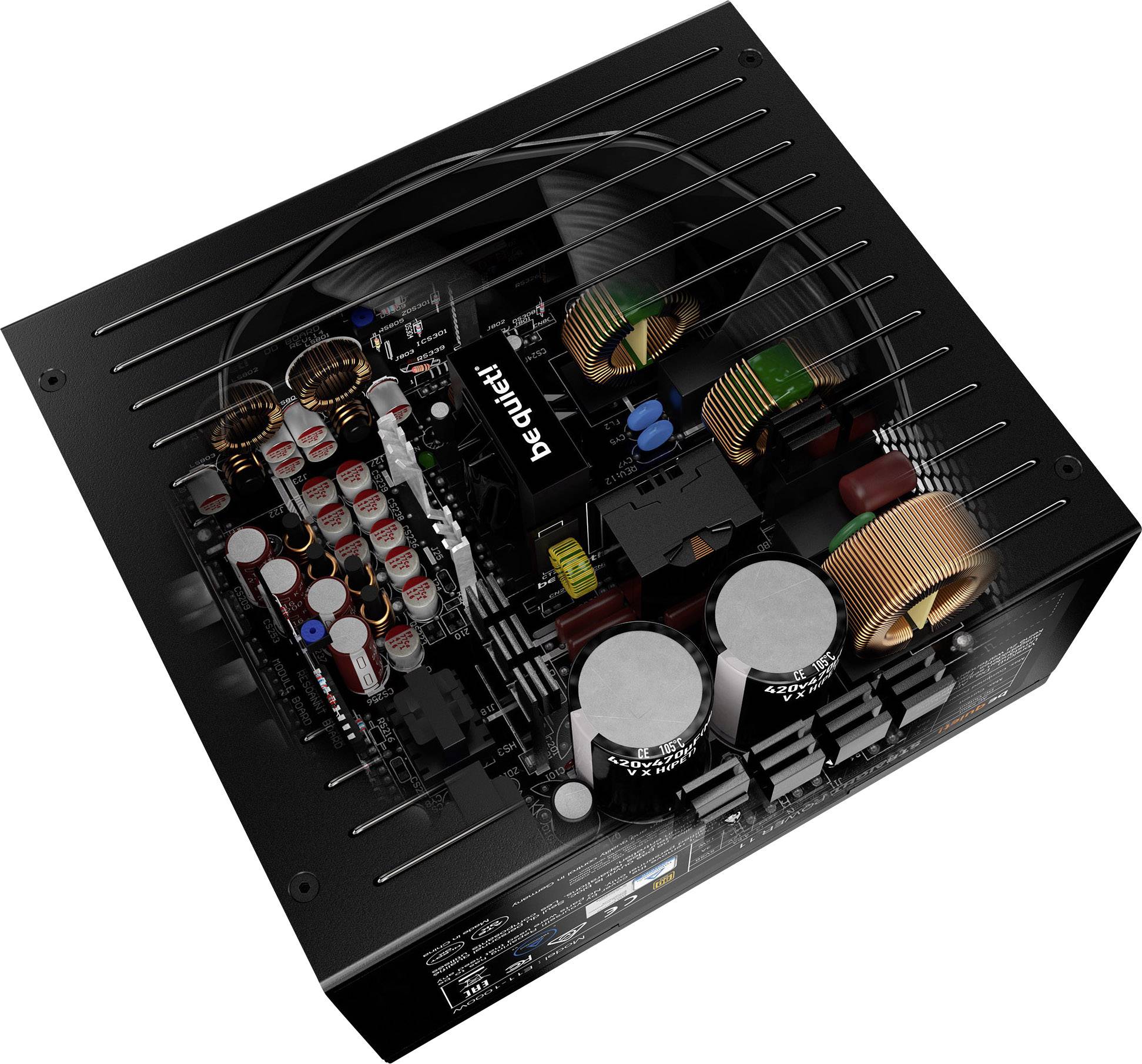

Loose cable design in the power supply on the DC side increases cooling and longevity of the components

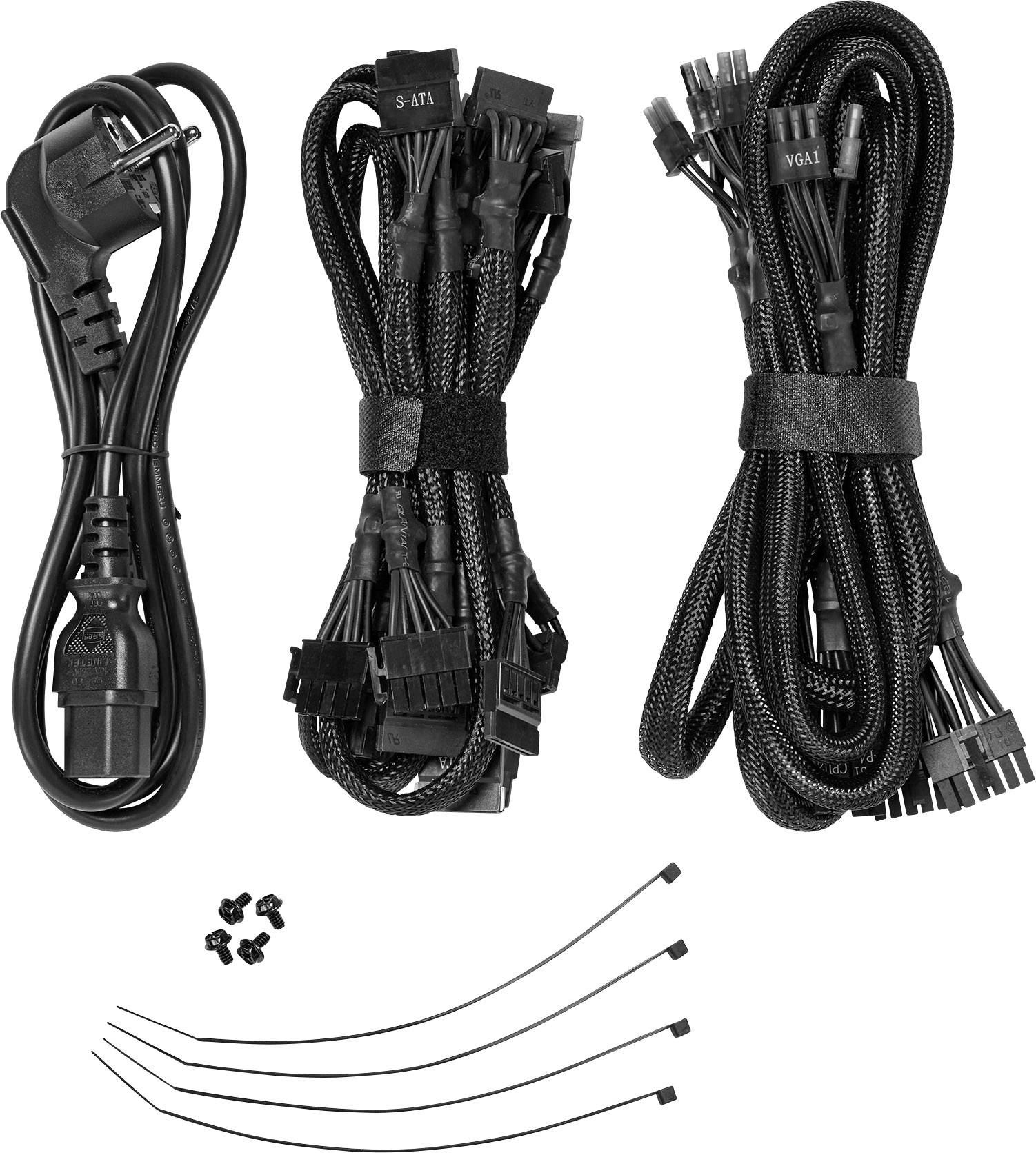

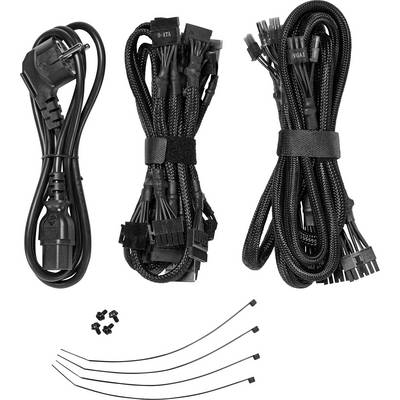

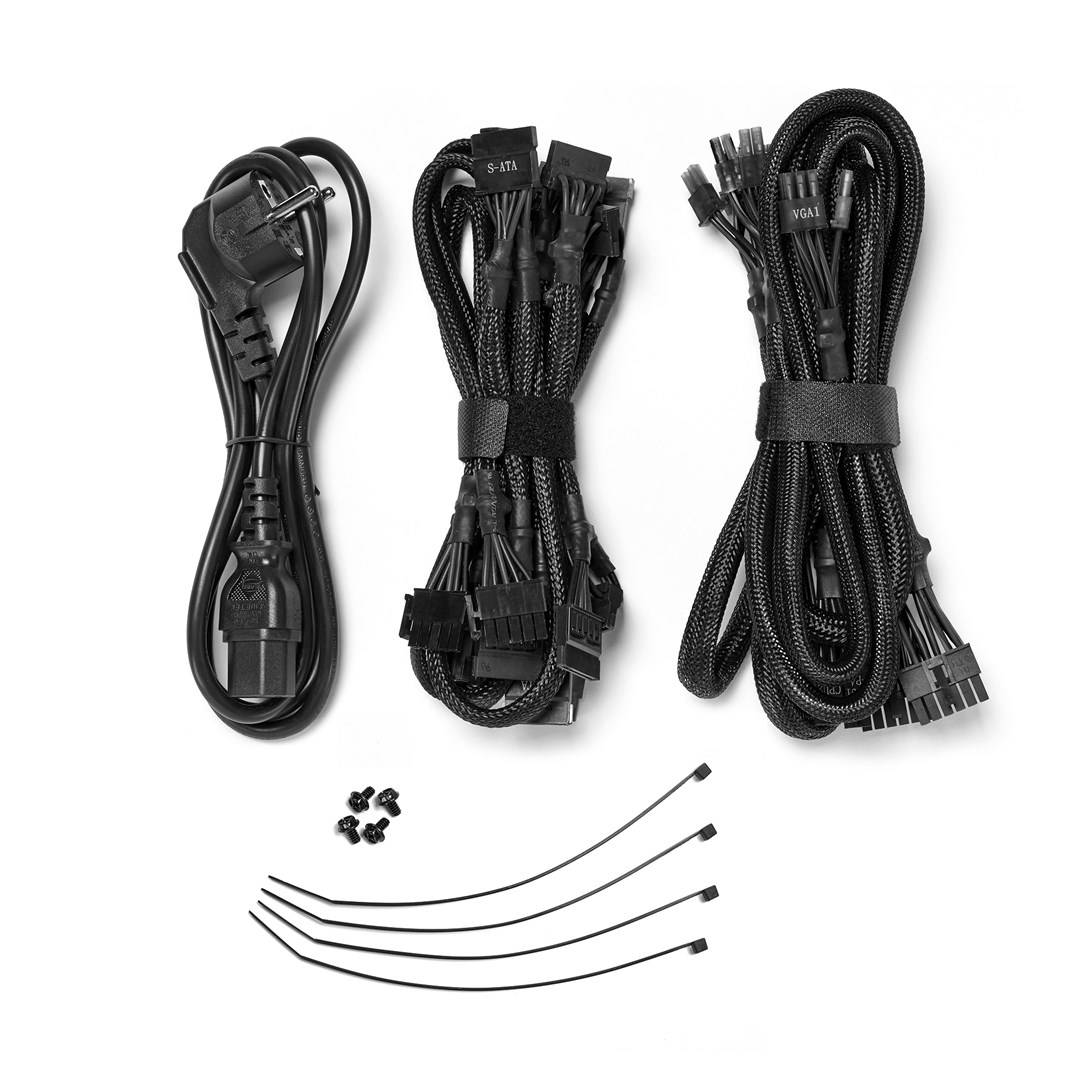

Comfortable fully modular cable management provides for maximum flexibility and easy handling
80 PLUS Gold certification with an efficiency of up to 93%
Increased voltage control and stability thanks to advanced LLC, SR and DC/DC technology
Four high-performance 12 V cables
Two PCI-Express connectors for high-performance multi-GPU systems
Stable and reliable, to temperatures up to 105 °C rated Japanese capacitors
Meets the ErP and Energy Star 6.1 guidelines
Product conception, design and quality control in Germany
This text is machine translated.
The be quiet! Straight Power 11 750 W sets new standards for ultra-quiet systems, without the slightest compromise with the power supply. It is definitely the best choice among the premium power supplies and convinces with many high-quality features, such as:
Equipped with a virtually undetectable Silent Wings ® 3 135 mm fan
Funnel-shaped air inlet on the power supply case increases the air flow
Loose cable design in the power supply on the DC side increases cooling and longevity of the components
Comfortable fully modular cable management provides for maximum flexibility and easy handling
80 PLUS Gold certification with an efficiency of up to 93%
Increased voltage control and stability thanks to advanced LLC, SR and DC/DC technology
Four high-performance 12 V cables
Two PCI-Express connectors for high-performance multi-GPU systems
Stable and reliable, to temperatures up to 105 °C rated Japanese capacitors
Meets the ErP and Energy Star 6.1 guidelines
Product conception, design and quality control in Germany
This text is machine translated.
