Berger & Schröter 10869 Universal block and tackle Load capacity (without pulley) 300 kg
EAN:
Part number:
Item no:
Number
Total (€ 67.22 / piece)
€ 67.22
plus VAT.
Technical specifications
- Product type
Universal block and tackle
- Load capacity (without pulley)
300 kg
- Rope length
22 m
- Lifting height (w/o pulley)
2500 mm
- Width
20 cm
- Height
6 cm
- Length
30 cm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3442309 Berger & Schröter 10869 Universal block and tackle Load capacity (without pulley) 300 kg
Description

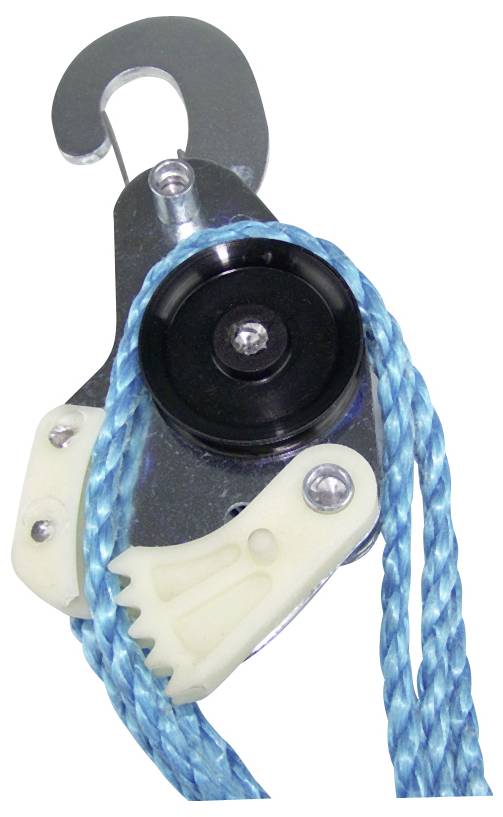

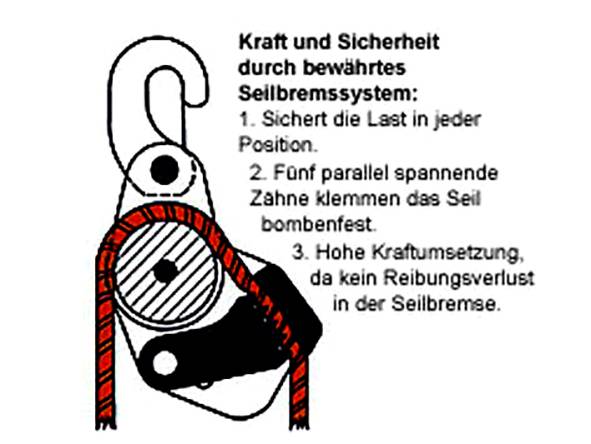

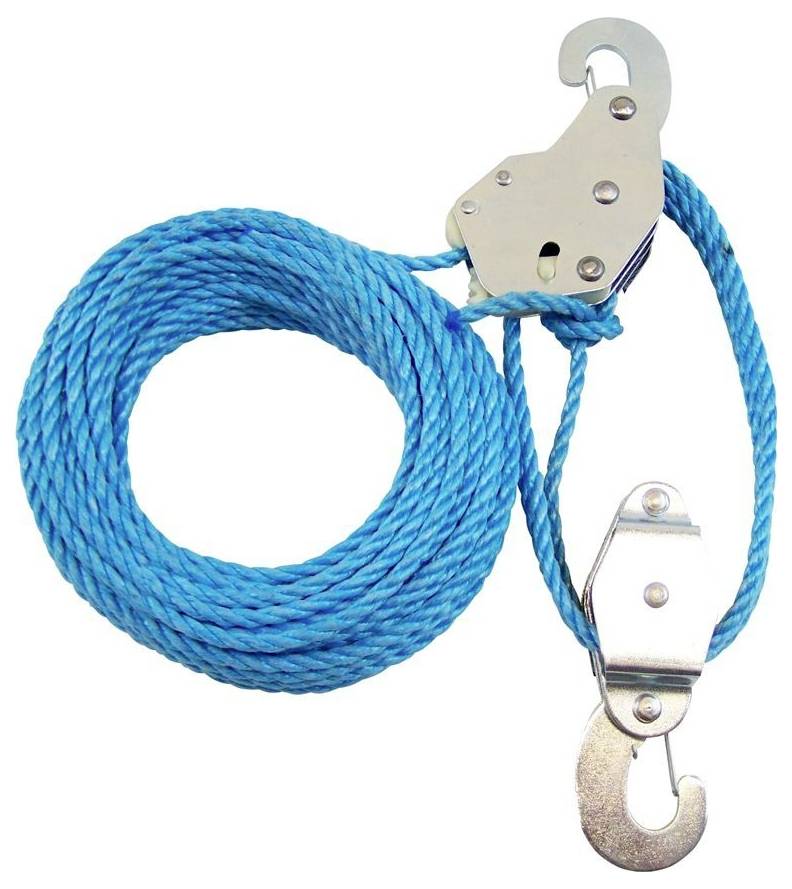

Universal bottle block with brake, secures the load at every height, high power conversion - no friction loss through the rope brake, 8 casters made of polyamide (transmission 8:1), approx. 22 m polypropylene rope, lifting height approx. 2.5 m, height approx. 300 mm, breaking load approx. 1000 kg, payload 300 kg
High security: Controlled break load through
Independent institute VPA in Remscheid
This text is machine translated.
High security: Controlled break load through
Independent institute VPA in Remscheid
This text is machine translated.
