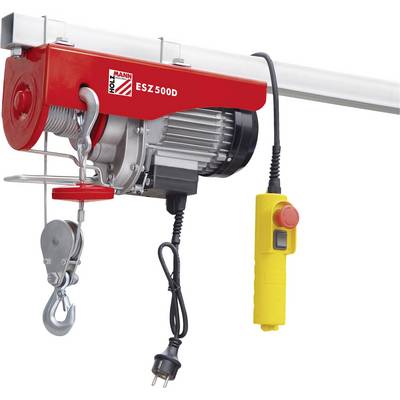

Holzmann Maschinen ESZ500D_230V Electric block and tackle Load capacity (incl. pulley) 500 kg Load capacity (without pul
EAN:
Part number:
Item no:
Number
Total (€ 126.04 / piece)
€ 126.04
plus VAT.
Only 8 Piece(s) available
Highlights & Details
Electrical cable
- Long Control cable
- Powder-coated steel
- Die-cast aluminum engine and transmission housing
Technical specifications
- Load capacity: max. 250 kg at max. 12 m, max 500 kg at up to 6 m.
- Product type
Electric block and tackle
- Load capacity (without pulley)
250 kg
- Weight
17 kg
- Operating voltage
230 V
- Lifting height (incl. pulley)
6000 mm
- Lifting height (w/o pulley)
12000 mm
900 W
- Rope speed (incl. pulley)
4 m/min
- Rope speed (no pulley)
8 m/min
- Load capacity (incl. pulley)
500 kg
- Rope diameter
4.2 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1695473 Holzmann Maschinen ESZ500D_230V Electric block and tackle Load capacity (incl. pulley) 500 kg Load capacity (without pul
Description
Electrical cable, ideally suited for lifting and moving loads.
This text is machine translated.
This text is machine translated.
